Evinrude/Johnson - 1987 JOHNSON  5/6/8HP OUTBOARD





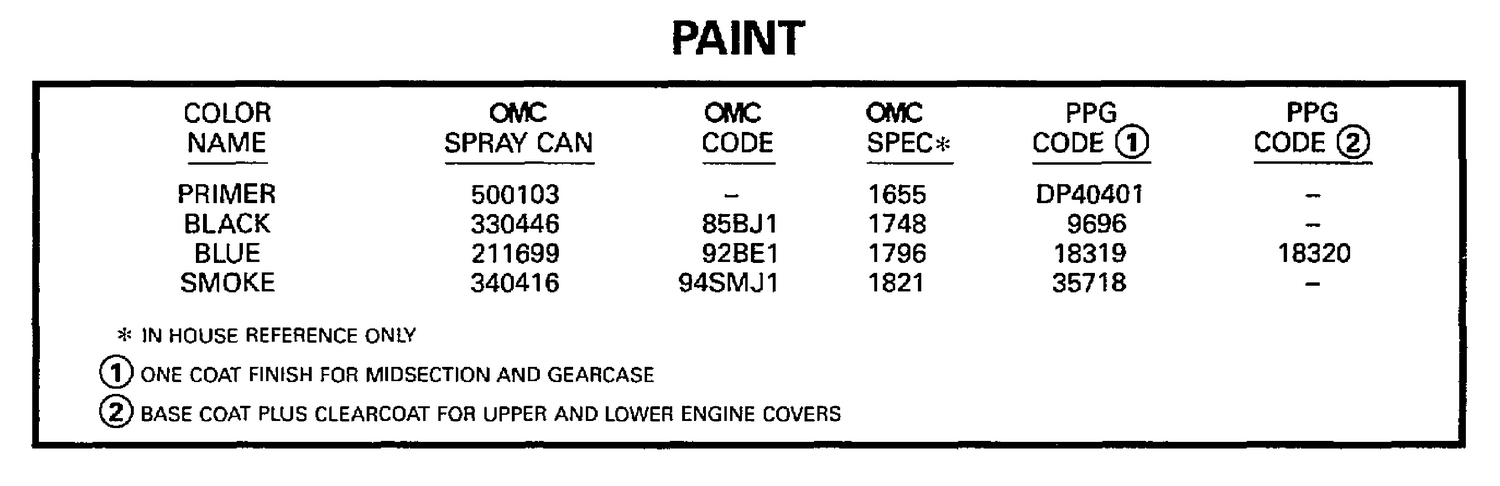

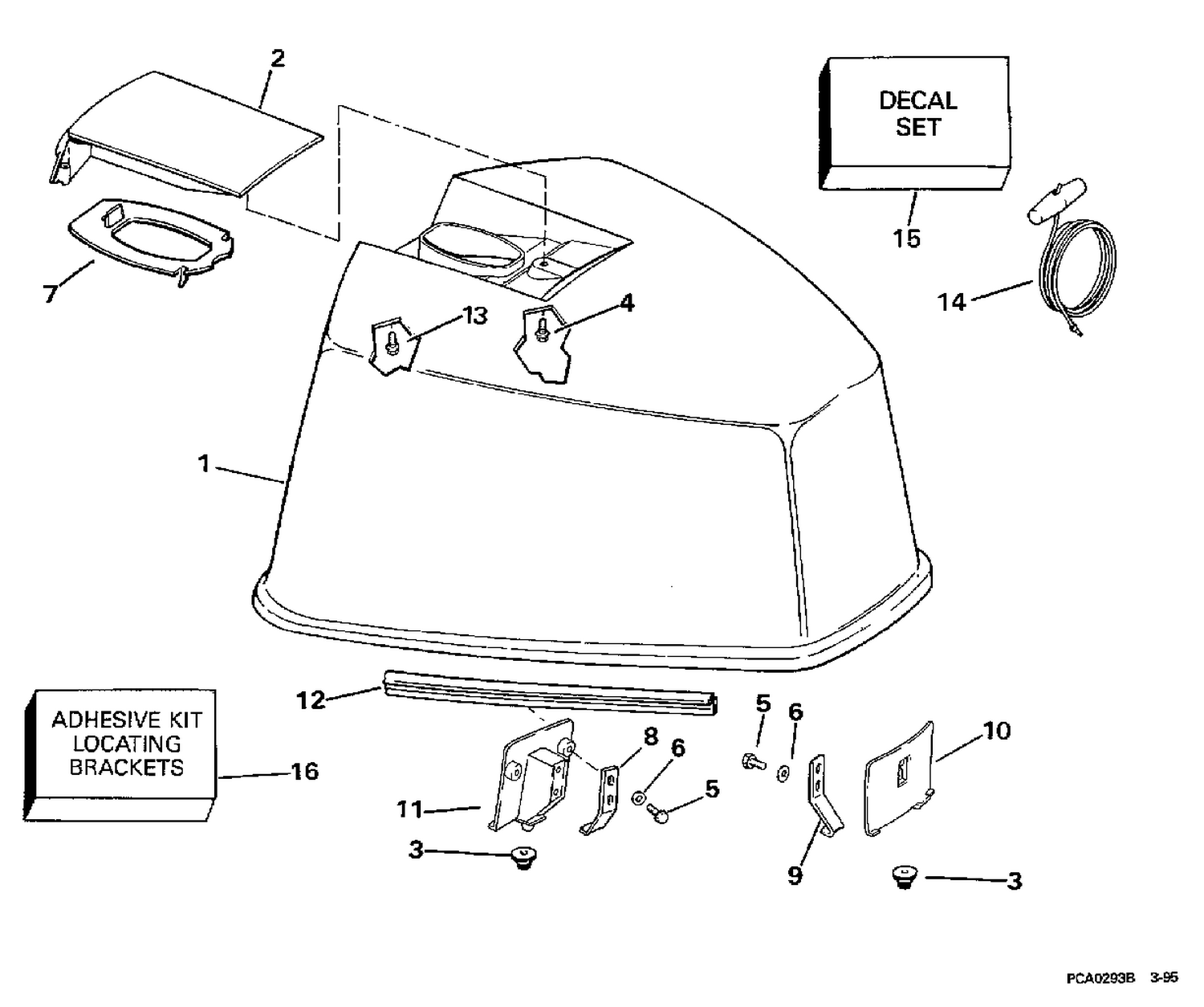

J8SRLCUD 1987 ENGINE COVER - JOHNSON Diagram

1) 0397424 ENGINE COV.ASSY., Johnson
1) 0397410 ENGINE COV.ASSY., Johnson
1) 0397411 ENGINE COV.ASSY., Johnson
1) 0397423 ENGINE COV.ASSY., Johnson

0397424, 0397410, 0397411, 0397423,
0397424 0397410 0397411 0397423

10) 0332295 PLATE, 5 models
10) 0332299 PLATE, 6 models
10) 0332302 PLATE, 8 models

11) 0398971 DECAL SET, Johnson - 6SL Models Only
11) 0398990 DECAL SET, Johnson - 6 Models Except SL
11) 0398972 DECAL SET, Johnson - 8 Models Except SRL
11) 0398991 DECAL SET, Johnson - 8SRL Models Only

6HP     J6SLCUD     1987
6HP     J6SLCCS     1988

6HP     J6RLCUD, J6RCUD    1987
6HP     J6RLCCS, J6RCCS    1988

8HP     J8SRLCCS    1988
8HP     J8SRLCUD    1987

8HP     J8RLCUD, J8RCUD    1987
8HP     J8RLCCS, J8RCCS    1988

EVINRUDE 1998 150 E150FCXECR

Evinrude/Johnson 1998 ENGINE COVER -- EVINRUDE Diagram PCA1368B 6-97

Ref: 1
0285020 ENGINE COVER ASSY.
0285030 ENGINE COVER ASSY.
0285098 ENGINE COVER ASSY.
0285114 ENGINE COVER ASSY.
0285115 ENGINE COVER ASSY.
0285116 ENGINE COVER ASSY.

ENGINE COVER ASSY.: 0285020, 0285030, 0285098, 0285114, 0285115, 0285116,
ENGINE COVER ASSY. 0285020 0285030 0285098 0285114 0285115 0285116



Ref: 15
0213408 PLATE, Front
0213396 LENS, Front



EVINRUDE DECALS

17
0285067 DECAL SET
0285066 DECAL SET
0285117 DECAL SET
0285118 DECAL SET

More Articles …

  1. Evinrude/Johnson EVINRUDE 1995 25SI/25SIK 50/60/70 E70TLEOR 1995
  2. 1983 EVINRUDE 35 HP
  3. 1997 EVINRUDE/JOHNSON 90/115
  4. Evinrude/Johnson EVINRUDE 1987 35/40/50 HP

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
