MODEL YEAR 2005 PARTS LIST

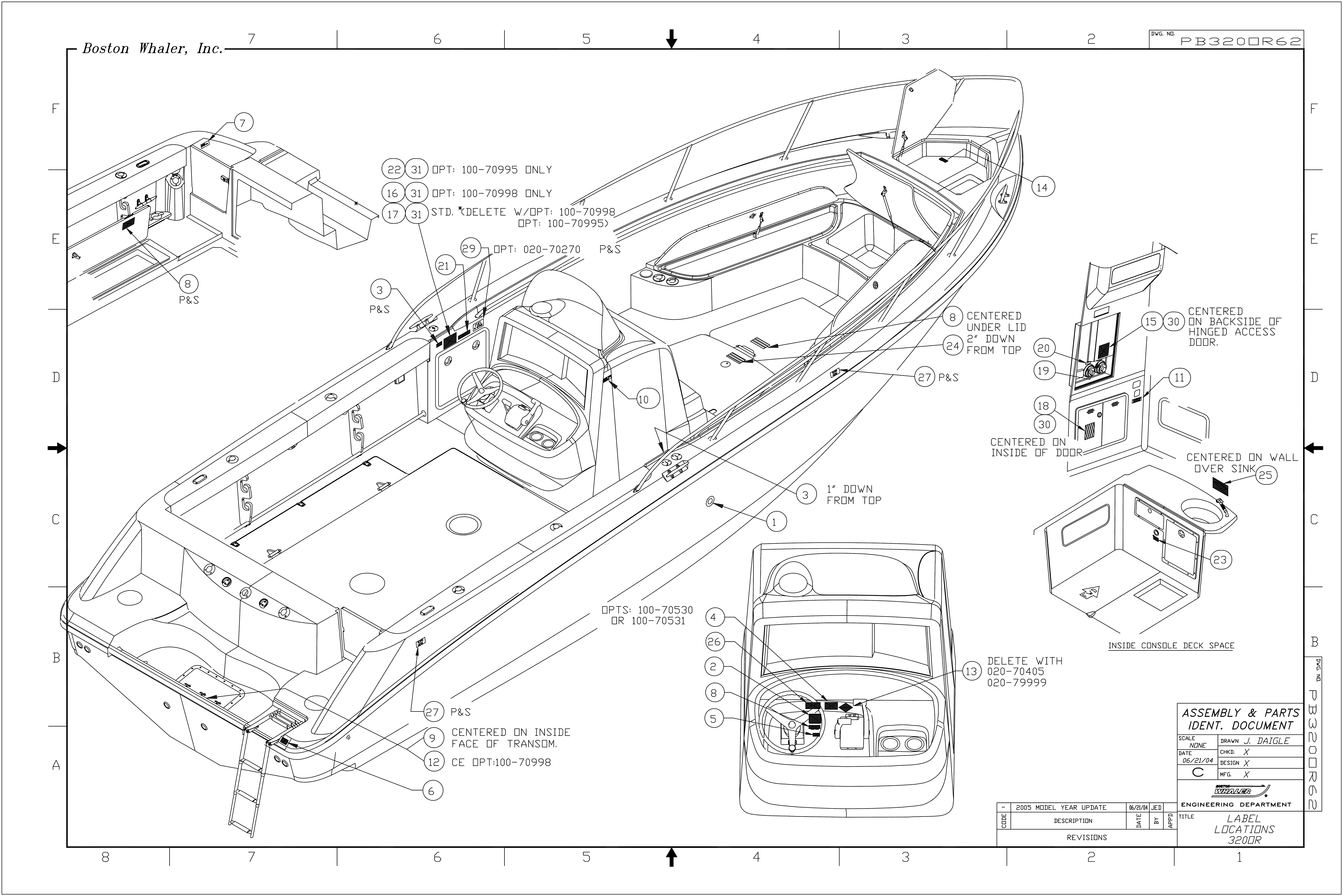

BOAT MODEL: 320 OUTRAGE
DOCUMENT CONTROL NO: PB3200R65

MODEL DECAL

• 1)  1753478 - DECAL, BW-04 3200R BLK (DRIP MOLD) - Order 2
• 1)  1753479 - DECAL, BW-04 3200R GRY (DRIP MOLD) - Order 2
• 1)  1753477 - DECAL, BW-04 3200R SLVR MATTE (DRIP MOLD) - Order 2

1753478, 1753479, 1753477,

BW SEAT LOGO

• 2)  1745888 - DECAL, BW LOGO 5.75" BLK/CHR (DRIP MOLD) - Order 2

1745888,

HULL BOSTON WHALER LOGOS

• 3)  1752941 - DECAL, BW-04 LOGO 29" RED PRT (DRIP MOLD)
  4)  1752942 - DECAL, BW-04 LOGO 29" RED STB (DRIP MOLD)
• 3)  1752943 - DECAL, BW-04 LOGO 29" DK BLUE PRT (DRIP MOLD)
  4)  1752944 - DECAL, BW-04 LOGO 29" DK BLUE STB (DRIP MOLD)
• 3)  1752950 - DECAL, BW LOGO 29" SLVR MATTE PRT (DRIP MOLD)
  4)  1752951 - DECAL, BW LOGO 29" SLVR MATTE STB (DRIP MOLD)
• 3)  1752948 - DECAL, BW-04 LOGO 29" BLK PRT (DRIP MOLD)
  4)  1752949 - DECAL, BW-04 LOGO 29" BLK STB (DRIP MOLD)

1752941, 1752942,
1752943, 1752944,
1752950, 1752951,
1752948, 1752949,

WATERLINE STRIPE

• 5)  1754509 - TAPE, SOLID 1" RED W/GRY STRIP - 90 FT
• 5)  1754510 - TAPE, SOLID 1" DK BLUE W/GRY PIN STRIP - 90 FT

1754509, 1754510,

HULL ADSS LOGO

• 6)  1749401 - DECAL, BW-03 ADSS 11.4" BLK/CHR (DRIP MOLD) - Order 2

 1749401

MODEL YEAR 2005 PARTS LIST
BOAT MODEL: 320 OUTRAGE
DOCUMENT CONTROL NO: PB3200R63

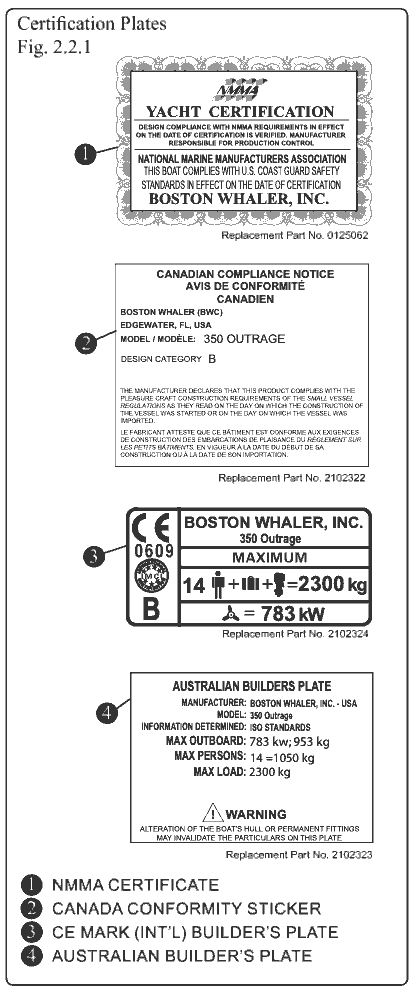

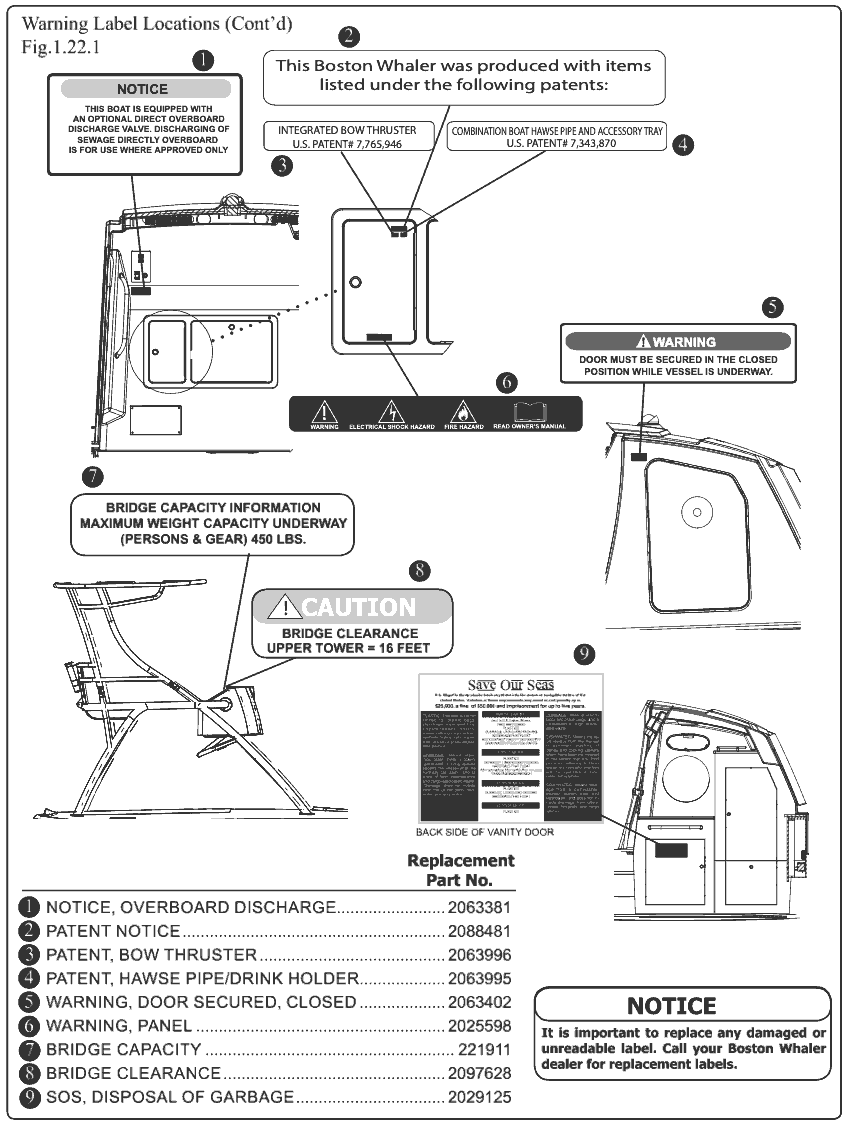

• 01)  1016484 - LABEL, BW NO SMOKING FUEL VENT - Order 2
• 02)  1017136 - LABEL, BW SAFETY HI-PERF BOAT
• 03)  0995704 - PLATE, WARNING FUEL HAZARD - Order 2
• 04)  1110675 - LABEL, BW WARNING CARBON MONOXIDE CANVAS ENCL
• 05)  1016534 - LABEL, BW WARNING FUEL GAUGE READ
• 06)  1016948 - LABEL, BW WARNING SWIM PLATFORM
• 07)  1017144 - LABEL, BW WARNING TRANSOM DOOR
• 08)  1743504 - LABEL, BW CAUTION FISHWELL DRAIN PLUG
• 09)  1744737 - LABEL, DISCHARGE OF OIL (LEXAN)
• 10)  1754632 - LABEL, DOOR SECURED CLOSED WHILE UND
• 11)  1745156 - LABEL, NOTICE OVERBOARD DISCHARGE (LEXAN)
• 12)  1745514 - LABEL, PREVENT DISCHARGE OF POLLUTANTS
• 13)  1743323 - DECAL, MERC SMARTCRAFT NETWORKED
• 14)  1746896 - LABEL, DANGER STAY CLEAR OF MOVING PAR
• 15)  1051762 - PLATE, BW230CQ-97 BATT PARALLEL DET
• 16)  1738303 - PLATE, BUILDERS CE 03-BW3200R
• 17)  0125062 - PLATE, NMMA YACHT CERT GAS
• 18)  1742660 - PLATE, SEACOCK LOCATIONS BW3200R-03
• 19)  1743511 - LABEL, 2" X 1/2" STBD
• 20)  1744740 - LABEL, 2" X 1/2" PORT
• 21)  1774308 - PLATE, BW-05 MAX ENG WT 1400LB/635KG
• 22)  1746031 - PLATE, SAFETY CANADIAN CONFORMITY BW3200R-03
• 23)  1744738 - LABEL, RECEPTACLE 12V-15A MAX (LEXAN)
• 24)  1691003 - LABEL, WARNING DO NOT STORE FUEL
• 25)  1744745 - LABEL, DISPOSAL OF GARBAGE
• 26)  1752856 - LABEL, WARNING LTD VISION FROM HELM STN
• 27)  1743532 - LABEL, SLING (LEXAN) - Order 4
• 28)  0614867 - DECAL, "SLING" LARGE (VAC PAC) - Order 4
• 29)  1749551 - LABEL, FUEL RECOMMENDATION 91 OCTANE - Order 2
• 30)  1734115 - SCREW, TAPPING #6A X 3/8" PTH SC - Order 8
• 31)  0192047 - RIVET, POP/BLIND #1/8 X 3/8" ALUM - Order 8

1016484, 1017136, 0995704, 1110675, 1016534, 1016948, 1017144, 1743504,
1744737, 1754632, 1745156, 1745514, 1743323, 1746896, 1051762, 1738303,
0125062, 1742660, 1743511, 1744740, 1774308, 1746031, 1744738, 1691003,
1744745, 1752856, 1743532, 0614867, 1749551, 1734115, 0192047,

2008 Boston Whaler Outrage 190

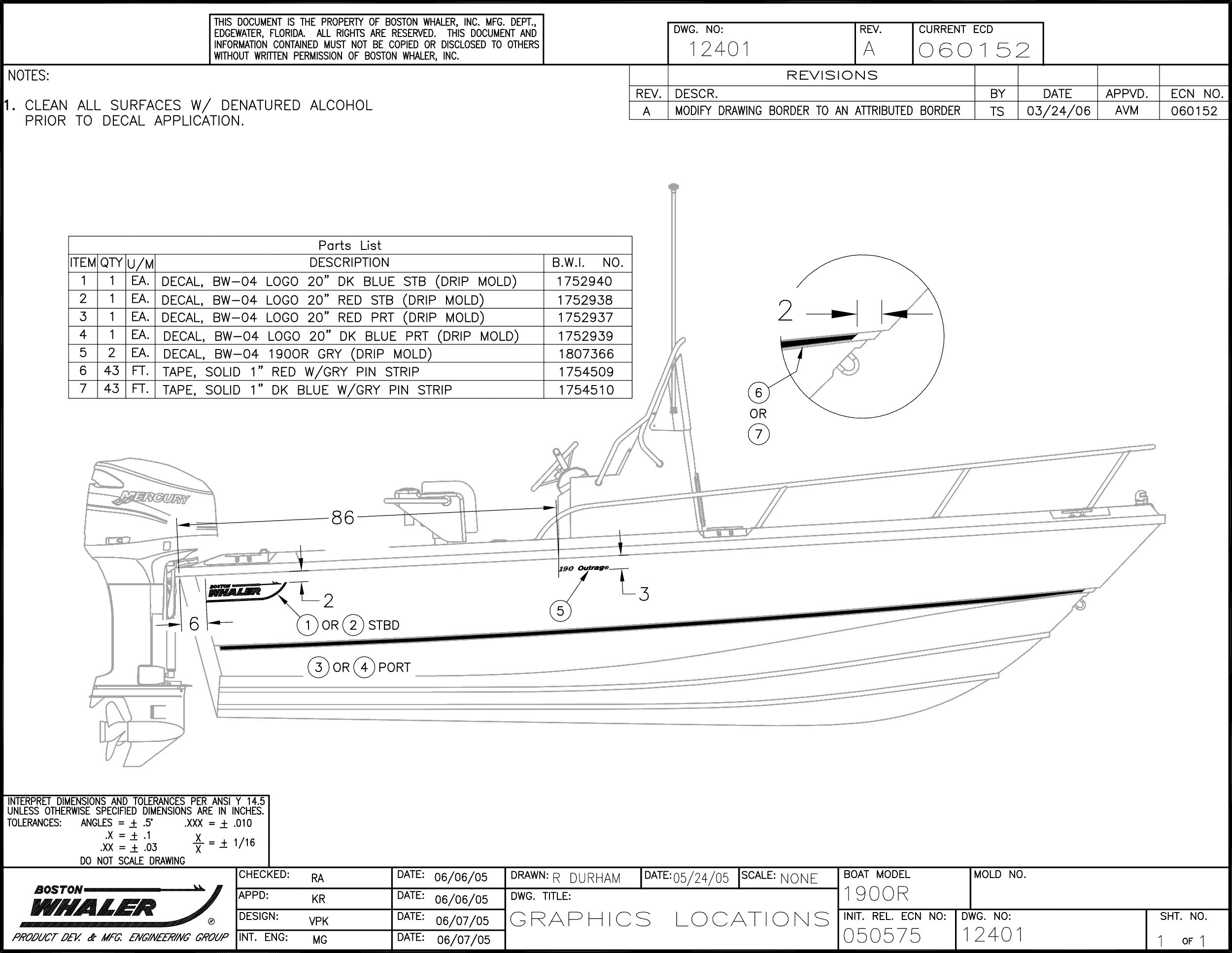

2008 Boston Whaler 190 Outrage - Graphics & Stripes

DARK BLUE LOGOS

• 1) 1752940 - DECAL, BW-04 LOGO 20" DK BLUE STB (DRIP MOLD)
• 4) 1752939 - DECAL, BW-04 LOGO 20" DK BLUE PRT (DRIP MOLD)

RED LOGOS

• 2) 1752938 - DECAL, BW-04 LOGO 20" RED STB (DRIP MOLD)
• 3) 1752937 - DECAL, BW-04 LOGO 20" RED PRT (DRIP MOLD)

1752940, 1752938, 1752937, 1752939,

STRIPES - No harpoon on this model

• 5) 1807366 - DECAL, BW-04 190OR GRY (DRIP MOLD) - Order 2
• 6) 1754509 - TAPE, SOLID 1" RED W/GRY PIN STRIP - 43 FT
• 7) 1754510 - TAPE, SOLID 1" DK BLUE W/GRY PIN STRIP - 43 FT

1807366, 1754509, 1754510

https://www.bostonwhaler.com/content/dam/boston-whaler/technical/resources/190-Outrage-Graphics-Locations-and-Parts-List-2008.pdf

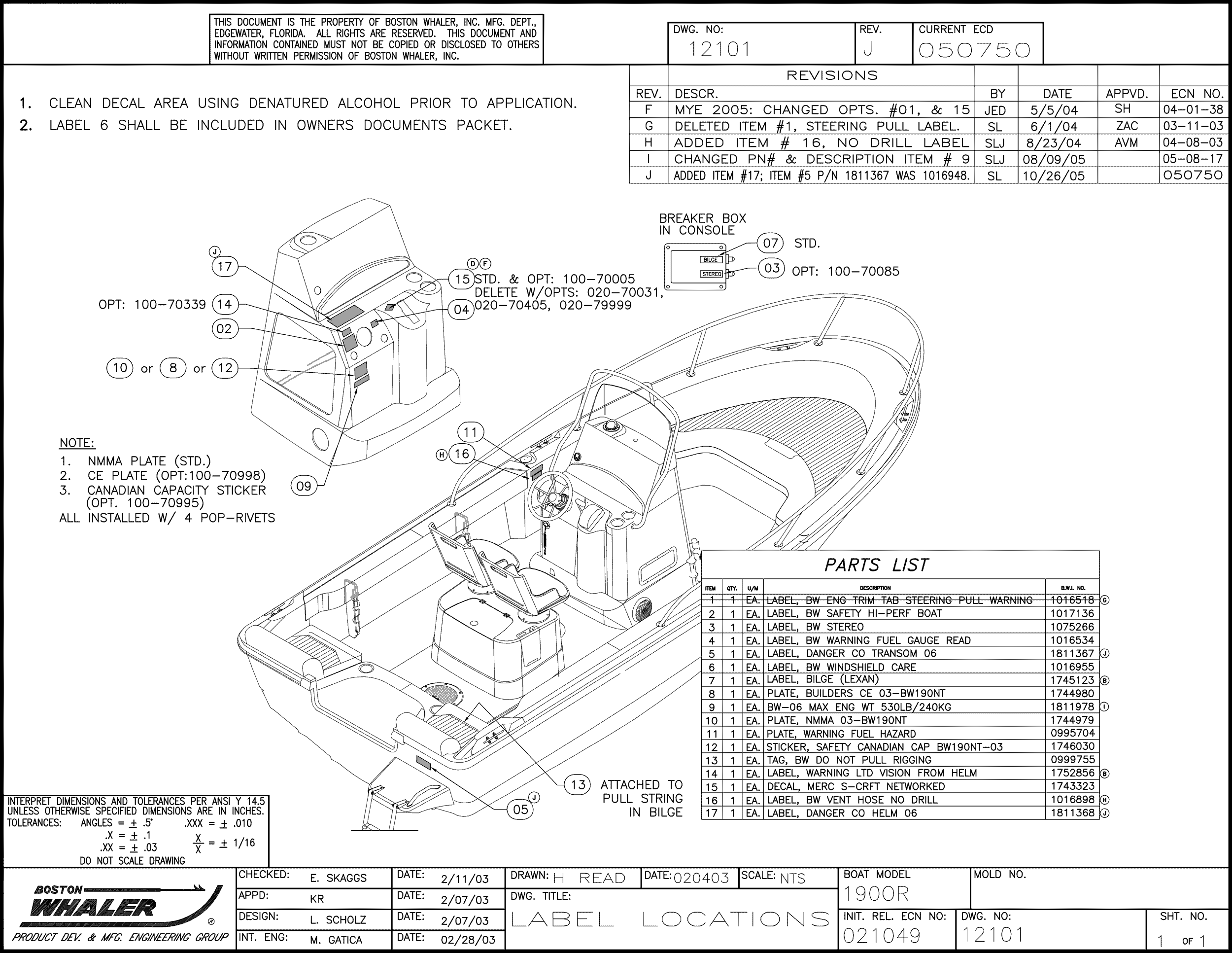

2008 Boston Whaler 190 Outrage - Labels & Plates

• 1) 1016518 - LABEL, BW ENG TRIM TAB STEERING PULL WARNING
• 2) 1017136 - LABEL, BW SAFETY HI-PERF BOAT
• 3) 1075266 - LABEL, BW STEREO
• 4) 1016534 - LABEL, BW WARNING FUEL GAUGE READ
• 5) 1811367 - LABEL, DANGER CO TRANSOM 06
• 6) 1016955 - LABEL, BW WINDSHIELD CARE
• 7) 1745123 - LABEL, BILGE (LEXAN)
• 8) 1744980 - PLATE, BUILDERS CE 03-BW190NT
• 9) 1811978 - BW-06 MAX ENG WT 530LB/240KG
• 10) 1744979 - PLATE, NMMA 03-BW190NT
• 11) 0995704 - PLATE, WARNING FUEL HAZARD
• 12) 1746030 - STICKER, SAFETY CANADIAN CAP BW19ONT-03
• 13) 0999755 - TAG, BW DO NOT PULL RIGGING
• 14) 1752856 - LABEL, WARNING LTD VISION FROM HELM
• 15) 1743323 - DECAL, MERC S-CRFT NETWORKED
• 16) 1016898 - LABEL, BW VENT HOSE NO DRILL
• 17) 1811368 - LABEL, DANGER CO HELM 06

1016518, 1017136, 1075266, 1016534, 1811367, 1016955, 1745123, 1744980, 1811978, 1744979, 0995704, 1746030, 0999755, 1752856, 1743323, 1016898, 1811368

https://www.bostonwhaler.com/content/dam/boston-whaler/technical/resources/190-Outrage-Label-Locations--and-Parts-List-2008.pdf

🧭 Notes for Replacement of 2008 Boston Whaler 190 Outrage Decals & Labels

• Factory graphics were offered in two color schemes: Red or Dark Blue. Logo decals, harpoon stripes, and model identifiers match accordingly.
• Model identifier decal: Part #1807366 (190OR GRY drip-molded) is applied to both sides – Order 2 total.
• Stripe kits: Use 43 ft of 1" vinyl tape with gray pinstripe – Red (#1754509) or Dark Blue (#1754510).
• All safety labels (e.g. CO Warning, Fuel Hazard, Max Engine Weight, CE/Canadian Plates) can be reproduced as decals for restoration or compliance. Use label diagram PDF for original placement reference.
• Max Engine Weight: Plate shows limit of 530 LB / 240 KG (#1811978).

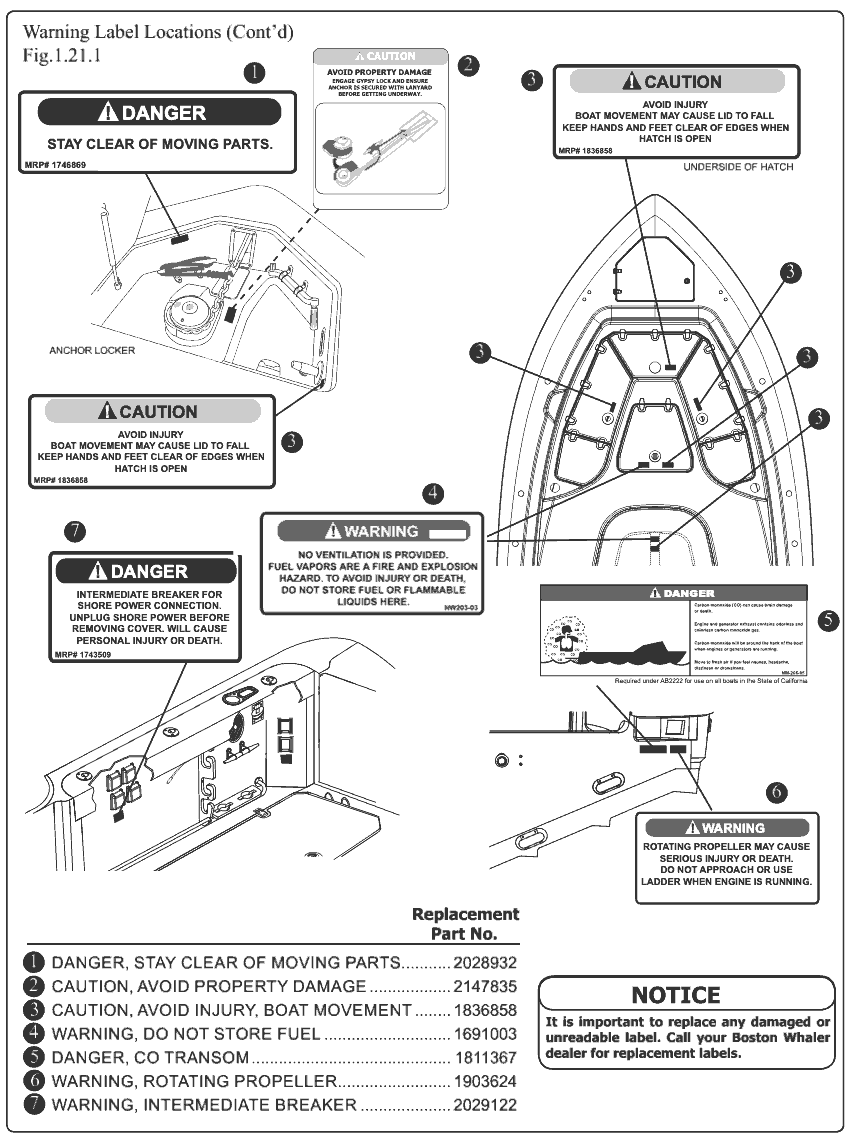

• Owners Manual (2008) includes photos confirming factory placement of decals and labels for visual guidance.
  https://www.bostonwhaler.com/content/dam/boston-whaler/technical/resources/190-Outrage-Owners-Manual-2008.pdf

This summary helps identify the correct graphic set (red or blue) and proper quantities needed for a complete port and starboard restoration of your 2008 Outrage 190.

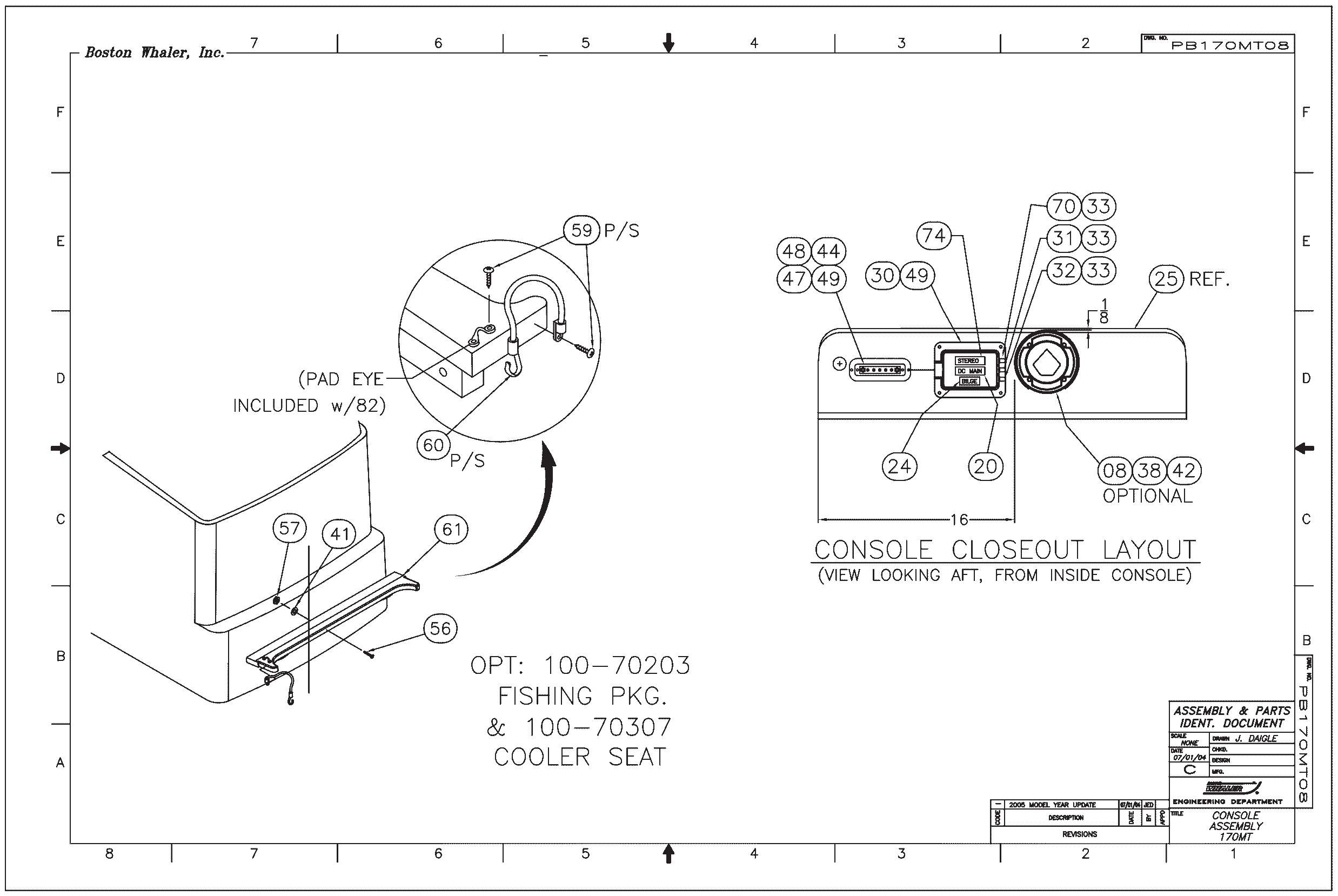

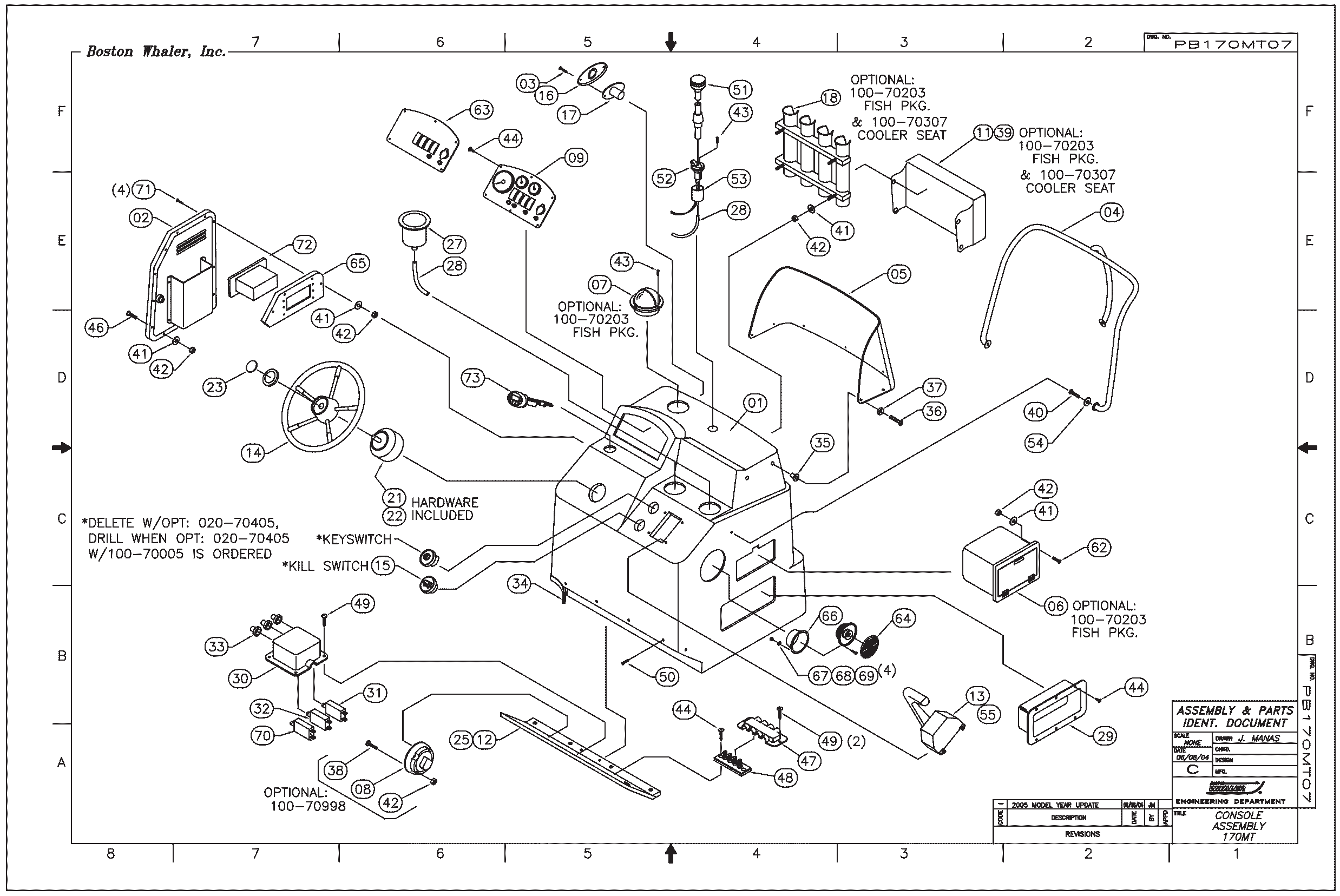

2005 Boston Whaler 170 Montauk - Console Assembly

MODEL YEAR 2005 PARTS LIST
BOAT MODEL: 170 MONTAUK
DOCUMENT CONTROL NO: PB170MTO9

• 20) 1075282 - LABEL, BW DC MAIN BREAKER
• 23) 1021054 - EMBLEM, BW STEERING WHEEL CAP
• 24) 756866 - LABEL, BILGE (LEXAN)
• 74) 1075266 - LABEL, BW STEREO

1075282, 1021054, 756866, 1075266
https://www.bostonwhaler.com/content/dam/boston-whaler/technical/resources/170-Montauk-Console-Assembly-with-Parts-List-2005.pdf

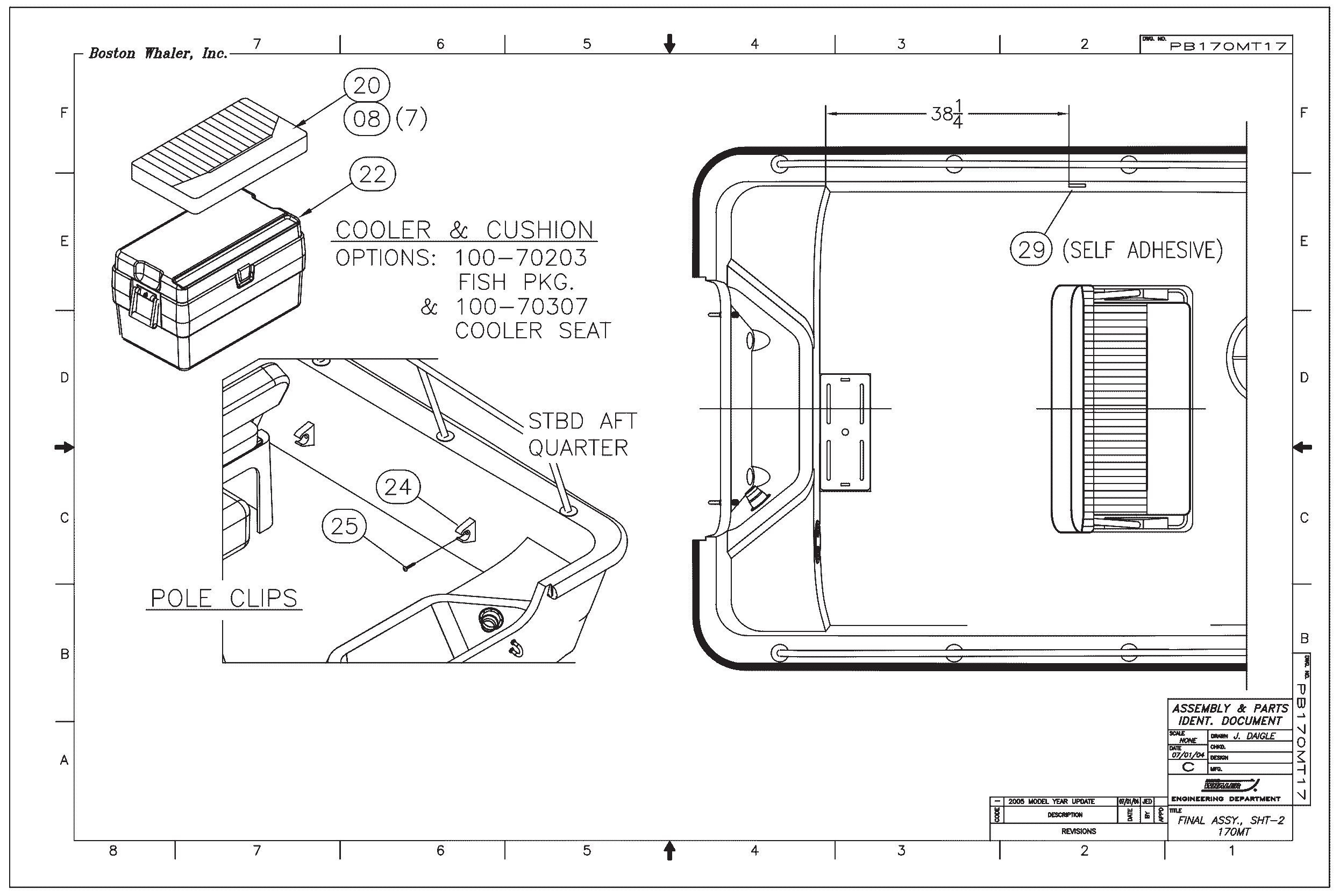

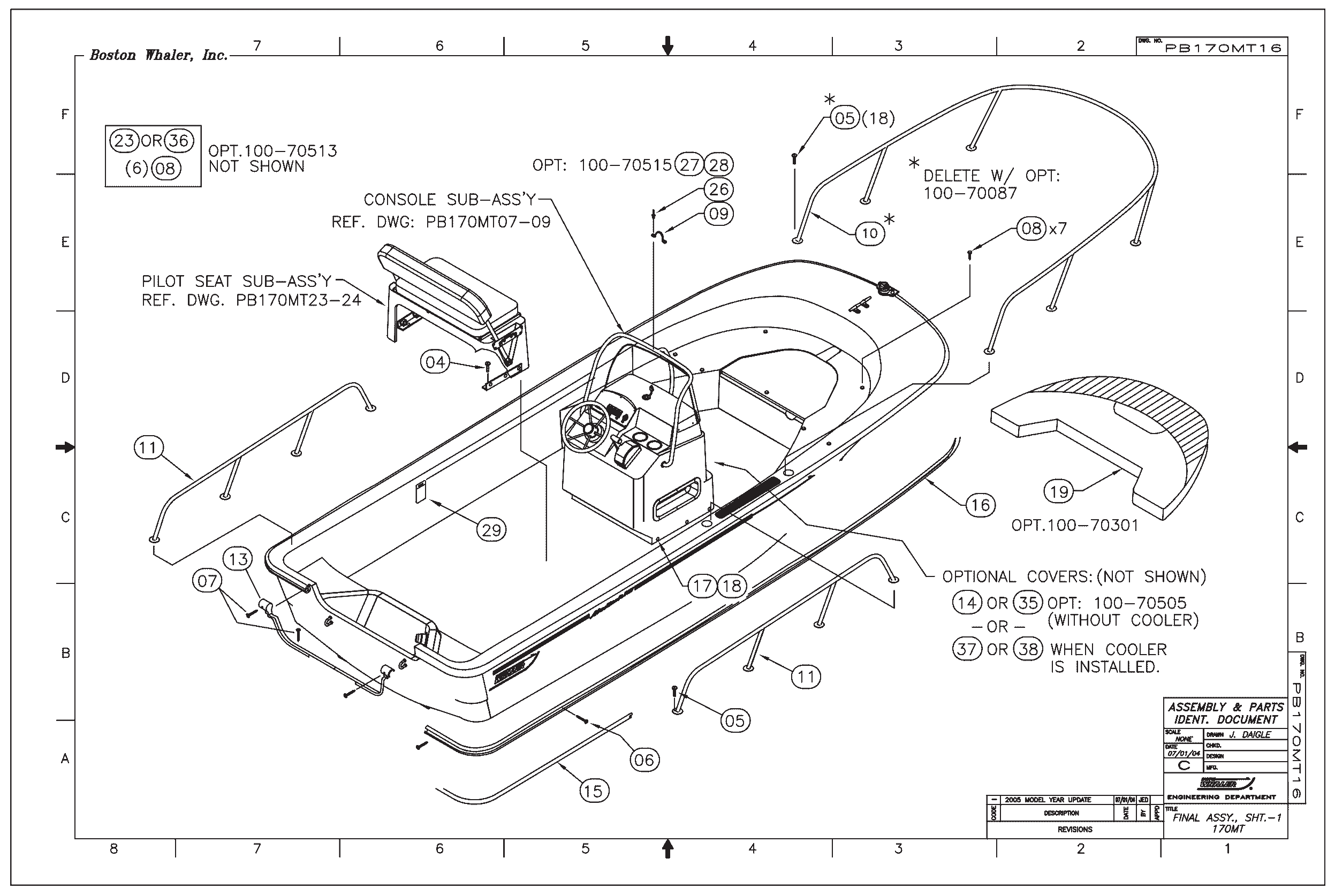

 2005 Boston Whaler 170 Montauk - Final Assembly

MODEL YEAR 2005 PARTS LIST
BOAT MODEL: 170 MONTAUK
DOCUMENT CONTROL NO: PB17OMT18

• 29) 1769263 - LABEL, BW CLEARANCE 17MTK-04 STERN SEAT LEXAN
• 30) 1023456 - PLATE, BW 91 STERN SEAT SUPPORT LEG

1769263, 1023456
https://www.bostonwhaler.com/content/dam/boston-whaler/technical/resources/170-Montauk-Final-Assembly-with-Parts-List-2005.pdf

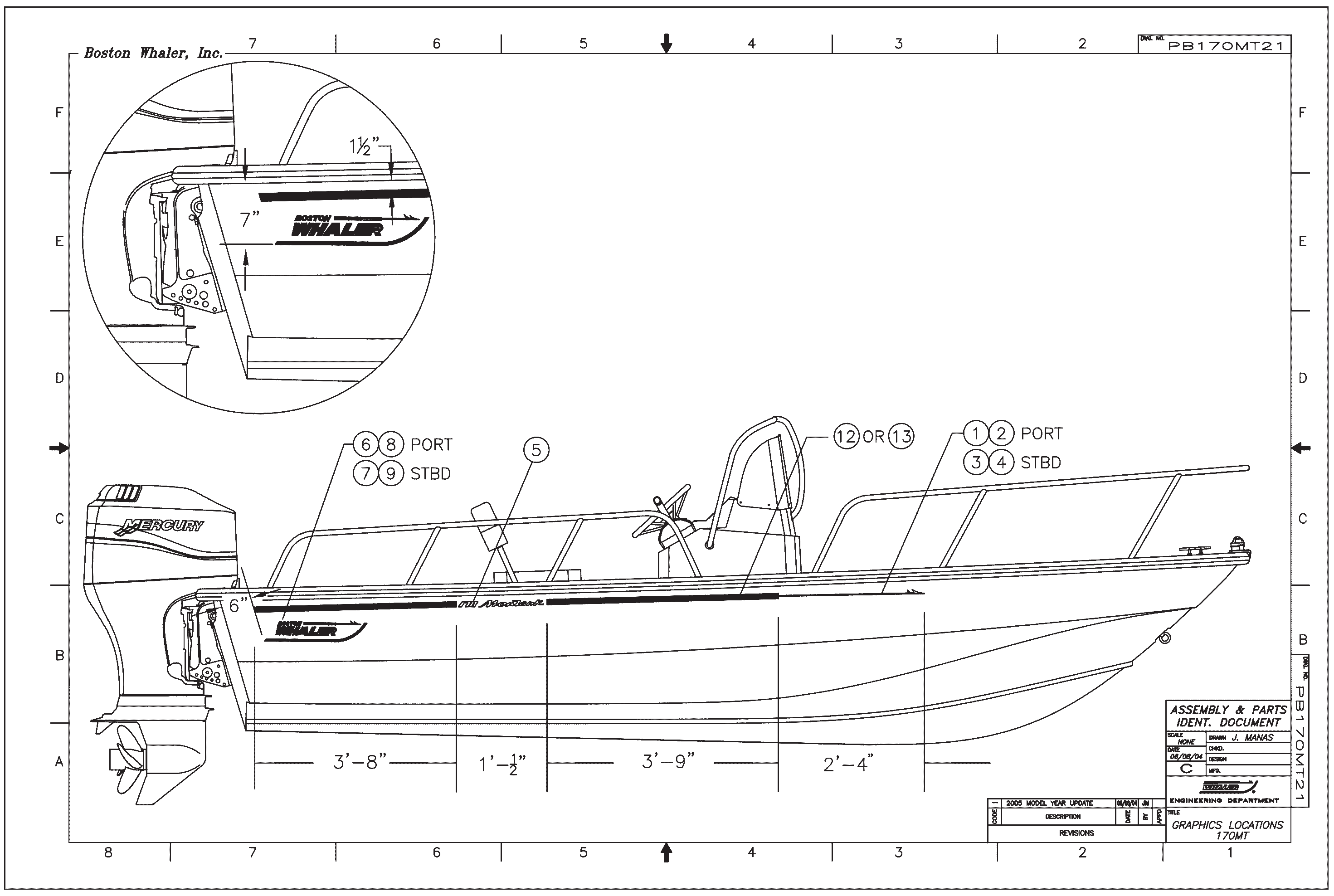

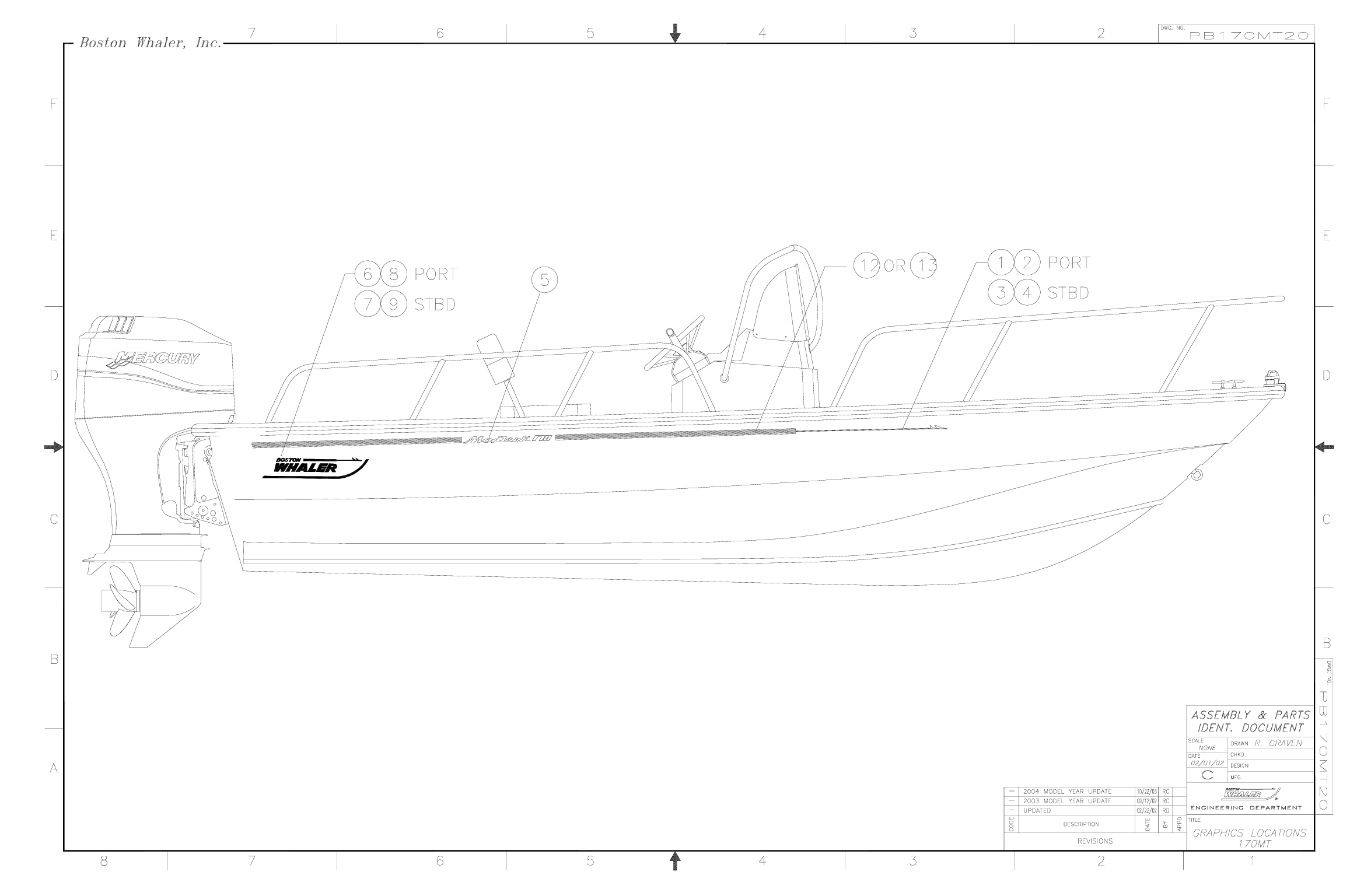

2005 Boston Whaler 170 Montauk - Graphics & Stripe Locations

MODEL YEAR 2005 PARTS LIST
BOAT MODEL: 170 MONTAUK
DOCUMENT CONTROL NO: PB17OMT22

============= 170 Montauk ==========------------>>
|-----44----|----12.5----|----45----|-----28-----| Inches
|-----------------------129.5--------------------| Inches

Harpoon Tips

• 1) 1752933 - DECAL, BW-04 HARPOON PRT DE BLUE
• 2) 1752931 - DECAL, BW-04 HARPOON PRT WHLR RED
• 3) 1752936 - DECAL, BW-04 HARPOON STB DK BLUE
• 4) 1752932 - DECAL, BW-04 HARPOON STB WHLR RED

1752933, 1752931, 1752936, 1752932

Model 170 Montauk

• 5) 1753480 - DECAL, BW-04 17MTK GRY (DRIP MOLD) - 170 - Order 2 Domed
• 10) 1620814 - DECAL, BW-02 170 CORBIN DE BLUE HIBOSSCAL - Montauk - Order 2 Domed
• 11) 1620749 - DECAL, BW-02 170 FIRE RED HIBOSSCAL - Montauk - Order 2 Domed

1753480, 1620814, 1620749

Harpoon Stripes - Body

• 12) 1754510 - TAPE, SOLID 1" DK BLUE W/GRY PIN STRIP - 16FT
• 13) 1754509 - TAPE, SOLID 1" RED W/GRY PIN STRIP - 16 FT

1754510, 1754509

1752933, 1752931, 1752936, 1752932, 1753480, 1620814, 1620749, 1754510, 1754509,

BW Logos

• 6) 1752939 - DECAL, BW-04 LOGO 20" DK BLUE PRT (DRIP MOLD)
• 7) 1752940 - DECAL, BW-04 LOGO 20" DK BLUE STB (DRIP MOLD)
• 8) 1752937 - DECAL, BW-04 LOGO 20" RED PRT (DRIP MOLD)
• 9) 1752938 - DECAL, BW-04 LOGO 20" RED STB (DRIP MOLD)

1752939, 1752940, 1752937, 1752938

https://www.bostonwhaler.com/content/dam/boston-whaler/technical/resources/170-Montauk-Graphics-Locations-with-Parts-List-2005.pdf

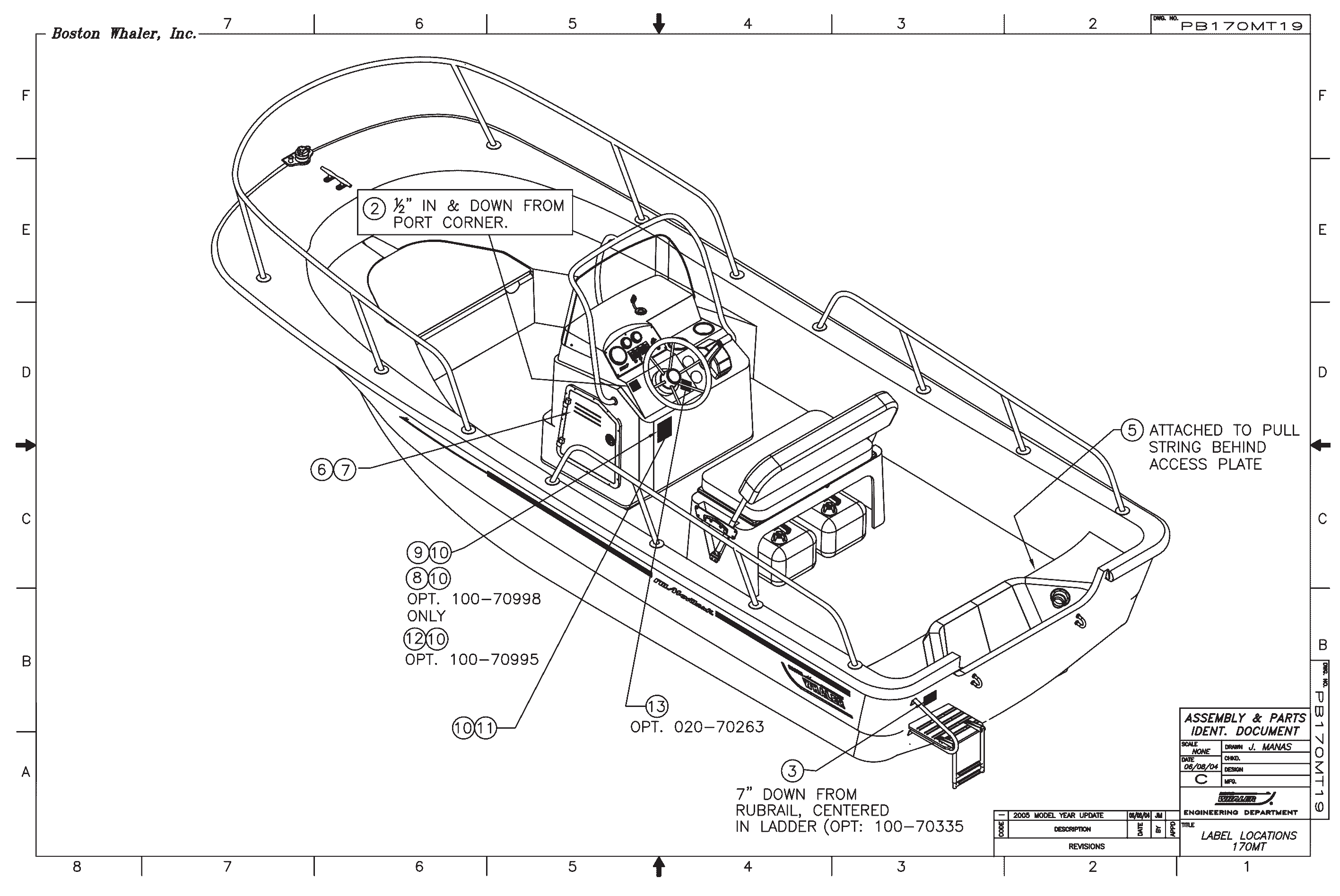

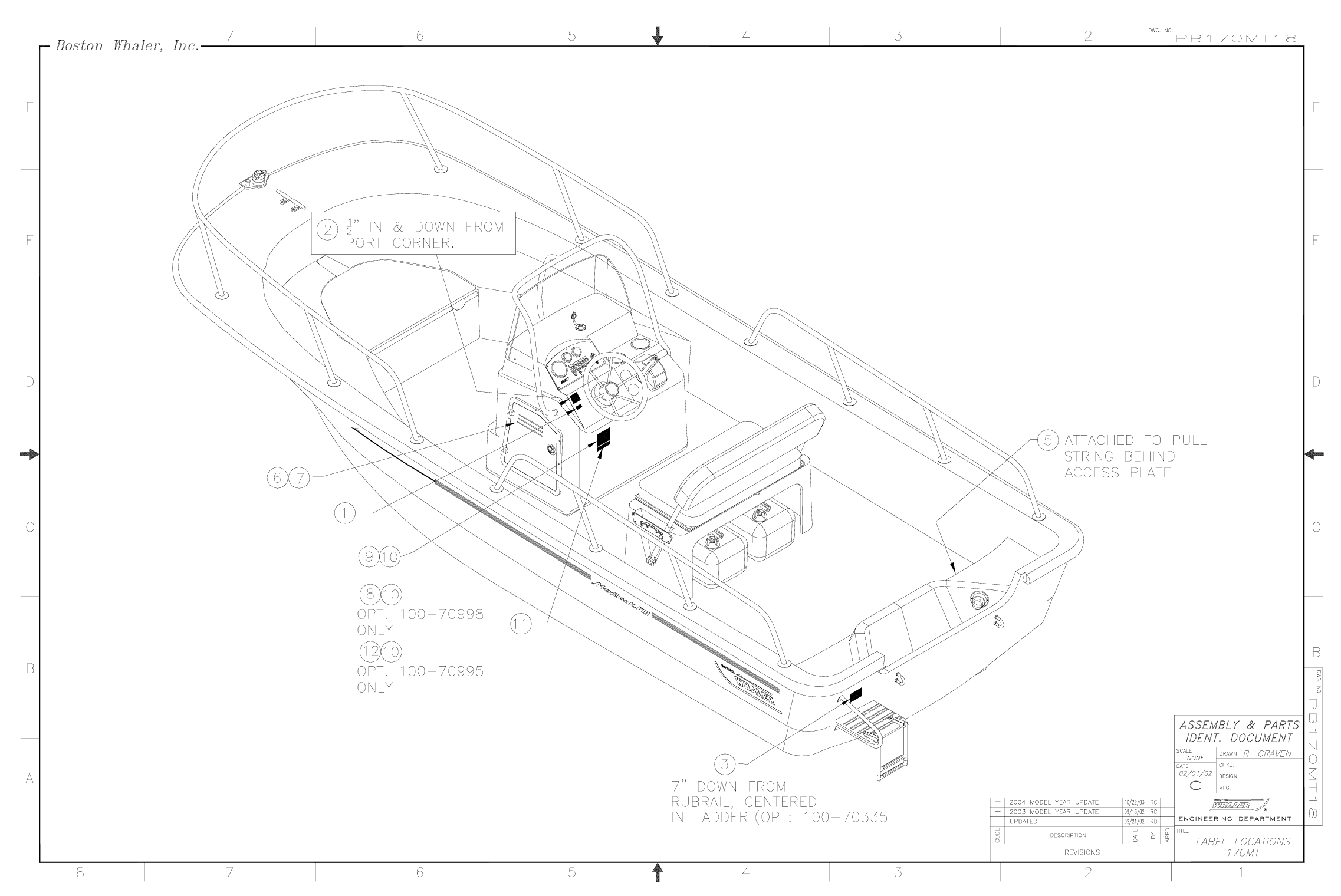

2005 Boston Whaler 170 Montauk - Label Locations

MODEL YEAR 2005 PARTS LIST
BOAT MODEL: 170 MONTAUK
DOCUMENT CONTROL NO: PBIZOMTZO

• 1) 1016518 - LABEL, BW ENG TRIM TAB STEERING PULL
• 2) 1017136 - LABEL, BW SAFETY HI-PERF BOAT
• 3) 1016948 - LABEL, BW WARNING SWIM PLTFORM 2"X3"
• 4) 1016955 - LABEL, BW WINDSHIELD CARE
• 5) 999755 - TAG, BW DO NOT PULL RIGGING
• 6) 1745125 - LABEL, BILGE (LEXAN)
• 7) 1075282 - LABEL, BW DE MAIN BRAKER
• 8) 1689635 - PLATE, BUILDERS CE 02-BW17OMT
• 9) 1689636 - PLATE, NMMA 02-BW17OMT
• 10) 1007855 - RIVET, POP/BLIND #1/8 X 1/4" ALUM
• 11) 1735926 - PLATE, BW-03 MAX ENG WT 410LB/185KG
• 12) 1746015 - PLATE, SAFETY CANADIAN CAP BW17MTK-03
• 15) 1745525 - DECAL, MERC S-CRFI NETWORKED

1016518, 1017136, 1016948, 1016955, 999755, 1745125, 1075282, 1689635, 1689636, 1007855, 1735926, 1746015, 1745525
https://www.bostonwhaler.com/content/dam/boston-whaler/technical/resources/170-Montauk-Label-Locations-with-Parts-List-2005.pdf

https://www.bostonwhaler.com/content/dam/boston-whaler/technical/resources/170-Montauk-Owners-Manual-2005.pdf

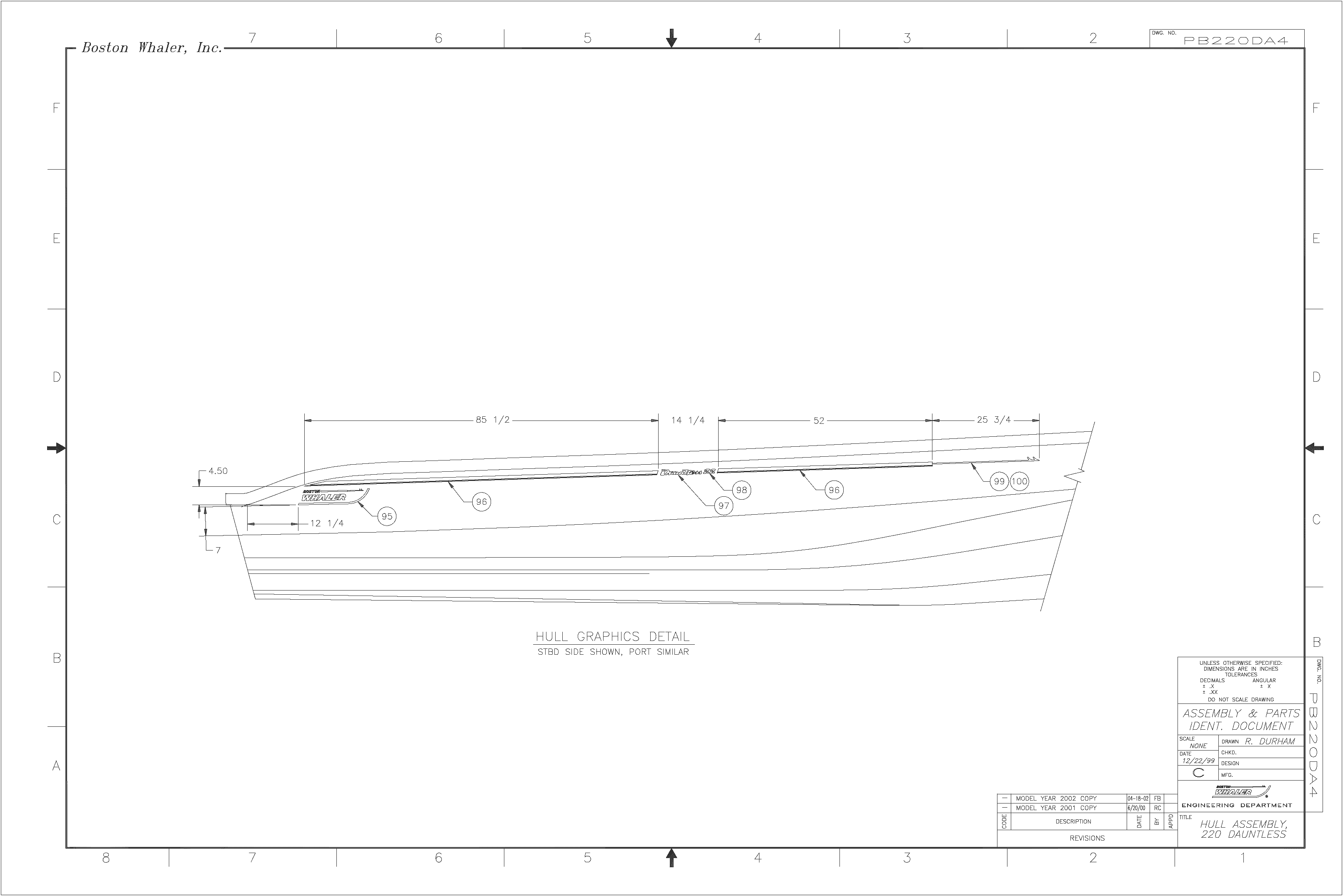

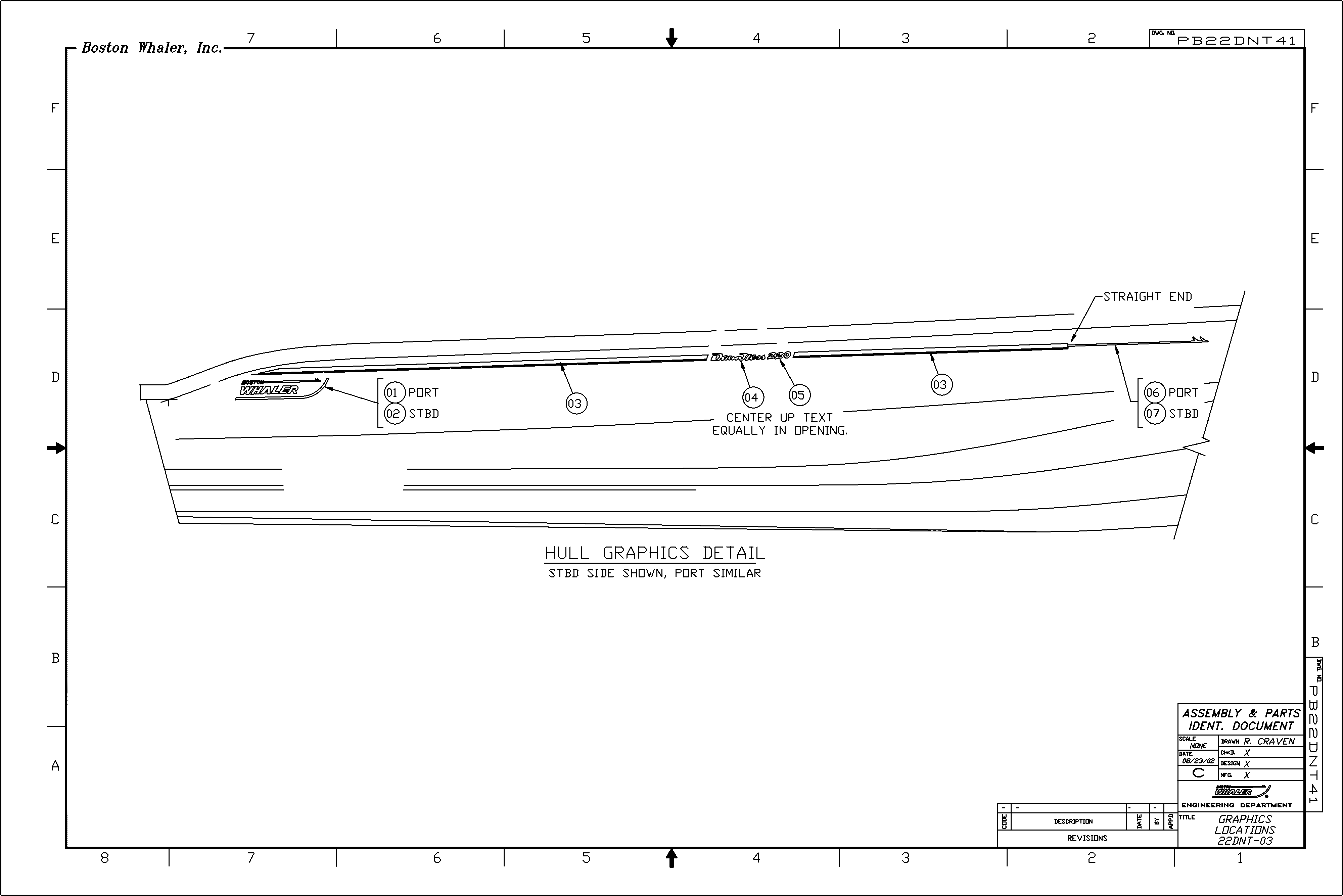

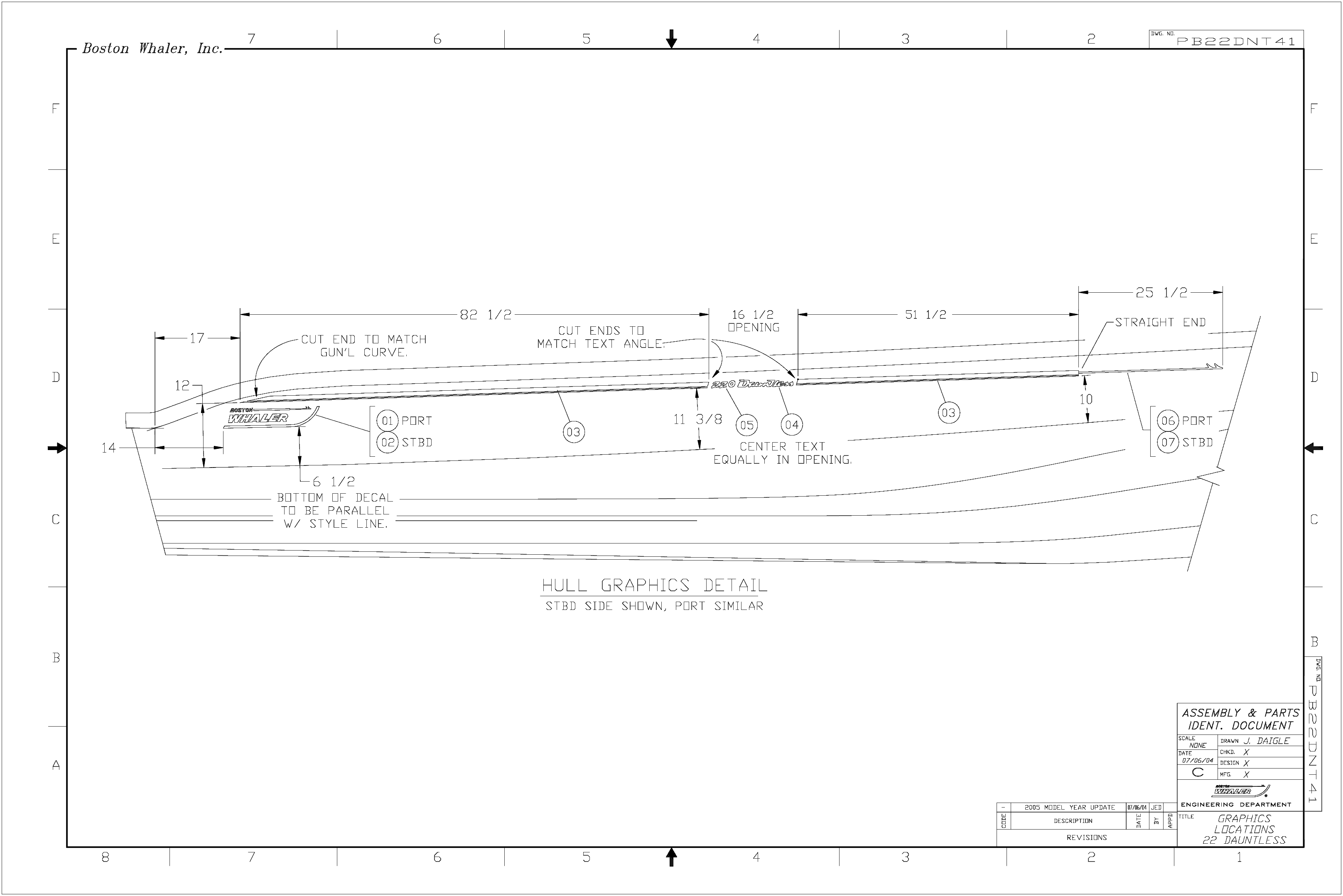

MODEL YEAR 2003 PARTS LIST
BOAT MODEL: 22DNT-03
DOCUMENT CONTROL ND: PB22DNT42

RED DECALS

• 01) 1452663 - DECAL, BW LOGO 18" RED PORT (DRIP MOLD)
• 02) 1457654 - DECAL, BW LOGO 18" RED STBD (DRIP MOLD)
• 03) 1038009 - TAPE, SOLID 1" FIRE RED W/PIN STRP - 30 FT
• 04) 1030683 - DECAL, BW DAUNTLESS DK GRAY HIBOSSCAL - ORDER 2
• 05) 1620889 - DECAL, BW-02 220 FIRE RED HIBOSSCAL - ORDER 2
• 06) 0998559 - DECAL, BW HARPOON PORT FIRE RED
• 07) 0998609 - DECAL, BW HARPOON STBD FIRE RED

1452663, 1457654, 1038009,1030683, 1620889,0998559,0998609,

BLUE DECALS

• 01) 1452671 - DECAL, BW LOGO 18" BLUE PORT (DRIP MOLD)
• 02) 1457662 - DECAL, BW LOGO 18" BLUE STBD (DRIP MOLD)
• 03) 1037985 - TAPE, SOLID 1" CORBIN DK BLUE W/PIN STRP - 30 FT
• 04) 1030683 - DECAL, BW DAUNTLESS DK GRAY HIBOSSCAL - ORDER 2
• 05) 1620897 - DECAL, BW-02 220 CORBIN DK BLUE HIBOSSCAL - ORDER 2
• 06) 0998450 - DECAL, BW HARPOON SIBD CURBIN DE BLUE
• 07) 0998476 - DECAL, BW HARPOON PORT CORBIN DE BLUE

1452671,  1457662, 1037985, 1620889, 1620897, 0998450, 0998476,

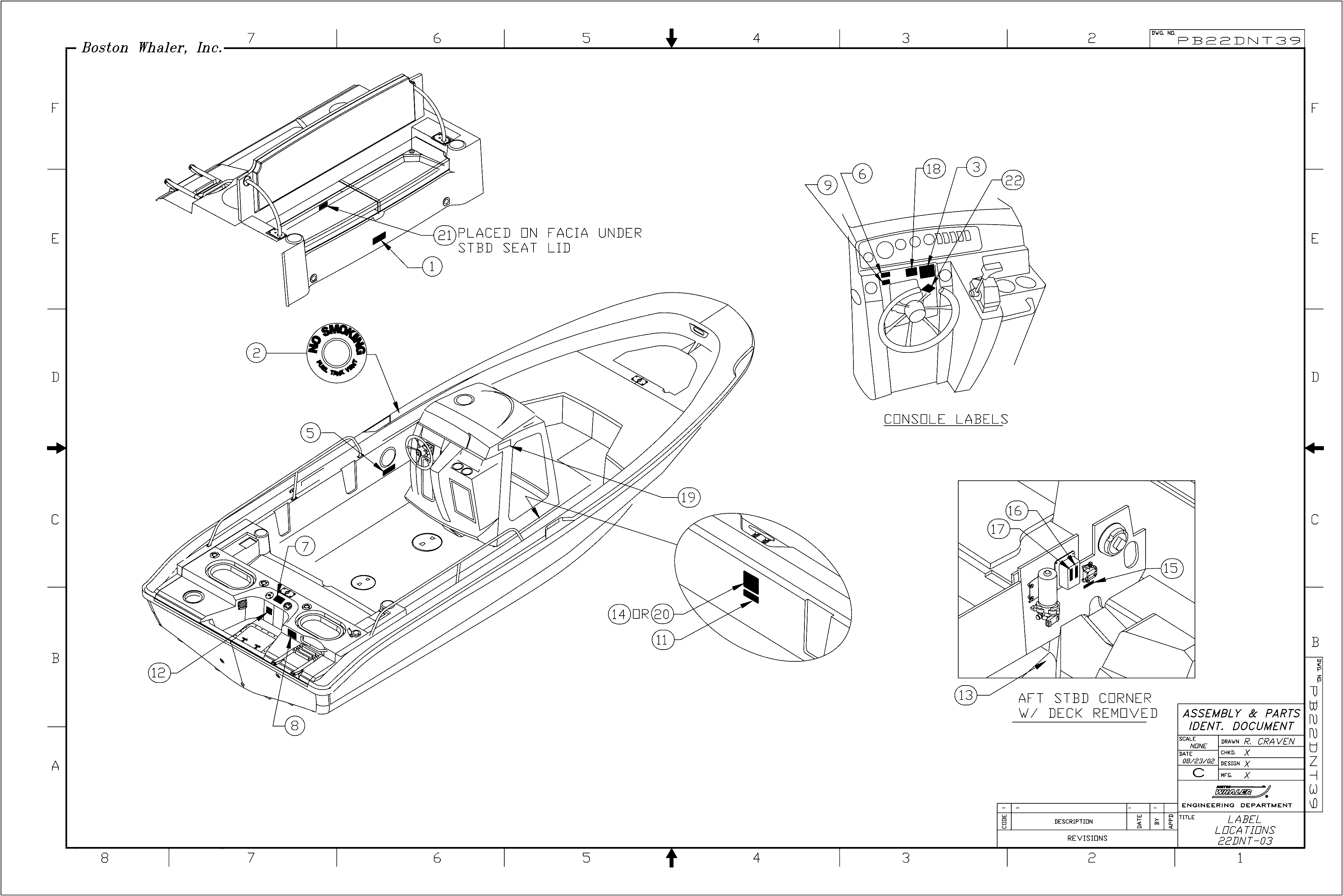

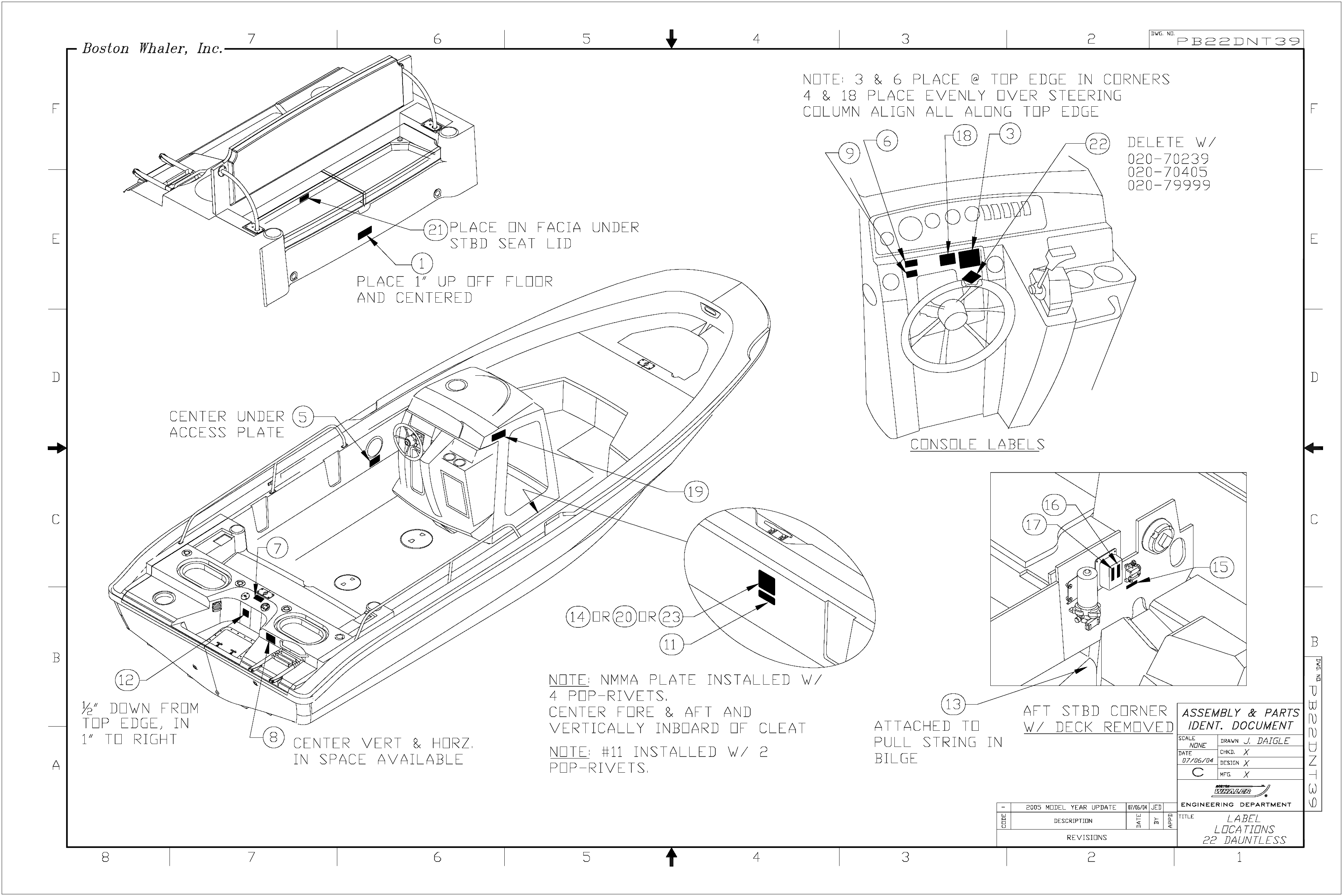

MODEL YEAR 2003 PARTS LIST
BOAT MODEL: 22DNT-03
DOCUMENT CONTROL ND: PB22DNT40

• 01) 1016443 - LABEL, BW FUEL TANK- NO DRILL
• 02) 1016484 - LABEL, BW NO SMOKING - FUEL VENT
• 03) 1017136 - LABEL, BW SAFETY HI PERF- BOAT
• 04) 1016518 - LABEL, BW STEERING PULL WARNING
• 05) 1016898 - LABEL, BW VENT HOSE NO DRILL
• 06) 1016534 - LABEL, BW WARNING FUEL GAUGE READ
• 07) 1590140 - LABEL, BW SKI PYLON
• 08) 1016948 - LABEL, BW WARNING SWIM PLTFORM
• 09) 1734897 - LABEL, CAUTION REMOVE SKI PYLON
• 10) 1016955 - LABEL, BW WINDSHIELD CARE
• 11) 1735930 - PLATE, BW-03 MAX ENG WT 610LB/ 276KG
• 12) 995704 - WARNING FUEL HAZARD
• 13) 999755 - TAG, BW DO NOT PULL RIGGING - ORDER 2
• 14) 1619832 - PLATE, NMMA 00-BW 220DA
• 15) 1075282 - LABEL, BW DE 02 MAIN BREAKER
• 16) 1075266 - LABEL, STEREO
• 17) 756866 - LABEL, BILGE ‹LEXAN)
• 18) 1088574 - LABEL, WARNING LTD VISION FROM HELM STN
• 19) 1727117 - LABEL, DOOR SECURED CLOSED WHILE UNDERWAY
• 20) 1619840 - PLATE, BUILDERS CE 02-BW220DA
• 21) 1691003 - LABEL, WARNING DO NOT STORE FUEL
• 22) 1743323 - DECAL, MERC SMARTCRAFT NETWORKED

1016443, 1016484, 1017136, 1016518, 1016898, 1016534, 1590140, 1016948, 1734897, 1016955, 1735930, 995704, 999755, 1619832, 1075282, 1075266, 756866, 1088574, 1727117, 1619840, 1691003, 1743323

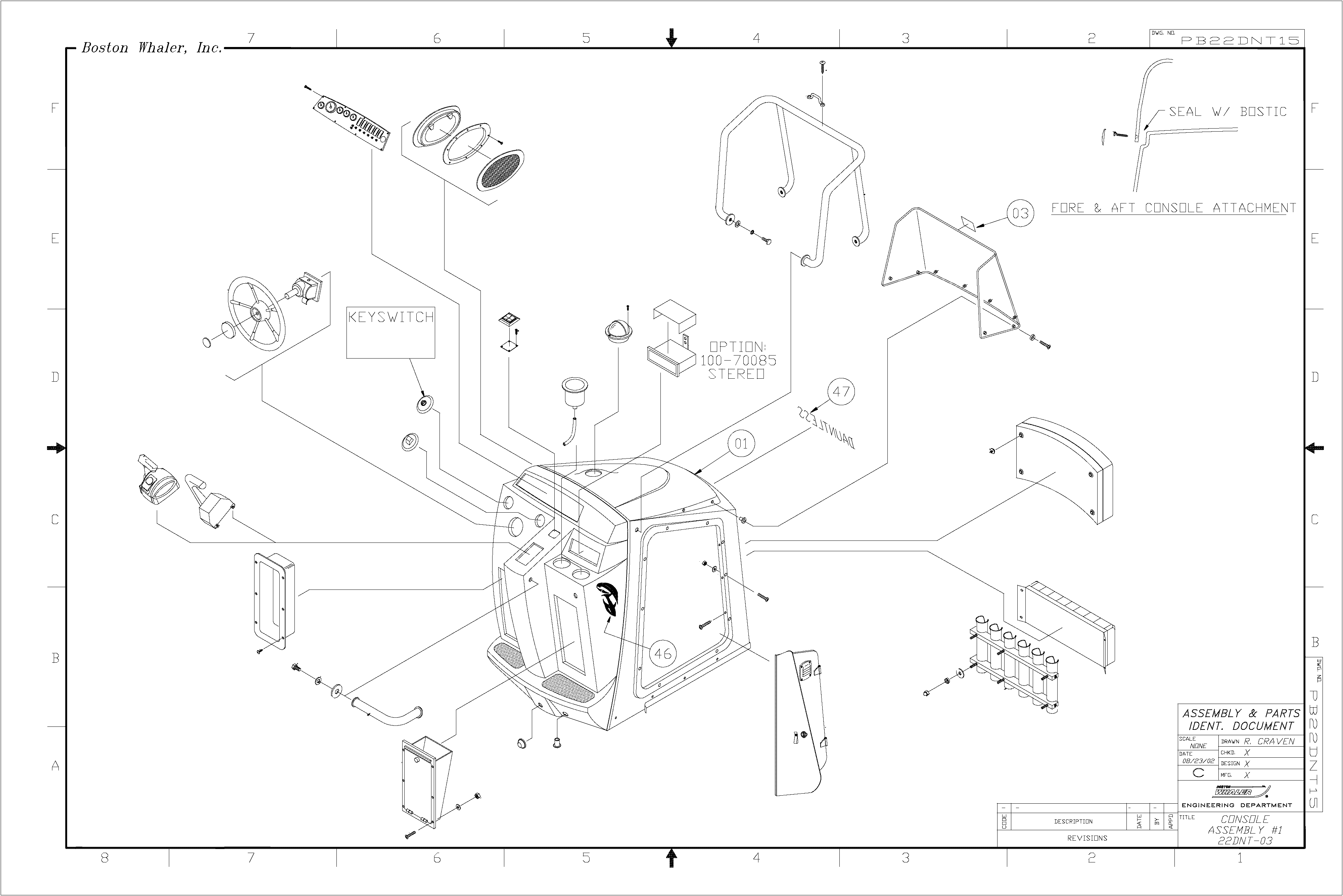

• 03) 1016955 - LABEL, WINDSHIELD CARE
• 46) 0998831 - DECAL, BW TUNA FIRE RED
• 47) 1030683 - DECAL, BW DAUNTLESS DK GRAY HIBOSSCAL

1016955, 0998831, 1030683,

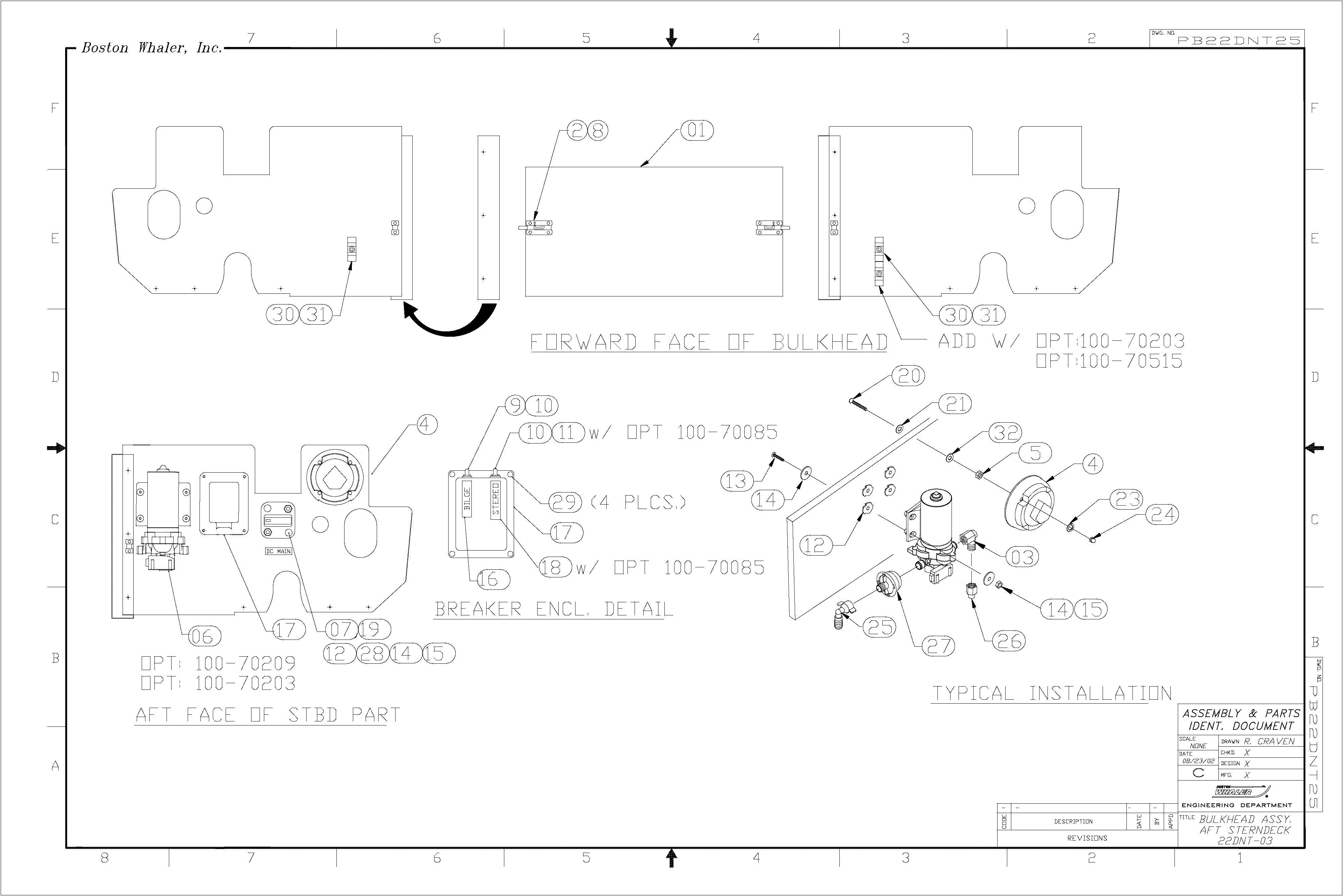

• 16) 0756866 - LABEL, BILGE PATT
• 18) 1075266 - LABEL, BW STEREO
• 19) 1075282 - LABEL, BW DC MAIN BREAKER
• 23) 1021054 - EMBLEM, BW STEERING WHL CAP

0756866, 1075266, 1075282, 1021054,

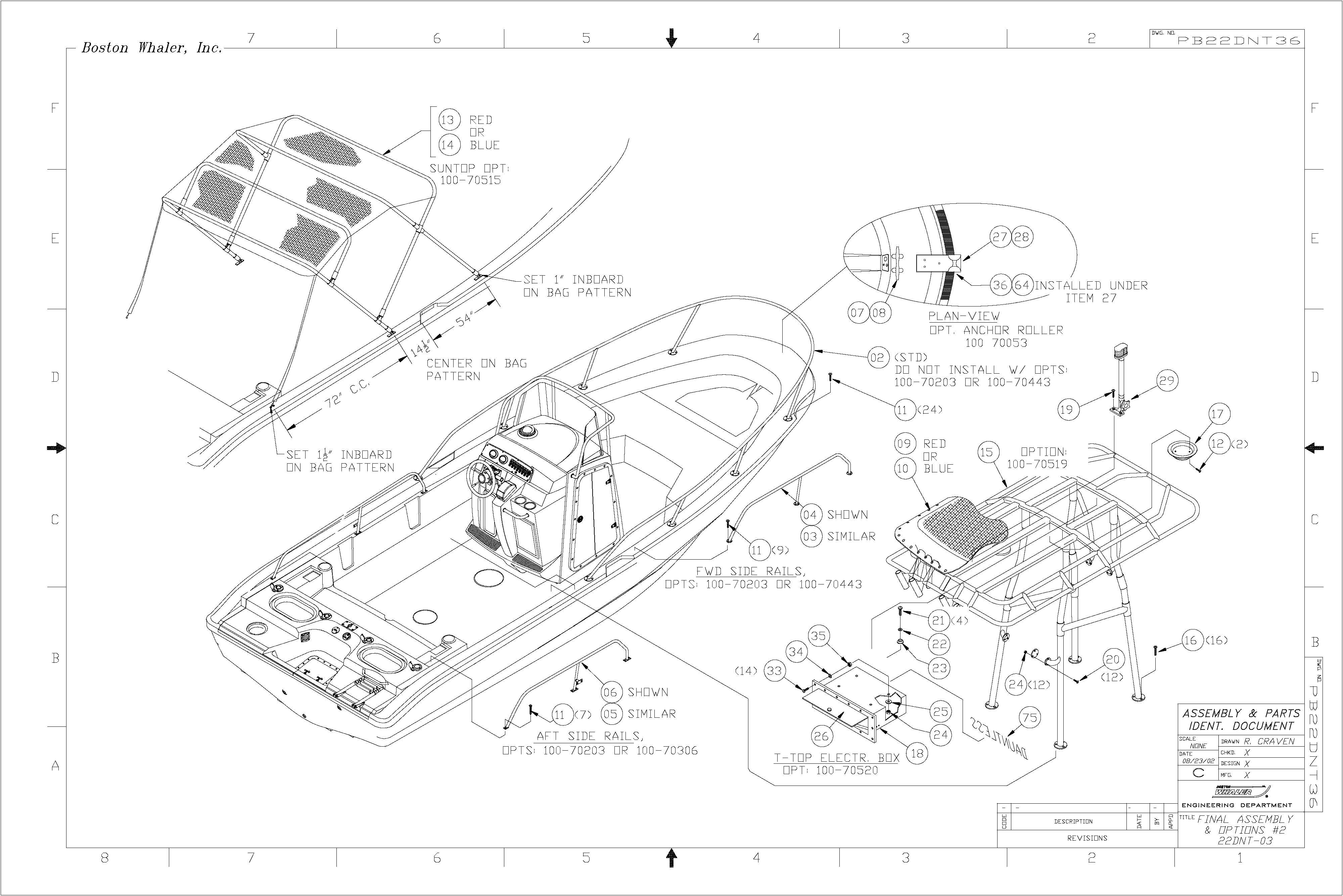

• 75) 1030683 - DECAL, BW DAUNTLESS DK GRAY HIBOSSCAL
