Evinrude/Johnson 200/225 - E200TXEOC 1995  EVINRUDE

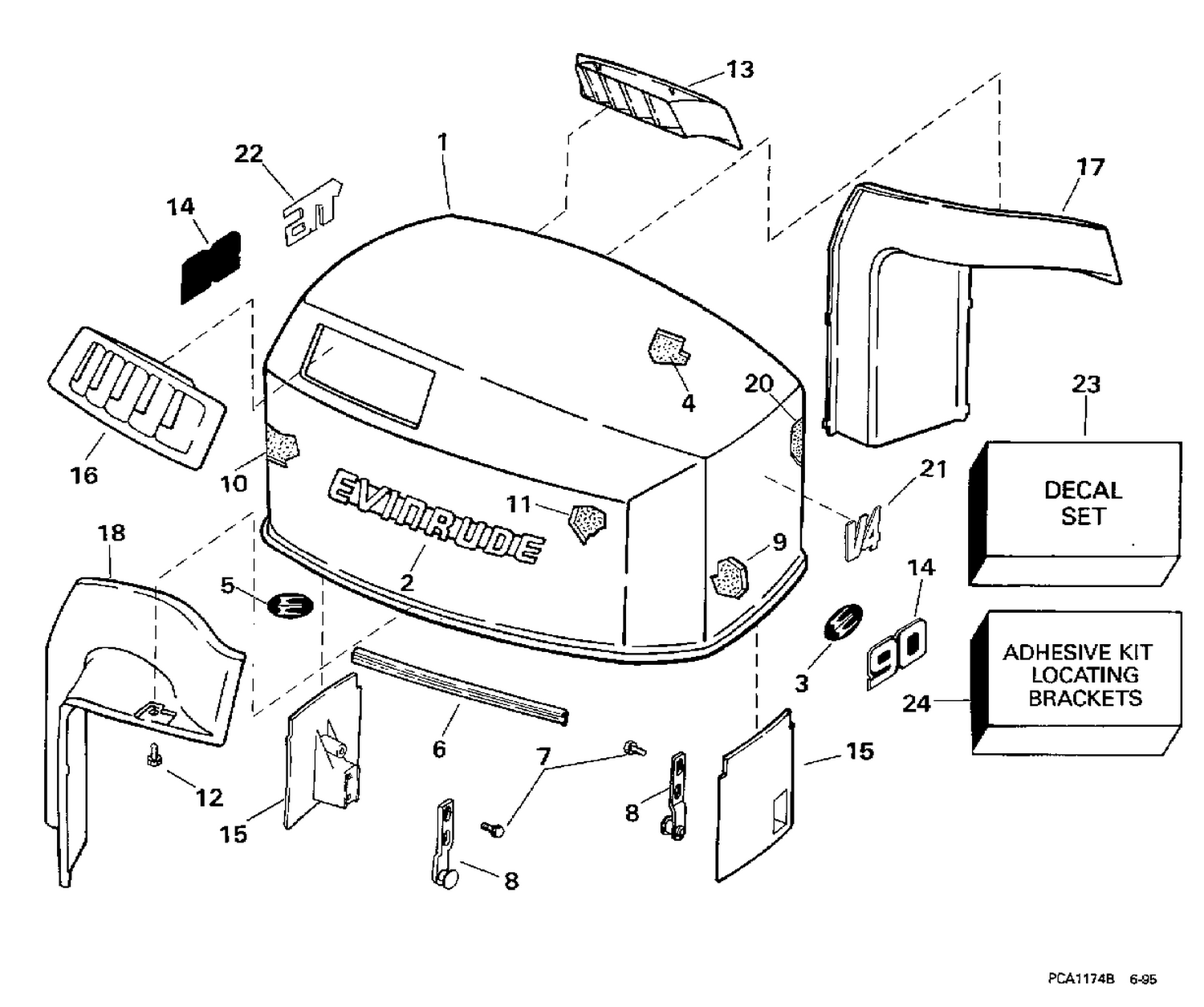

ENGINE COVER - EVINRUDE - 200STL, 225STL

0284760 ENGINE COVER ASSY., 200
0284761 ENGINE COVER ASSY., 225

0284760, 0284761, 0284442, 0284443, 0568528, 0435966, 0435967, 0568527, 0437293, 0437294,
0284760 0284761 0284442 0284443 0568528 0435966 0435967 0568527 0437293 0437294



EVINRUDE DECALS

11) 0212470 APPLIQUE, Front, V6
12) 0212478 APPLIQUE, Ev., port & stbd This part replaces 0212477.
18) 0212478 APPLIQUE, Ev., port & stbd
20) 0212479 LENS, Ev., port & stbd.
24) 0212468 LENS, 200 Rear
24) 0212469 LENS, 225 Rear
25) 0284889 DECAL SET, 200
25) 0284891 DECAL SET, 225

ENGINE COVER - EVINRUDE - 200TX, 200SL, 200CX, 225


0284442 ENGINE COVER ASSY., 200 White - Ocean Pro Styling
0284443 ENGINE COVER ASSY., 225 White - Ocean Pro Styling
0568528 ENGINE COVER ASSY., 200LE Blue - Limited Edition Styling

0284760, 0284761, 0284442, 0284443, 0568528, 0435966, 0435967, 0568527, 0437293, 0437294,
0284760 0284761 0284442 0284443 0568528 0435966 0435967 0568527 0437293 0437294

EVINRUDE DECALS (Ocean Pro)

19) 0284545 DECAL SET, 200
19) 0284546 DECAL SET, 225
19) 0284892 DECAL SET, 200SL
21) 0211076 DECAL, Counter rotation



ENGINE COVER - JOHNSON - 200STL, 225STL


0437293 ENGINE COVER ASSY., 200
0437294 ENGINE COVER ASSY., 225



JOHNSON DECALS

20) 0340311 APPLIQUE, Front, V6
21) 0340565 APPLIQUE, 200 Rear
21) 0340566 APPLIQUE, 225 Rear
22) 0340301 APPLIQUE, Johnson  This part replaces 0341310.
23) 0437893 DECAL SET, 200
23) 0437915 DECAL SET, 225




ENGINE COVER - JOHNSON - 200TX, 200SL, 200CX, 225

0435966 ENGINE COVER ASSY., 200
0435967 ENGINE COVER ASSY., 225
0568527 ENGINE COVER ASSY., 200LE



JOHNSON DECALS ( Ocean Runner )

20) 0436348 DECAL SET, 200
20) 0436349 DECAL SET, 225
20) 0437916 DECAL SET, 200SL
22) 0211076 DECAL, Counter rotation

Evinrude/Johnson EVINRUDE 1995 25SI/25SIK 50/60/70 E70TLEOR 1995

Evinrude/Johnson EVINRUDE 1995 70 E70TLEOR 1995

https://cdn.datamanager.arinet.com/image/EJP/368d9177-1b24-43d4-8cb4-b8fc7ba933b3/Max

EVINRUDE ENGINE COVER DIAGRAM PCA0374B 3-95

1 0284670 ENGINE COVER ASSEMBLY, 25SI
1 0284805 ENGINE COVER ASSEMBLY, 50
1 0284732 ENGINE COVER ASSEMBLY, 60
1 0284733 ENGINE COVER ASSEMBLY, 70

0284670, 0284805, 0284732, 0284733
0284670 0284805 0284732 0284733



EVINRUDE DECALS

5 0212478 APPLIQUE, Ev., port & stbd This part replaces 0212477.
7 0211717 APPLIQUE, Ev., port & stbd, 60/70
18 0212870 LENS, 70JL
18 0212678 LENS, Front & rear, 60
18 0212679 LENS, Front & rear, 70

21 0284770 DECAL SET, 25SI models
18 0212614 APPLIQUE, Front & rear, 25SIK

21 0284837 DECAL SET





JOHNSON ENGINE COVER - DIAGRAM

1 0437116 ENGINE COVER ASSEMBLY, 25SIK
1 0438346 ENGINE COVER ASSEMBLY, 50 This part replaces 0437630.
1 0437629 ENGINE COVER ASSEMBLY, 50
1 0438343 ENGINE COVER ASSEMBLY, 60 This part replaces 0435727.
1 0437193 ENGINE COVER ASSEMBLY, 60
1 0438345 ENGINE COVER ASSY., 70 This part replaces 0435728.
1 0437194 ENGINE COVER ASSY., 70
1 0438062 ENGINE COVER ASSY., 70

0437116, 0438346, 0437629, 0438343, 0437193, 0438345, 0437194, 0438062,
0437116 0438346 0437629 0438343 0437193 0438345 0437194 0438062

JOHNSON DECALS

17 0437375 DECAL SET, 25SI models
17 0437762 DECAL SET, 50EL
13 0341993 LENS, Front & rear, 50

17 0437083 DECAL SET

17 0435630 DECAL SET, 60
13 0341142 LENS, Front & rear, 60

17 0435631 DECAL SET, 70 Models
17 0437081 DECAL SET, 70 models
13 0340568 APPLIQUE, 70



FUEL TANK

0332815 0332815 SPRAY PAINT, 12 oz., dark red

PAINT

PAINT

COLOR NAME

OMC SPRAY CAN

OMC CODE

OMC SPEC*

PPG CODE (1)

PPG CODE (2)

PRIMER

500103

-

1655

DP40401

-

WHITE

173744

81WJ1

1678

90538

-

RED

332815

85RJ1

1740

73107

-

BLACK

330446

85BJ1

1748

9696

-

METALLIC BLACK

431709

87BJ1

1773

9697

-

BLUE

211699

92BE1

1796

18319

18320

SMOKE

340416

94SMJ1

1821

35718

-

* IN HOUSE REFERENCE ONLY
(1) ONE COAT FINISH FOR MIDSECTION AND GEARCASE
(2) BASE COAT PLUS CLEARCOAT FOR UPPER AND LOWER ENGINE COVERS

Evinrude/Johnson EVINRUDE 1987 35/40/50 HP

Evinrude/Johnson EVINRUDE 1987 40 HP E40TLCUD

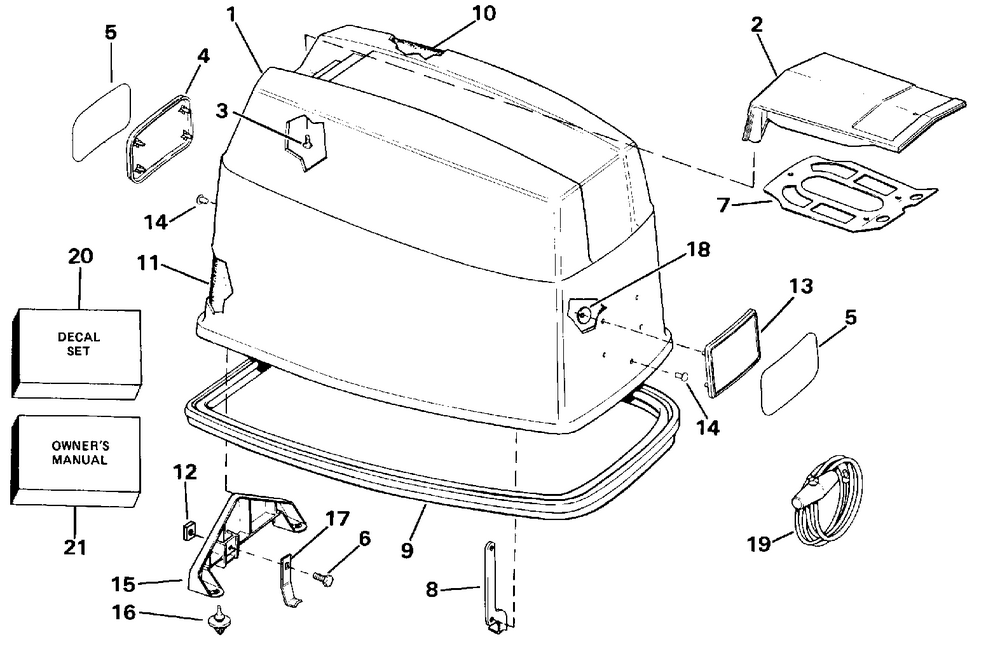

ENGINE COVER - EVINRUDE Diagram

1) 0283034 ENGINE COVER ASSY., 50 Ev.
1) 0283033 ENGINE COVER ASSY., 50 Ev.
1) 0283032 ENGINE COVER ASSY., 40 Ev.
1) 0283031 ENGINE COVER ASSY., 40 Ev.
1) 0283232 ENGINE COVER ASSY., Evinrude 35 models

0283034, 0283033, 0283032, 0283031, 0283232
0283034 0283033 0283032 0283031 0283232



Evinrude Decals

11) 0210459 PLATE, Applique, front 50 model
14) 0210629 PLATE, Applique, rear 50 model

0210459, 0210629, 028333,
0210459 0210629 028333

11) 0210497 PLATE, Applique, front 40 model
14) 0210625 PLATE, Applique, rear 40 model

0210497, 0210625, 028333,
0210497 0210625 028333

11) 0210887 PLATE, Applique, front 35 model
14) 0210891 PLATE, Applique, rear 35 model

0210887, 0210891, 028333,
0210887 0210891 028333,

26) 0283338 DECAL SET



More Articles …

  1. JOHNSON 2001 60/70 40JET
  2. 1973 JOHNSON 9.50 HP 9R73B
  3. 1983 EVINRUDE 35 HP
  4. EVINRUDE 1998 150 E150FCXECR

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
