HIGH PERFORMANCE 3.2L 300XS OPTIMAX Cat.# 90-8M0039651

 > Mercury Marine [Updated: Jun. 4, 2021] > Outboard > 2 Stroke DFI (OptiMax) > 300XS (3.2L DFI) > [1E052058 & Up] - USA - Cat.# 90-8M0039651



TOP COWL DIAGRAM 22280

881288T64 TOP COWL ASSEMBLY Includes all Decals [1E053148] & Below - Supersedes: 898103T93

8M0121265 TOP COWL ASSEMBLY Includes all Decals [1E053149] & Up

881288T64, 898103T93, 8M0121265
881288T64 898103T93 8M0121265



MERCURY DECALS

842782A04 DECAL SET [1E053148] & Below

This Mercury Marine 842782A04 DECAL SET is used on these Top Cowl models:
2006 MERCURY - 193241BHH, 193241CHH, 193241DHH, 193241EHH, 193241PHH, 193241QHH, 193247BHH, 193247DHH, 193247FHH, 193247GHH, 193248GHH, 19324B3HH, 19324B4HH, 19324BCHH, 19324BEHH, 19324BPHH, 19324BQHH, 19324C3HH, 19324C4HH, 19324CCHH, 19324CEHH, 19324CPHH, 19324CQHH.


8M0121263 DECAL SET [1E053149] & Up - 300XS

8M0065117 DECAL SET

Serial Number: 1E052541 - Model: 193247GIH - Model Version: L TM
RACE OUTBOARD 2013 300 XS HIGH PERFORMANCE 3.2L 300XS OPTIMAXH 1.75:1 300 XS L TM
Serial Number:1E052099 - Model: 193247BIH - Model Version: L SM - 300XS (3.2L)
RACE OUTBOARD 2013 300 XS HIGH PERFORMANCE 3.2L 300XS OPTIMAX 1.62:1 300 XS L SM

Model Number:
193247BIH
Serial Number:
1E052099
300XS L
HP 300 KW 221
LB 505 KG 229
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
 [13]
Serial Number: 1E053049 - Model:193247DIH
2016 HIGH PERFORMANCE 3.2L 300XS OPTIMAX 1.75:1 300 XS L SM

Model Number
193247DIH
Serial Number:
1E053049
300XS L
HP 300 KW 221
LB 505 KG 229
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
[16]

115 PRO XS (4-STROKE) - Cat.# 90-8M0114280

> Mercury Marine [Updated: Aug. 1, 2026] > Outboard > 4 Stroke EFI > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: May. 5, 2025] > Outboard > 4 Stroke EFI > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M011428090-8M0114280


Top Cowl Diagram 55117

8M0114282 TOP COWL ASSEMBLY Mercury Pro XS Decaled
8M0091789 TOP COWL ASSEMBLY Black, Non-Decaled

Will also fit on:
8M0087994 TOP COWL ASSEMBLY Mercury Decaled Horse Power, Command Thrust and Jet Decals not included
8M0159539 TOP COWL ASSEMBLY Mercury Decaled New models [2B679490] & Up
8M0090833 TOP COWL ASSEMBLY Mariner Decaled Horse Power, Command Thrust and Jet Decals not included
8M0091789 TOP COWL ASSEMBLY Black, Non-Decaled
8M0087995 TOP COWL ASSEMBLY Gray, Non-Decaled
8M0096296 TOP COWL ASSEMBLY Mercury, Decaled SeaPro

8M0114282, 8M0091789, 8M0087994, 8M0159539, 8M0090833, 8M0091789, 8M0087995, 8M0096296
8M0114282 8M0091789 8M0087994 8M0159539 8M0090833 8M0091789 8M0087995 8M0096296



MERCURY DECALS

> Mercury Marine [Updated: May. 5, 2025] > Outboard > 4 Stroke EFI > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M0114280

Decals-Top and Lower Cowl

1) 8M0114440 DECAL SET Top Cowl 115 HP ProXS
2) 8M0159890 DECAL Lenz Mercury
3) 8M0178226 DECAL M-ICON, Red
4) 8M0159386 DECAL CT - Command Thrust
5) 8M0080155 DECAL - M ICON 29 MM Red
6) 8M0085373 DECAL M-Icon, 60mm Red
7) 8M0114441 DECAL SET Lower Cowl 115 HP ProXS



> Mercury Marine [Updated: Jan. 27, 2023] > Outboard > 4 Stroke > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Mar. 29, 2022] > Outboard > 4 Stroke > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Jul. 28, 2018] > Outboard > 4 Stroke > 115 PRO XS (4-STROKE) > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Oct. 16, 2019] > Outboard > 4 Stroke > 115 PRO XS (4-STROKE) > [2B225488 & Up] - USA - Cat.# 90-8M0114280

Decals-Top and Lower Cowl Diagram 60348

1) 8M0114440 DECAL SET Top Cowl 115 HP ProXS

N2) 8M0159386 DECAL CT - Command Thrust

N3) 8M0178226 DECAL M-ICON, Red - Top M Logo
3) 8M0080155 DECAL - M ICON 29 MM Red - Rear M Logo
4) 8M0085373 DECAL M-Icon, 60mm Red - Front M Logo

2-N6) 8M0114441 DECAL SET Lower Cowl 115 HP ProXS - Lower cowl stripes



(14x29 2.07:1) Ratio decal for the lower unit

Gear Housing, Driveshaft 2.07:1 Standard Rotation
Gear Housing, Propeller Shaft 2.07:1 Standard Rotation

8M0088072 GEARCASE Complete Long

8M0144823 GEARCASE Complete, Long Silver
+ 8M0227980 GC ASSY-L SLVR ST

8M0088074 GEARCASE Complete X-Long

8M0144824 GEARCASE Complete, X-Long Silver
+ 8M0227981 GC ASY-XL SLVR ST

8M0091538 GEARCASE Basic

8M0145316 GEAR HOUSING Basic Silver
+ 8M0227985 GEARCASE-BASIC ST



(13x31 2.38:1) Ratio decal for the lower unit

Gear Housing, Driveshaft 2.38:1 Standard Rotation

8M0057747 GEAR HOUSING Basi
8M0145314 GEAR HOUSING Basic (CT) Silver


Gear Housing, Propeller Shaft 2.38:1 Standard Rotation

8M0088073 GEARCASE Complete CT Long

8M0144825 GEARCASE Complete CT Long
+ 8M0227982 GC ASY-L SLVR CT

8M0088075 MERCURY OEM GC X-LONG CT
8M0144826 GEARCASE Complete CT X-Long
+ 8M0227983 GC ASY-XL SLVR CT

Read more: 115 PRO XS (4-STROKE) - Cat.# 90-8M0114280

40/50/60 EFI (4 Cylinder) 4-Stroke - Cat.# 90-88387502

> Mercury Marine [Updated: Aug. 19, 2025] > Outboard > 4 Stroke EFI > 60 HP EFI 4 CYL > [0P153500 THRU 0P400999] - Belgium - Cat.# 90-88387502
> Mercury Marine [Updated: May. 17, 2022] > Outboard > 4 Stroke > 50 HP EFI 4 CYL > [0T409000 THRU 1B355222] - USA - Cat.# 90-88387502
> Mercury Marine [Updated: Feb. 14, 2020] > Outboard > 4 Stroke > 60 EFI (4 CYL.)(4-STROKE) > [0T409000 THRU 1B355222] - USA - Cat.# 90-88387502
> Mercury Marine [Updated: Nov. 9, 2019]  > Outboard > 4 Stroke > 50 EFI (4 CYL.)(4-STROKE) > [0T409000 THRU 1B355222] - USA - Cat.# 90-88387502
> Mercury Marine [Updated: Aug. 23, 2019] > Outboard > 4 Stroke > 60 EFI (4 CYL.)(4-STROKE) > [0T409000 THRU 1B355222] - USA - Cat.# 90-88387502
> Mercury Marine [Updated: Apr. 6, 2018]  > Outboard > 4 Stroke > 60 EFI (4 CYL.)(4-STROKE) > [0T409000 THRU 1B355222] - USA - Cat.# 90-88387502



TOP COWL DIAGRAM 1747

1

825239T3 TOP COWL ASSEMBLY (Black)
+ 875300T36 TOP COWL ASSEMBLY (Black)

825239A3 TOP COWL ASSEMBLY (Black)

825239T4 TOP COWL ASSEMBLY (Silver) Supersedes: 825239A4 TOP COWL ASSEMBLY (Silver)

875300T37 TOP COWL ASSEMBLY (Silver)

875300T36, 825239T3, 825239A3, 825239T4, 825239A4, 875300T37,
875300T36 825239T3 825239A3 825239T4 825239A4 875300T37

MERCURY DECALS

883592A02 DECAL SET (Merc 40)(2002-2004)
883592A05 DECAL SET (Merc 40)(2005)
+ 8M0114762 DECAL-SERVICE KIT

883592A06 DECAL SET (Merc 40)(2006)
+ 8M0114767 DECAL-SERVICE KIT

883525A02 DECAL SET (Merc 50)(2002-2004)
883525A05 DECAL SET (Merc 50)(2005)
+ 8M0114762 DECAL-SERVICE KIT

883525A06 DECAL SET (Merc 50)(2006)
+ 8M0114767 DECAL-SERVICE KIT

883526A02 DECAL SET (Merc 60)(2002-2004)
883526A05 DECAL SET (Merc 60)(2005)
+ 8M0114762 DECAL-SERVICE KIT

883526A06 DECAL SET (Merc 60)(2006)
+ 8M0114767 DECAL-SERVICE KIT



MARINER DECALS

883541A02 DECAL SET (Mariner 40)(2002)
883541A03 DECAL SET (Mariner 40)(2003 and Above)

883533A02 DECAL SET (Mariner 50)(2002)
883533A03 DECAL SET (Mariner 50)(2003 and Above)

883534A02 DECAL SET (Mariner 60)(2002)
883534A03 DECAL SET (Mariner 60)(2003 and Above)

TRACKER DECALS

883592A02 DECAL SET (Tracker 40)(2002-2004)
883592A05 DECAL SET (Tracker 40)(2005)
883592A06 DECAL SET (Tracker 40)(2006)

883525A02 DECAL SET (Tracker 50)(2002-2004)
883525A05 DECAL SET (Tracker 50)(2005)
883525A06 DECAL SET (Tracker 50)(2006)

883526A02 DECAL SET (Tracker 60)(2002-2004)
883526A05 DECAL SET (Tracker 60)(2005)
883526A06 DECAL SET (Tracker 60)(2006)

OTHER DECALS:

883830A02 DECAL, EPA Label Information (2002)
883830A03 DECAL, EPA Label Information (2003)
883830A04 DECAL, EPA Label Information (2004)
883830A05 DECAL, EPA Label Information (2005)
883830A06 DECAL, EPA Label Information (2006)

Read more: 40/50/60 EFI (4 Cylinder) 4-Stroke - Cat.# 90-88387502

75/90 HP 65 JET (3 CYLINDER) - Cat.# 90-81589894

 > Mercury Marine [Updated: Aug. 1, 2019] > Outboard > 2 Stroke Carb > 90 (3 CYL.) > [0D283222 THRU 0G760299] - USA - Cat.# 90-81589894

TOP COWL (S/N-USA-0G301751/BEL-9885505 and Up)

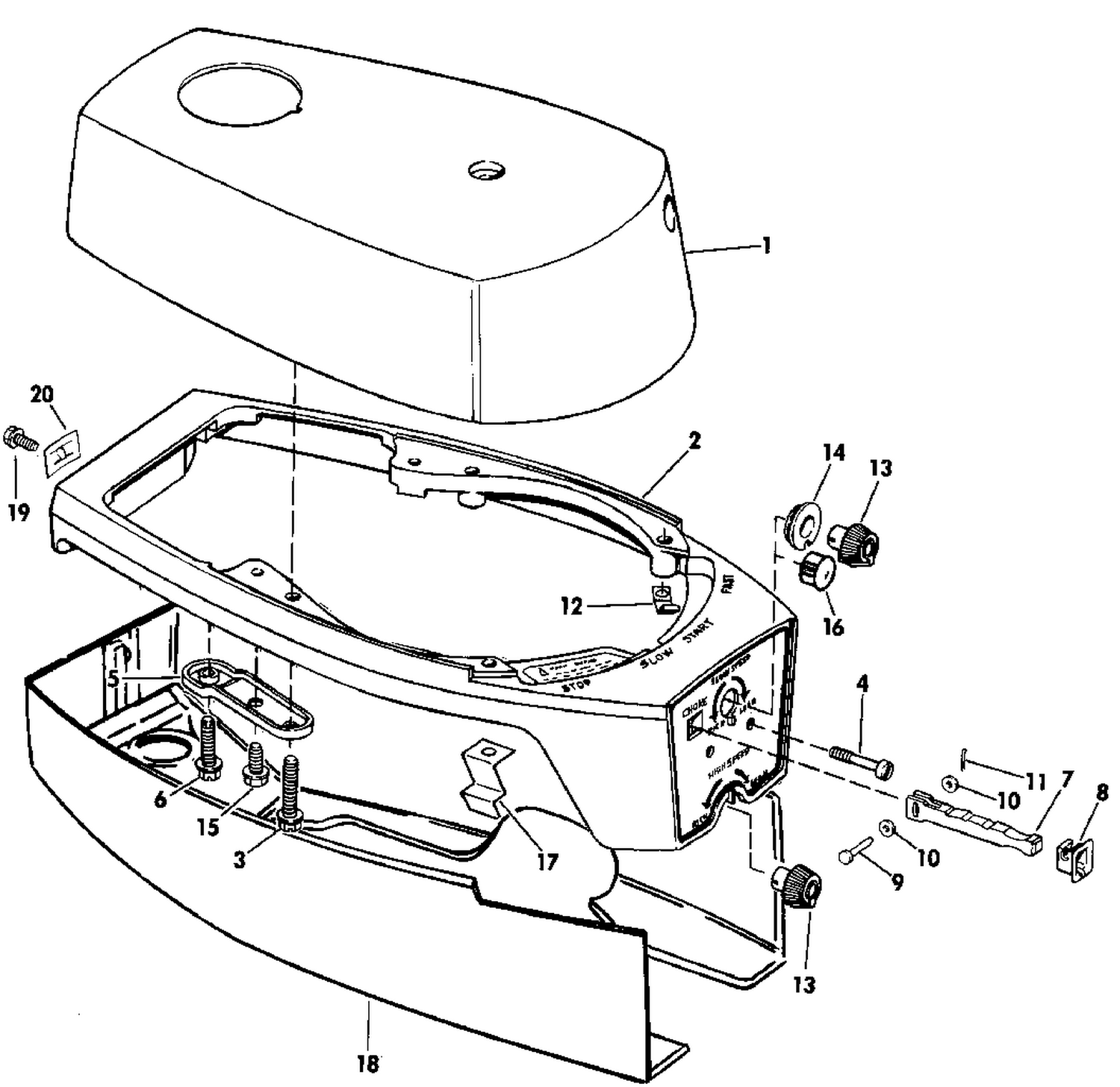

TOP COWL DIAGRAM 37309

TOP COWL (S/N-USA-0G301751/BEL-9885505 and Up)

828353T 7 TOP COWL ASSEMBLY (Black-Electric) - Supersedes: 828353A 7
828353A7 TOP COWL ASSEMBLY (BLACK-ELECTRIC)
+ 8M0107146 COWL-TOP, BLACK

828353A8 TOP COWL ASSEMBLY (SILVER-ELECTRIC)
+ 828353T8 TOP COWL ASSEMBLY (SILVER-ELECTRIC)

828353A9 TOP COWL ASSEMBLY (TRACKER-SILVER COWL/BLACK CAP)
+ 828353T9 TOP COWL ASSEMBLY (TRACKER-SILVER COWL/BLACK CAP)

828354A6 TOP COWL ASSEMBLY (BLACK-MANUAL)
+ 828354T6 TOP COWL ASSEMBLY  (BLACK-MANUAL) -  Supersedes: 828354A 6, 822361A15, 822361A 8

828354A7 TOP COWL ASSEMBLY (SILVER-MANUAL)  - Supersedes: 822361A16, 822361A 9

828353T7, 8M0107146, 828353A8, 828353T8, 828353A9, 828353T9, 828354A6, 828354T6, 828354A6, 822361A15,  822361A8 828354A7, 822361A16, 822361A9
828353T7 8M0107146 828353A8 828353T8 828353A9 828353T9 828354A6 828354T6 828354A6 822361A15  822361A8 828354A7 822361A16 822361A9

TOP COWL (S/N-USA-0G301750/BEL-9885504 and BELOW)
TOP COWL DIAGRAM 37429

822360A14 TOP COWL ASSEMBLY (BLACK)(ELECTRIC)- Supersedes: 822360A 6
822360A15 TOP COWL ASSEMBLY (SILVER)(ELECTRIC) - Supersedes: 822360A 7, 822360A16, 822360A 9
822360A16 TOP COWL ASSEMBLY (GRAY)(ELECTRIC)

828353A12 TOP COWL ASSEMBLY (TRACKER-GRAPHITE GRAY)(ELECTRIC)
+ 828353A10 TOP COWL-BL-B/F - (TRACKER-GRAPHITE GRAY)(ELECTRIC)

822361A15 TOP COWL ASSEMBLY (BLACK)(MANUAL)
+ 828354T6 TOP COWL ASSEMBLY

822361A16 TOP COWL ASSEMBLY (GRAY)(MANUAL)
+ 828354A7 TOP COWL ASSEMBLY

822360A14, 822360A6, 822360A15, 822360A7, 822360A16, 822360A9, 828353A12, 828353A10, 822361A15, 828354T6, 822361A16, 828354A7,


ALL TOP COWLS
822360A14, 822360A6, 822360A15, 822360A7, 822360A16, 822360A9, 828353A12, 828353A10, 822361A15, 828354T6, 822361A16, 828354A7,
828353T7, 8M0107146, 828353A8, 828353T8, 828353A9, 828353T9, 828354A6, 828354T6, 828354A6, 822361A15,  822361A8 828354A7, 822361A16, 822361A9
822360A14 822360A6 822360A15 822360A7 822360A16 822360A9 828353A12 828353A10 822361A15 828354T6 822361A16 828354A7
828353T7 8M0107146 828353A8 828353T8 828353A9 828353T9 828354A6 828354T6 828354A6 822361A15  822361A8 828354A7 822361A16 822361A9



Service/Support Material DIAGRAM 37307

MERCURY OUTBOARD DECALS:

808549A96 DECAL SET (BLACK 75 ELECTRIC)
+ 808549A00 DECAL SET

823417A96 DECAL SET (BLACK 90/BLACK 75 ELECTRIC)
+ 823417A00 DECAL SET

826327A95 DECAL SET (BLACK 65 JET) (DESIGN I)
+ 826327A00 DECAL SET

826327A96 DECAL SET (BLACK 65 JET) (DESIGN II)
+ 826327A00 DECAL SET

826315A95 DECAL SET (75 ELECTRIC SEAPRO)
+ 826315A01 DECAL SET

826317A95 DECAL SET (75 MANUAL SEAPRO)
+ 826317A01 DECAL SET



824100A95 DECAL SET (75 SCATTO) INTERNATIONAL ENGINES
824099A95 DECAL SET (75 TYPHOON) INTERNATIONAL ENGINES



MARINER OUTBOARD DECALS:

823419A94 DECAL SET (GRAY 75 ELECTRIC) [USA-0G437999/BEL-9926999] & Below
+ 823419A01 DECAL SET

823420A94 DECAL SET (GRAY 90) [USA-0G437999/BEL-9926999] & Below
+ 823420A03 DECAL SET

826328A95 DECAL SET (GRAY 65 JET) [USA-0G437999/BEL-9926999] & Below
+ 826328A97 DECAL SET

823419A97 DECAL SET (GRAY 75 ELECTRIC) [USA-0G438000/BEL-9927000] & Up
+ 823419A01 DECAL SET

823420A97 DECAL SET (GRAY 90) [USA-0G438000/BEL-9927000] & Up
+ 823420A03 DECAL SET

826328A97 DECAL SET (GRAY 65 JET) [USA-0G438000/BEL-9927000] & Up



826316A95 DECAL SET (75 MANUAL MARATHON)
+ 826316A00 DECAL SET

826318A95 DECAL SET (75 ELECTRIC MARATHON)
+ 826318A03 DECAL SET





TRACKER DECALS



808571A94 DECAL SET (TRACKER 90)[0G301750] & Below
808622A94 DECAL SET (TRACKER 75)[0G301750] & Below
808622A96 DECAL SET (TRACKER 75)[0G301751] & Up
808571A96 DECAL SET (TRACKER 90)[0G301751] & Up

OTHER DECALS

85557710 DECAL EPA Label Information (1998)
+ 855577A10 REF OB SB 09-18

Serial Number: 0G548104 - Model: 1075412TD - Model Version: ELPTO - 1997 MERCURY 75 ELPTO


More Articles …

  1. 100/115/125 HP 80 JET (4 CYLINDER)
  2. 2013-2022 8/9.9 (209CC) 4-STROKE - Cat.# 90-892644A05
  3. 200/225/250/300 4.6L V8 PRO XS (4-STROKE) - Cat.# 90-8M0145604
  4. Welcome Back!

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
