> Mercury Marine [Updated: May. 5, 2025] > Outboard > 4 Stroke EFI > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M011428090-8M0114280

Top Cowl Diagram 55117

8M0114282 TOP COWL ASSEMBLY Mercury Pro XS Decaled
8M0091789 TOP COWL ASSEMBLY Black, Non-Decaled

Will also fit on:
8M0087994 TOP COWL ASSEMBLY Mercury Decaled Horse Power, Command Thrust and Jet Decals not included
8M0159539 TOP COWL ASSEMBLY Mercury Decaled New models [2B679490] & Up
8M0090833 TOP COWL ASSEMBLY Mariner Decaled Horse Power, Command Thrust and Jet Decals not included
8M0091789 TOP COWL ASSEMBLY Black, Non-Decaled
8M0087995 TOP COWL ASSEMBLY Gray, Non-Decaled
8M0096296 TOP COWL ASSEMBLY Mercury, Decaled SeaPro

8M0114282, 8M0091789, 8M0087994, 8M0159539, 8M0090833, 8M0091789, 8M0087995, 8M0096296
8M0114282 8M0091789 8M0087994 8M0159539 8M0090833 8M0091789 8M0087995 8M0096296

MERCURY DECALS

> Mercury Marine [Updated: May. 5, 2025] > Outboard > 4 Stroke EFI > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M0114280

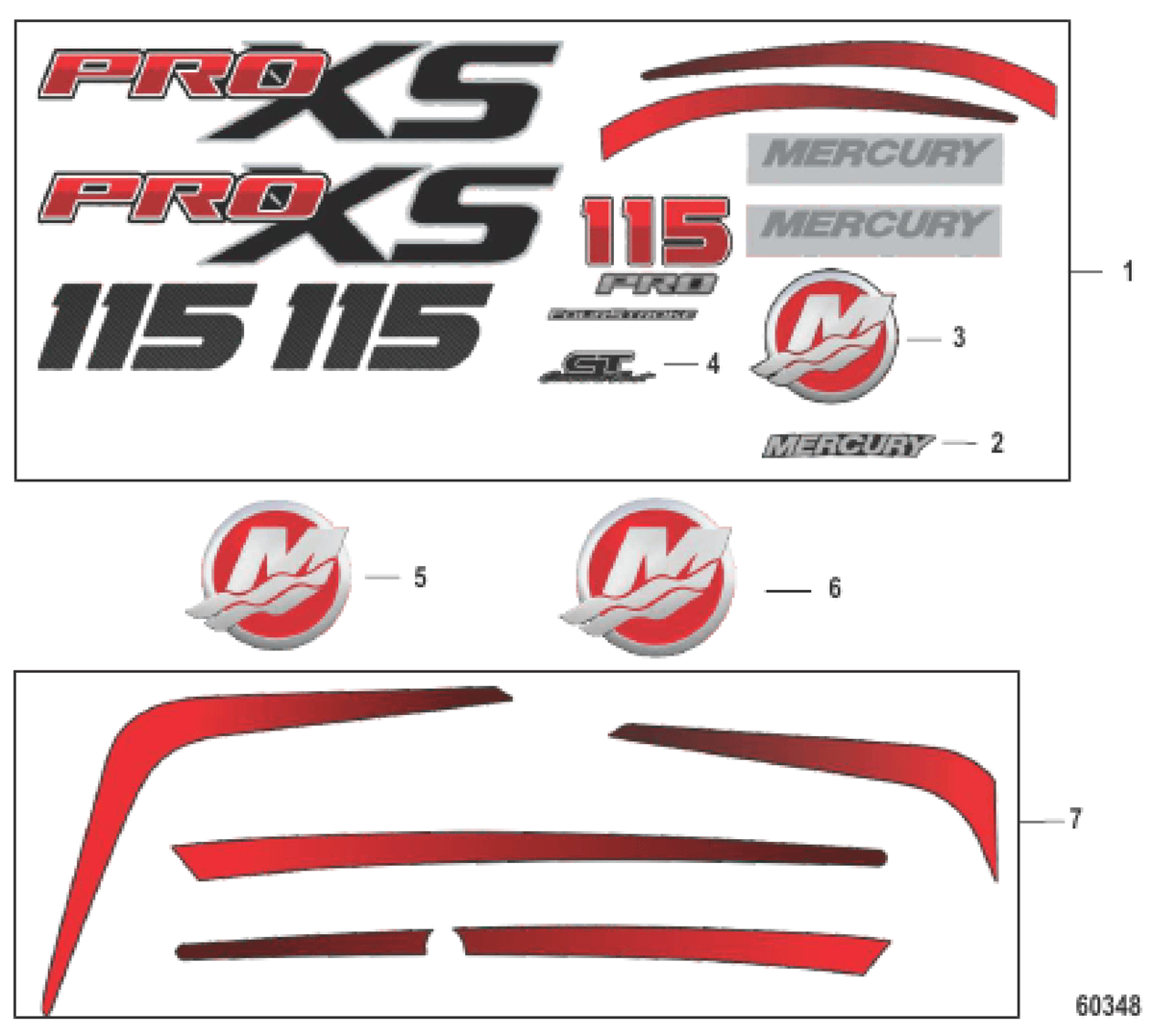

Decals-Top and Lower Cowl

1) 8M0114440 DECAL SET Top Cowl 115 HP ProXS
2) 8M0159890 DECAL Lenz Mercury
3) 8M0178226 DECAL M-ICON, Red
4) 8M0159386 DECAL CT - Command Thrust
5) 8M0080155 DECAL - M ICON 29 MM Red
6) 8M0085373 DECAL M-Icon, 60mm Red
7) 8M0114441 DECAL SET Lower Cowl 115 HP ProXS

> Mercury Marine [Updated: Jan. 27, 2023] > Outboard > 4 Stroke > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Mar. 29, 2022] > Outboard > 4 Stroke > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Jul. 28, 2018] > Outboard > 4 Stroke > 115 PRO XS (4-STROKE) > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Oct. 16, 2019] > Outboard > 4 Stroke > 115 PRO XS (4-STROKE) > [2B225488 & Up] - USA - Cat.# 90-8M0114280

Decals-Top and Lower Cowl Diagram 60348

1) 8M0114440 DECAL SET Top Cowl 115 HP ProXS

N2) 8M0159386 DECAL CT - Command Thrust

N3) 8M0178226 DECAL M-ICON, Red - Top M Logo
3) 8M0080155 DECAL - M ICON 29 MM Red - Rear M Logo
4) 8M0085373 DECAL M-Icon, 60mm Red - Front M Logo

2-N6) 8M0114441 DECAL SET Lower Cowl 115 HP ProXS - Lower cowl stripes

(14x29 2.07:1) Ratio decal for the lower unit

Gear Housing, Driveshaft 2.07:1 Standard Rotation
Gear Housing, Propeller Shaft 2.07:1 Standard Rotation

8M0088072 GEARCASE Complete Long

8M0144823 GEARCASE Complete, Long Silver
+ 8M0227980 GC ASSY-L SLVR ST

8M0088074 GEARCASE Complete X-Long

8M0144824 GEARCASE Complete, X-Long Silver
+ 8M0227981 GC ASY-XL SLVR ST

8M0091538 GEARCASE Basic

8M0145316 GEAR HOUSING Basic Silver
+ 8M0227985 GEARCASE-BASIC ST

(13x31 2.38:1) Ratio decal for the lower unit

Gear Housing, Driveshaft 2.38:1 Standard Rotation

8M0057747 GEAR HOUSING Basi
8M0145314 GEAR HOUSING Basic (CT) Silver

Gear Housing, Propeller Shaft 2.38:1 Standard Rotation

8M0088073 GEARCASE Complete CT Long

8M0144825 GEARCASE Complete CT Long
+ 8M0227982 GC ASY-L SLVR CT

8M0088075 MERCURY OEM GC X-LONG CT
8M0144826 GEARCASE Complete CT X-Long
+ 8M0227983 GC ASY-XL SLVR CT

Serial Number: 2B487107 - Model: 1117F131D - Model version: 115 ELPT
2019 MERCURY 115 ELPT PRO XS FOURSTROKE 115 ELPT

Serial Number: 3B169148 Model: 1117F531D Model Version: ELPT
2022 MERCURY 115 ELPT PRO XS CT FOURSTROKE 115 ELPT

Serial Number: 3B118255 - Model: 1117F531D - Model Version: ELPT
MERCURY 115 ELPT PRO XS CT FOURSTROKE 115 ELPT

Serial Number:
|||||||||||||
1117F531D
Serial Number
|||||||||||||
3B118255
115LXSCT
HP 115 KW 84.6
LB 364 KG 165
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
CE 0098 [Check triangle]
CAN ICES -2/NMB-2

Serial Number: 3B310066 - Model: 1117F531D - Model Version: ELPT
MERCURY 115 ELPT PRO XS CT FOURSTROKE 115 ELPT

Model Number
1117F531D
Serial Number
3B310066
115LXSCT
HP 115 KW 84.6
LB 364 KG 165
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components*
CE 0098
