180-Dauntless-Graphics-Options-Assembly-Parts-List-2002

BLUE GRAPHICS

01. 1030683 – DECAL, BW DAUNTLESS DK GRAY HIBOSSCAL
12. 1620871 – DECAL, BW 180 CORBIN DK BLUE HIBOSSCAL

02. 0998450 – DECAL, BW HARPOON PORT CORBIN DE BLUE
04. 0998476 – DECAL, BW HARPOON STBD CORBIN DE BLUE
10. 1037985 – TAPE, SOLID 1" CORBIN DK BLUE W/ PIN STRIP – 24 FT

06. 1452671 – DECAL, BW LOGO 18" BLUE PORT
08. 1457662 – DECAL, BW LOGO 18" BLUE STBD

RED GRAPHICS

01. 1030683 – DECAL, BW DAUNTLESS DK GRAY HIBOSSCAL
13. 1620848 – DECAL, BW 180 FIRE RED HIBOSSCAL

03. 0998559 – DECAL, BW HARPOON PORT FIRE RED
05. 0998609 – DECAL, BW HARPOON STBD FIRE RED
11. 1038009 – TAPE, SOLID 1" FIRE RED W/ PIN STRIPE – 24 FT

07. 1452663 – DECAL, LOGO 18" RED PORT
09. 1457654 – DECAL, BW LOGO 18" RED STBD

LABELS

01. 1016518 – LABEL, BW STEERING PULL WARNING
02. 1016534 – LABEL, BW WARNING FUEL GAUGE READ
03. 1590140 – LABEL, WARNING SKI PYLON / TOW ROPE
04. 1016948 – LABEL, BW WARNING SWIM PLATFORM
08. 1016443 – LABEL, BW FUEL TANK - NO DRILL
09. 1017136 – LABEL, BW SAFETY HI-PERF BOAT
10. 1075266 – LABEL, BW STEREO
11. 1016898 – LABEL, BW VENT HOSE NO DRILL
12. 1016955 – LABEL, BW WINDSHIELD CARE
14. 0995704 – PLATE, WARNING FUEL HAZARD
15. 1526797 – PLATE, BUILDERS CE 02-BW180DA
16. 1526730 – PLATE, NMMA 02-BW180DA
17. 0999755 – TAG, BW DO NOT PULL RIGGING
18. 1016906 – LABEL, BW WARNING DO NOT STORE FUEL

PARTS LIST
BOAT MODEL: 20' OUTRAGE CONSOLE
DOCUMENT CONTROL NO: PB2000R6

B.W.I. NO. - DESCRIPTION

1017128 - LABEL, NOTICE STEERING 235 HP
1016518 - LABEL, STEERING PULL WARNING
0998799 - DECAL, SAILFISH FIRF RED
0998773 - DECAL, SAILFISH CORBIN DK BLUE
0998781 - DECAL, SAILFISH DK GREEN
0998732 - DECAL, OR DK GREY, HIBOS.
1016534 - LABEL, BW WARNING FUEL GAUGE
1016898 - LABEL, BE VENT HOSE NO DRILL
1016443 - LABEL, BW FUEL TANK - NOT DRILL
1016484 - LABEL, BW NO SMOKING FUEL VENT
0995704 - PLATE, WARNING FUEL HAZARD
1017136 - LABEL, BW SAFETY HI-PERF. BOAT
1016963 - LABEL, BW WARNING WIRE
0995803 - PLATE, NMMA

97. 0998732 - DECAL, BW OR DK GREY HIB.
98. 0997858 - DECAL, BW 20' FIRE RED HIB.
98. 1030691 - DECAL, BW 20' CORBIN DK BLU
98. 0997841 - DECAL, BW 20' DK GRN HIB.
99. 0998104 - DECAL, BW LOGO 28" FIRE RED
99. 0998088 - DECAL, BW LOGO 28" CORBIN BLUE
99. 0998096 - DECAL, BW LOGO 28" DK GRN
100. 1038009 - TAPE, SOLID 1” DK GREEN W/STRAP
100. 1037985 - TAPE, SOLID 1" CORBIN DK BLU W/STRAP
100. 1037993 - TAPE, SOLID 1" DK GREEN W/STRAP
101. 998559 - DECAL, HARP PORT FIRE RED
101. 998450 - DECAL, HARP PORT CORBIN BLUE
101. 998542 - DECAL, HARP PORT DK GREEN
102. 998609 - DECAL, HARP STRBD FIRE RED
102. 998476 - DECAL, HARP STRBD CORBIN BLUE

MODEL YEAR 2003 PARTS LIST
BOAT MODEL: 255 CONQUEST-03
DOCUMENT CONTROL NO: PB255CQ81

ITEM  -  B.W.I. NO.  -  DESCRIPTION

BLUE
1. 1452762 - DECAL, BW LOGO 28" BLUE PORT
2. 1457696 - DECAL, BW LOGO 28" BLUE STBD
5. 1038090 - TAPE, SOLID 1/2" CORBIN DK BLUE W/ PIN STRIP 30 FT Console stripe
7. 1658541 - TAPE, SOLID 2" CORBIN DK BLUE W/ PIN STRIP 50 FT Bootstripe (Water line)
9. 1621705 - DECAL, BW-02 255CQ CORBIN DK BLUE Conquest 255 Logo

RED
3. 1452754 - DECAL, BW LOGO 28" RED PORT
4. 1457688 - DECAL, BW LOGO 28" RED STBD
6. 1038116 - TAPE, SOLID 1/2" FIRE RED W/ PIN STRIP 30 FT Console stripe
8. 1658533 - TAPE, SOLID 2" FIRE RED W/ PIN STRIP 50 FT Bootstripe (Water line)
10. 1621697 - DECAL, BW-02 255CQ FIRE RED Bootstripe

MODEL YEAR 2003 PARTS LIST
BOAT MODEL: 255 CONQUEST-03
DOCUMENT CONTROL NO: PB255CQ79

ITEM  - B.W.I. NO.  -   DESCRIPTION

11. 1016948 - LABEL, BW WARNING SWIM PLATFORM
12. 1727512 - PLATE, NMMA 03-BW255CQ
13. 1745156 - LABEL, NOTICE OVERBOARD DISCHARGE
14. 1672112 - LABEL, WARNING RUNNING BOAT W/DOOR OPEN
15. 995704 - PLATE, WARNING FUEL HAZARD
16. 1016484 - LABEL, BW NO SMOKING FUEL VENT
17. 1017144 - LABEL, BW WARNING TRANSOM DOOR
18. 1110675 - LABEL, BW WARNING CARBON MONOXIDE
19. 1744737 - LABEL, DISCHARGE OF OIL
20. 1051762 - PLATE, BW, 230CQ-97 BATT PARALLEL DETAILS
21. 1691003 - WARNING, DO NOT STORE FUEL
22. 1212596 - LABEL, ANCHOR WINDLASS (LEXAN)
23. 1075282 - LABEL, BW DC MAIN BRKR
24. 1075266 - LABEL, BW STEREO
25. 1396720 - LABEL, BW DIGITAL OPTIMAX POSITIVE
26. 756866 - LABEL, BILGE (LEXAN)
27. 1727513 - PLATE, BUILDERS CE 03-BW255CQ
28. 943530 - LABEL, WARNING DO NOT OCCUPY SEAT
29. 1017136 - LABEL, BW SAFETY HI-PERF BOAT
30. 1689650 - LABEL, BW CAUTION FISHWELL DRAIN PLUG
31. 1735929 - PLATE, BW-03 MAX ENG WT 1220LB/553KG
32. 1743323 - DECAL, MERC SMARTCRAFT NETWORKED
33. 1746027 - PLATE, SAFETY CANADIAN CONFORMITY BW255CQ-03

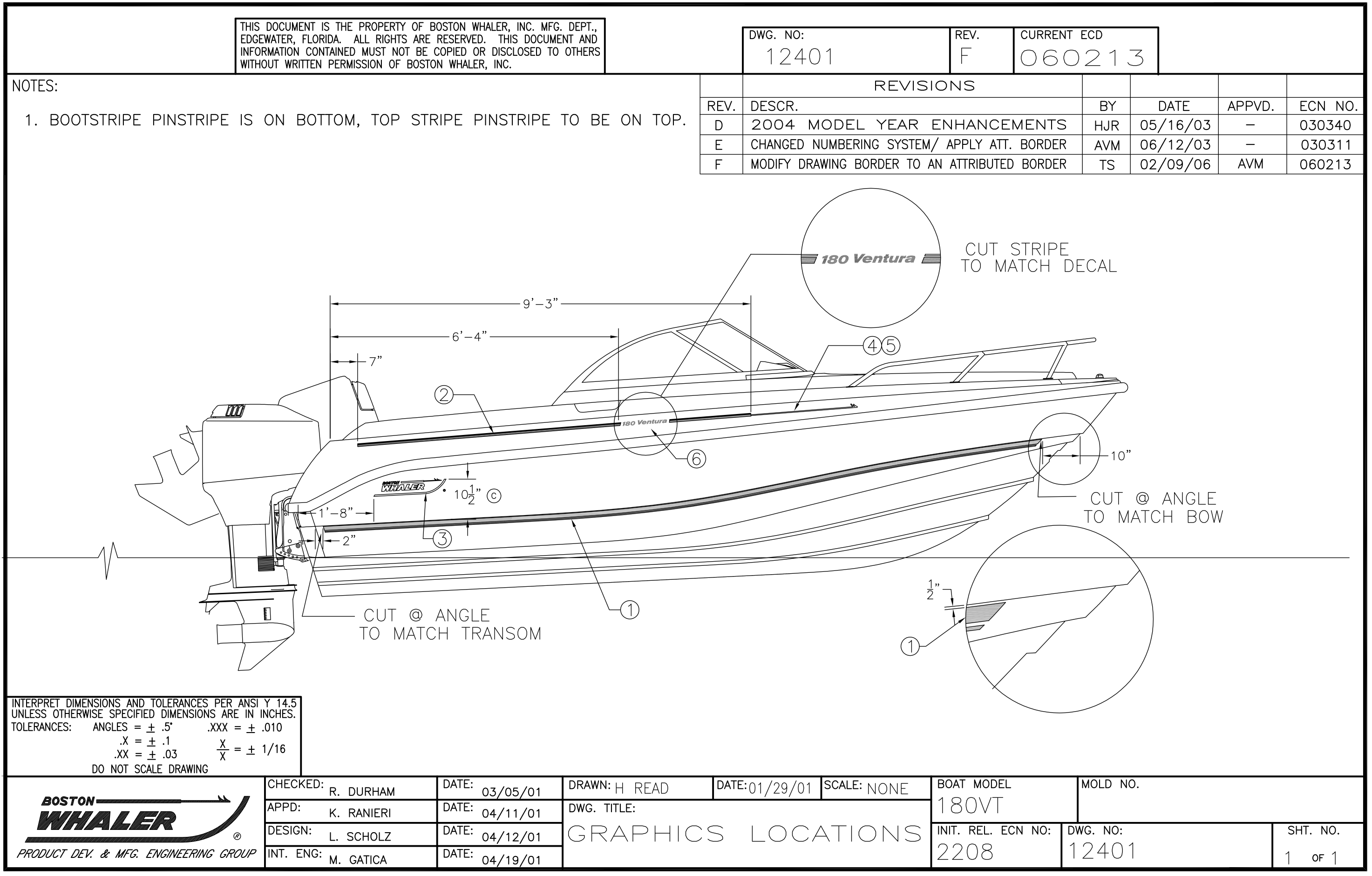

GRAPHICS

B.W.I. NO. DESCRIPTION

Red Decals

Harpoon Stripes
2. 1754548 - TAPE, SOLID 3/4" RED W/GRY PIN STRP 20 FT
4. 1752931 - DECAL, BW-04 HARPOON PRT WHLR RED
5. 1752932 - DECAL, BW-04 HARPOON STB WHLR RED

6. 1753533 - DECAL, BW-04 180VT GRY (DRIP MOLD) 180 Ventura Domed decals ( Order 2 )

Boston Whaler Hull Logos
3. 1752937 - DECAL, BW-04 LOGO 20" RED PRT (DRIP MOLD)
3. 1752938 - DECAL, BW-04 LOGO 20" RED STB (DRIP MOLD)

BOOTSTRIPE
1. 1754509 - TAPE, SOLID 1" RED W/GRY PIN STRIP 40 FT

Dark Blue Decals

Harpoon Stripes
2. 1754549 - TAPE, SOLID 3/4" DK BLUE W/GRY PIN STRP 20 FT
4. 1752933 - DECAL, BW-04 HARPOON PRT DK BLUE
5. 1752936 - DECAL, BW-04 HARPOON STB DK BLUE

6. 1753533 - DECAL, BW-04 180VT GRY (DRIP MOLD) 180 Ventura Domed decals ( Order 2 )

3. 1752939 - DECAL, BW-04 LOGO 20" DK BLUE PRT (DRIP MOLD)
3. 1752940 - DECAL, BW-04 LOGO 20" DK BLUE STB (DRIP MOLD)

BOOTSTRIPE
1. 1754510 - TAPE, SOLID 1" DK BLUE W/GRY PIN STRIP 40 FT

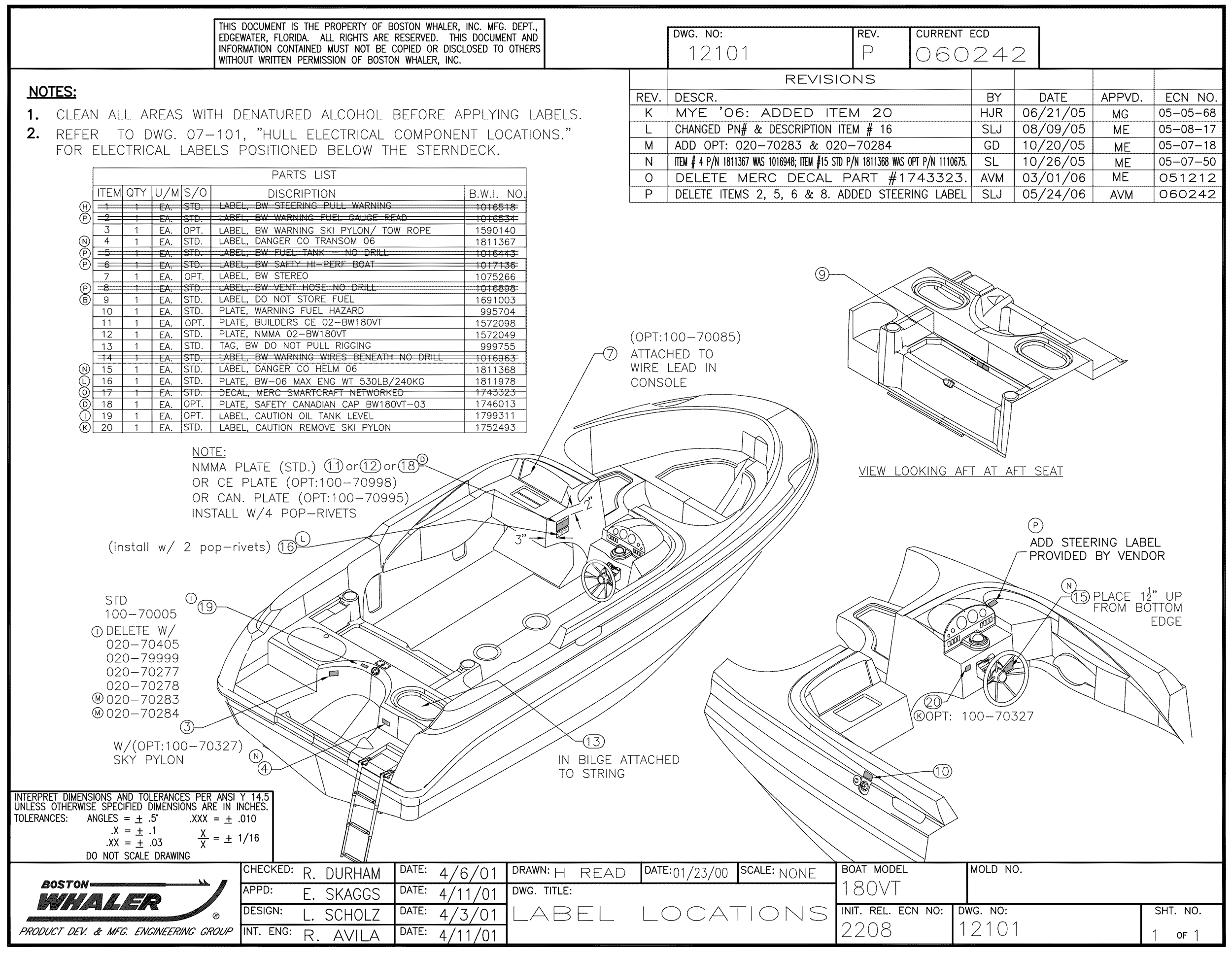

LABELS

B.W.I. NO. - DESCRIPTION

1. 1016518 - LABEL, BW STEERING PULL WARNING (H)
2. 1016534 - LABEL, BW WARNING FUEL GAUGE READ (P)
3. 1590140 - LABEL, BW WARNING SKI PYLON/ TOW ROPE
4. 1811367 - LABEL, DANGER CO TRANSOM 06 (N)
5. 1016443 - LABEL, BW FUEL TANK = NO DRILL (P)
6. 1017136 - LABEL, BW SAFETY HI-PERF BOAT (P)
7. 1075266 - LABEL, BW STEREO
8. 1016898 - LABEL, BW VENT HOSE NO DRILL (P)
9. 1691003 - LABEL, DO NOT STORE FUEL (B)
10. 995704 - PLATE, WARNING FUEL HAZARD
11. 1572098 - PLATE, BUILDERS CE 02-BW180VT
12. 1572049 - PLATE, NMMA 02-BW180VT
13. 999755 - TAG, BW DO NOT PULL RIGGING
14. 1016963 - LABEL, BW WARNING WIRES BENEATH NO DRILL
15. 1811368 - LABEL, DANGER CO HELM 06 (N)
16. 1811978 - PLATE, BW-06 MAX ENG WT 530LB/240KG (L)
17. 1743323 - DECAL, MERC SMARTCRAFT NETWORKED (O)
18. 1746013 - PLATE, SAFETY CANADIAN CAP BW18OVT-03 (D)
19. 1799311 - LABEL, CAUTION OIL TANK LEVEL (I)
20. 1752493 - LABEL, CAUTION REMOVE SKI PYLON (K)
