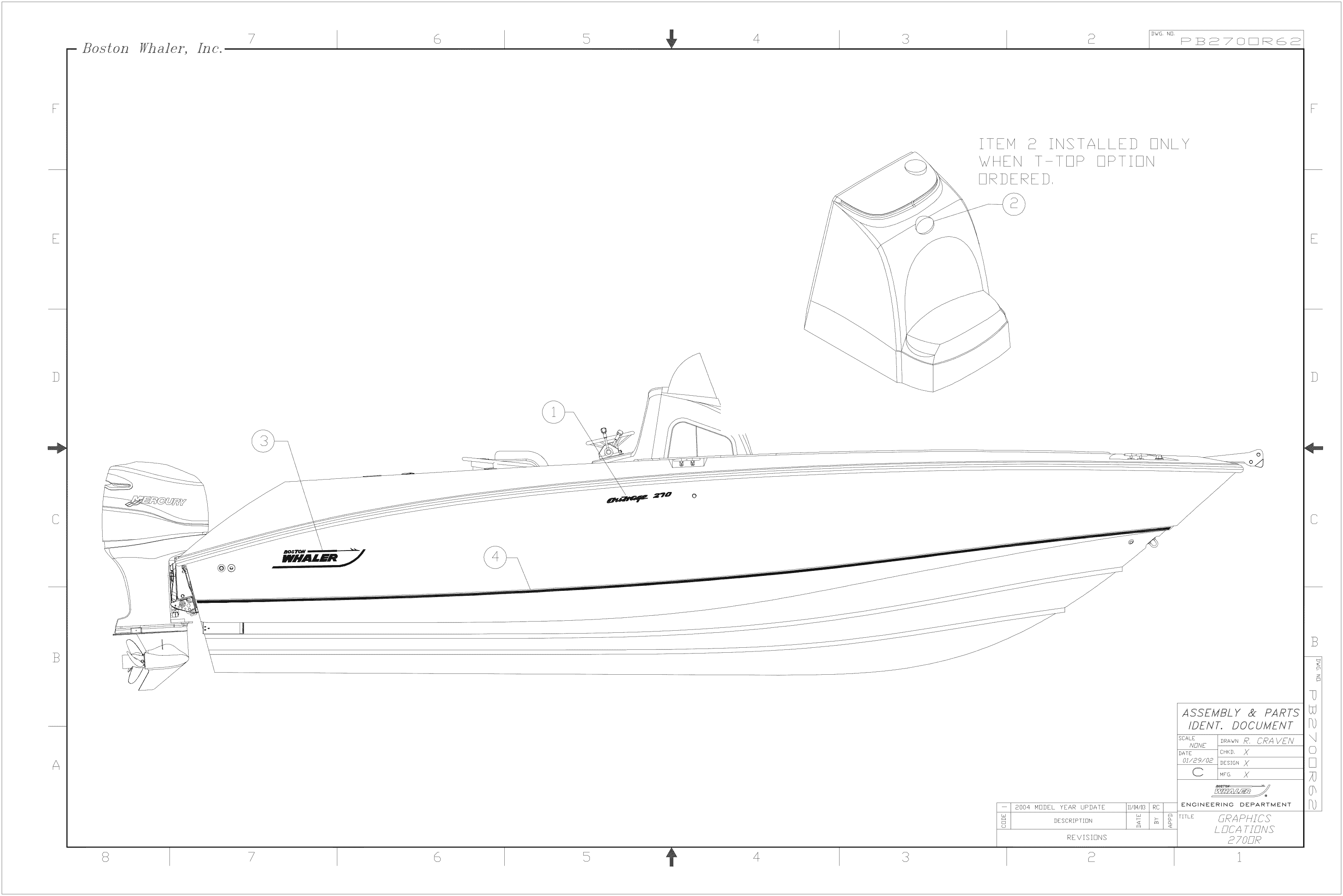

Parts List
ITEM - B.W.I. NO. - DESCRIPTION

1) 1752941 DECAL, BW-04 LOGO 29" RED PRT (DRIP MOLD)
2) 1752942 DECAL, BW-04 LOGO 29" RED STB (DRIP MOLD)
3) 1752943 DECAL, BW-04 LOGO 29" DK BLUE PRT (DRIP MOLD)
4) 1752944 DECAL, BW-04 LOGO 29" DK BLUE STB (DRIP MOLD)
5) 1754512 30 FT. TAPE, SOLID 1/2" DK BLUE W/GRY PIN STRIPE
6) 1754511 30 FT. TAPE, SOLID 1/2" RED W/GRY PIN STRIPE
7) 1754514 50 FT. TAPE, 2" DK BLUE W/GRY PIN STRIP
8) 1754513 50 FT. TAPE, 2" RED W/GRY PIN STRIP
9) 1753424 DECAL, BW-04 255CQ GRY (DRIP MOLD) 2 EA.

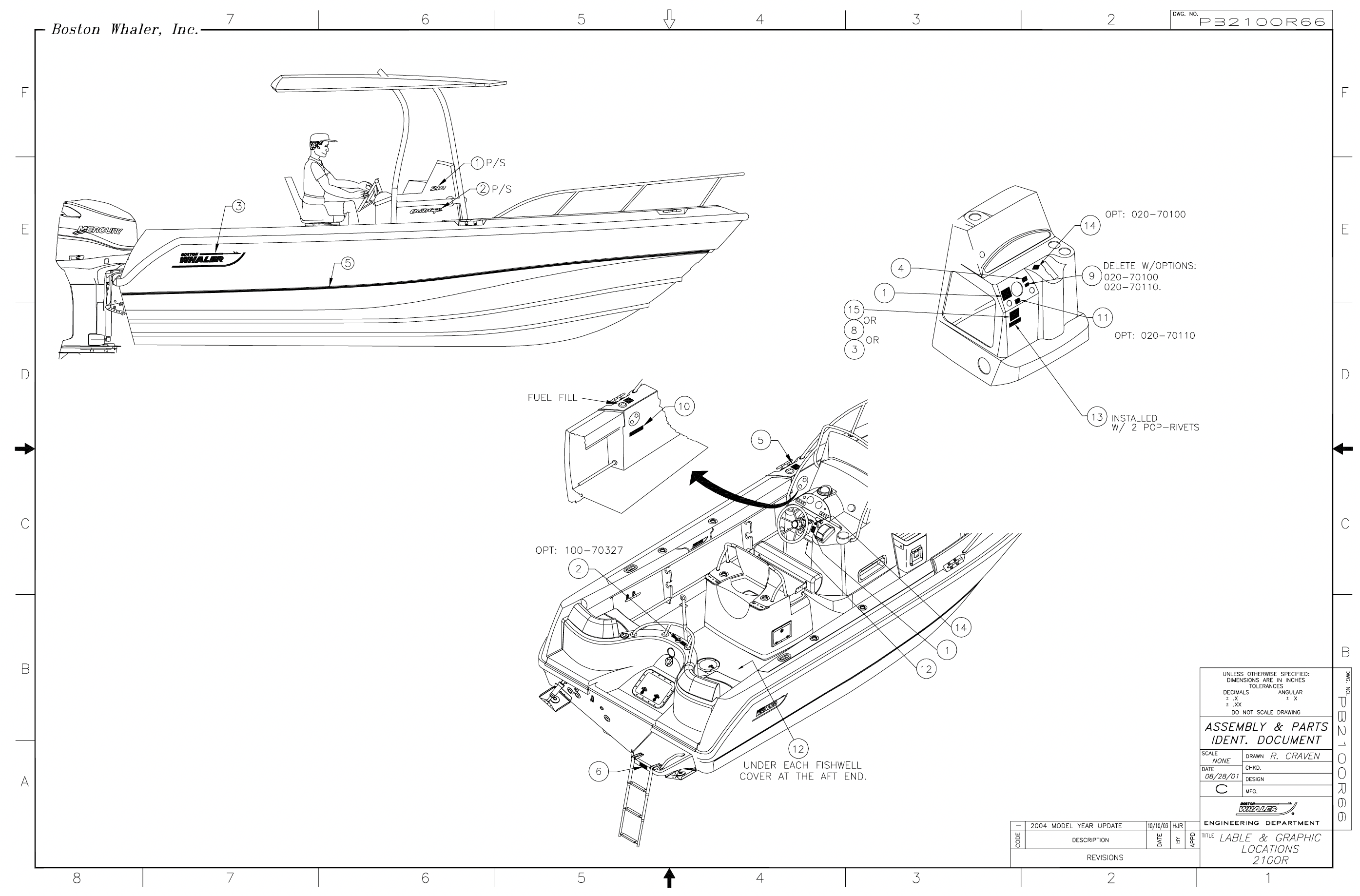

1) 1811367 LABEL, DANGER CO TRANSOM 06
3) 1727512 PLATE, NMMA 03-BW255CQ
4) 1745156 LABEL, NOTICE OVERBOARD DISCHARGE
5) 1743548 LABEL, WARNING RUNNING BOAT W/DOOR OPEN
6) 0995704 PLATE, WARNING FUEL HAZARD
7) 1016184 LABEL, BW NO SMOKING FUEL VENT
8) 1743571 LABEL, DANGER TRANSOM DOOR (LEXAN)
9) 1811368 LABEL, DANGER CO HELM 06
10) 1744737 LABEL, DISCHARGE OF OIL
11) 1051762 PLATE, BW, 230CQ-97 BATT PARALLEL DETAILS
12) 1691003 WARNING, DO NOT STORE FUEL
13) 1212596 LABEL, ANCHOR WINDLASS (LEXAN)
14) 1075282 LABEL, BW DE MAIN BRKR
15) 1075266 LABEL, BW STEREO
16) 1396720 LABEL, BW DIGITAL OPTIMAX POSITIVE
17) 1745123 LABEL. BILGE (LEXAN)
20) 1727513 PLATE, BUILDERS CE 03-BW255CQ
21) 1752857 LABEL, WARNING DO NOT OCCUPY SEAT @ OVER 5MPH
22) 1017136 LABEL, BW SAFETY HI-PERF BOAT
23) 1743504 LABEL, BW CAUTION FISHWELL DRAIN PLUG
24) 1735929 PLATE, BW-03 MAX ENG WT 1220LB/553KG
25) 1743323 DECAL, MERC SMARTCRAFT NETWORKED
26) 1746027 PLATE, SAFETY CANADIAN CONFORMITY BW255CQ-03
27) 1749551 LABEL, FUEL RECOMMENDATION 91 OCTANE
28) 1745514 LABEL, PREVENT DISCHARGE OF POLLUTANTS
29) 1799311 LABEL, CAUTION OIL TANK LEVEL
30) 1812911 LABEL, DANGER CO CABIN 06
31) 1836858 LABEL, BW-07 CAUTION AVOID INJURY BOAT MOVMNT
32) 1850587 PLATE, BUILDERS AU 07-BW255CQ

2000 - 140 Dauntless -

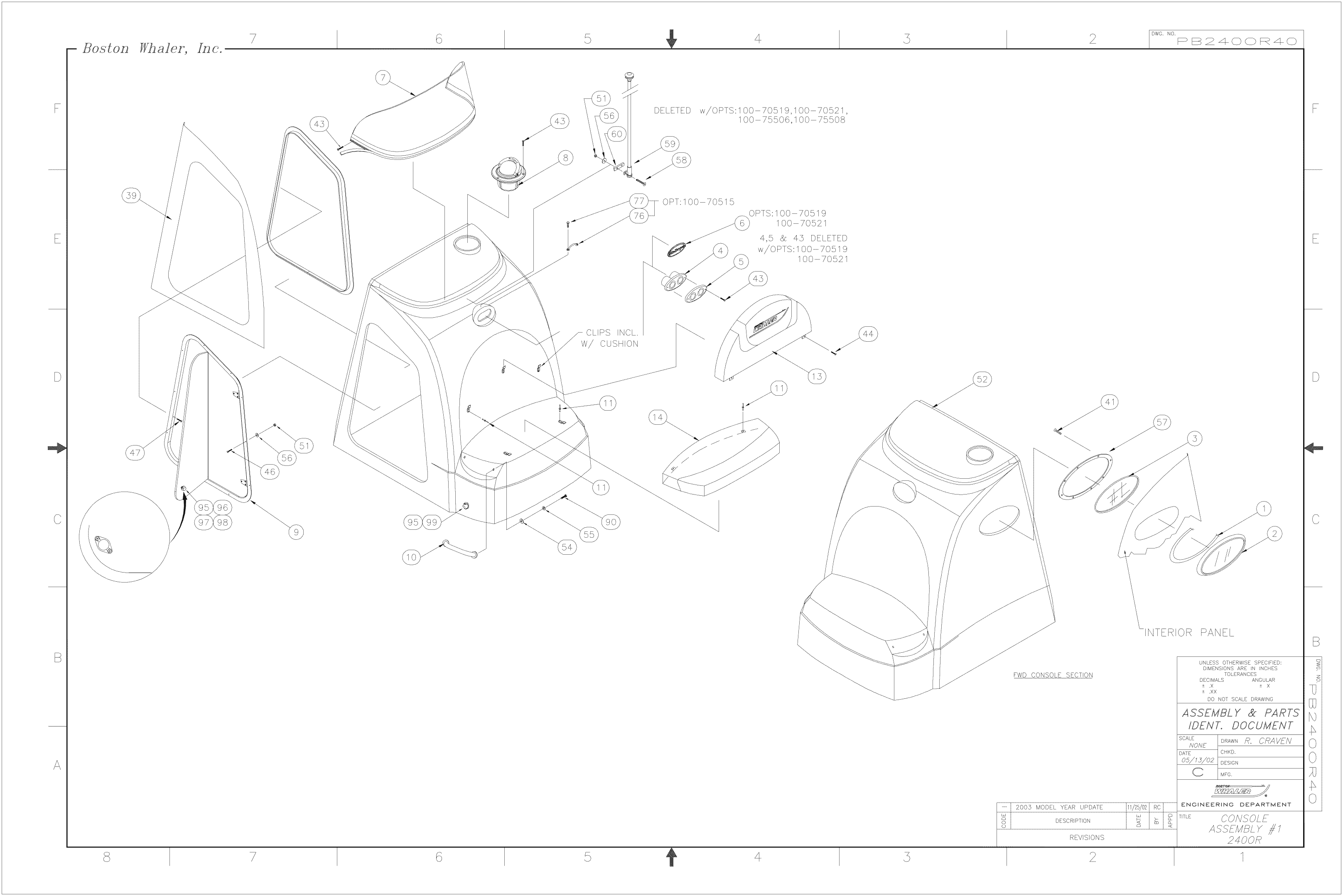

Console Assembly

24) 1016518 LABEL, BW STEERING PULL WARNING
47) 0998831 DECAL, BW TUNA FIRE RED
48) 1030683 DECAL, BW DAUNTLESS DK GRAY HIBOSC

Final Assembly & Outfit

30) 0997999 DECAL, BW LOGO 18" FIRE RED
30) 0998047 DECAL, BW LOGO 18" DARK BLUE
30) 0998054 DECAL, BW LOGO 18" DARK GREEN

31) 0998559 DECAL, BW HARPOON PORT FIRE RED
31) 0998450 DECAL, BW HARPOON PORT DARK BLUE
31) 0998452 DECAL, BW HARPOON PORT DARK GREEN

32) 0998559 DECAL, BW HARPOON STBD FIRE RED
32) 0998450 DECAL, BW HARPOON STBD DARK BLUE
32) 0998542 DECAL, BW HARPOON STBD DARK GREEN

33) 1038009 TAPE, SOLID 1" FIRE RED W/ PIN STRIPE 16.3 FT

34) 1050683 DECAL, BW DAUNTLESS DK GRAY HIBOSSCAL 2EA
35) 1198076 DECAL, BW 14' FIRE RED HIBOSSCAL 2EA

36) 1016948 LABEL, BW WARNING SWIM PLATFORM
37) 1016445 LABEL, BW FUEL TANK - NO DRILL
38) 1017136 LABEL, BW SAFETY HIGH PERF. BOAT
39) 1185966 PLATE, NMMA 99-BW140DA
         1185834 PLATE, BUILDER'S CE 99-BW140DA
52) 1185875 DECLARATION OF CONFORMITY, BW140DA-99

Sterndeck Assembly

07) 0995704 PLATE, WARNING FUEL HAZARD

69) 1016922 LABEL, WARNING TERMINAL BLOCK

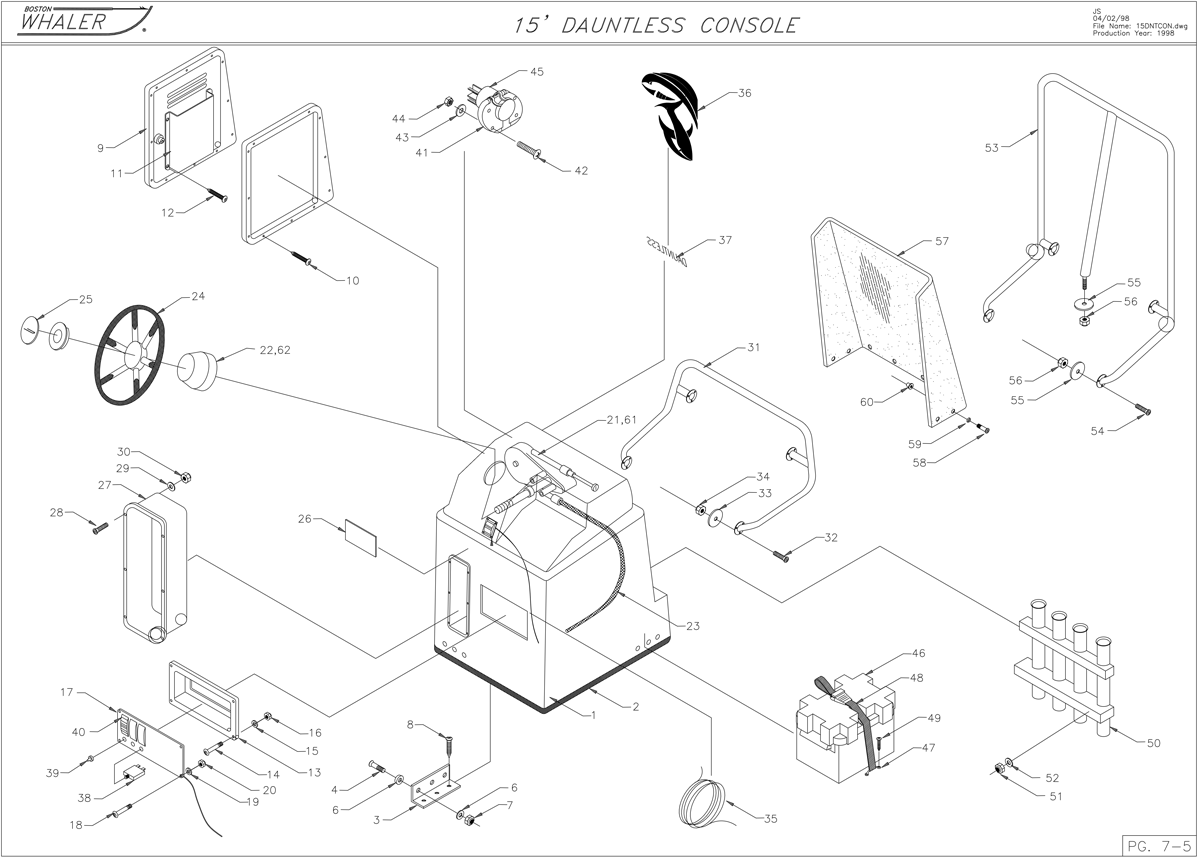

15' DAUNTLESS CONSOLE

25) 1021054 EMBLEM, STRG WHL CAP
26) 1016518 LABEL, STRG PULL WARNING

WARNING: Sudden steering pull can cause loss of control. Be sure the steering system is properly installed and maintained. Use caution when operating at high speeds or when trimming engine.

⚠ WARNING
STEERING SYSTEM DAMAGE OR FAILURE MAY CAUSE LOSS OF CONTROL AND SEVERE INJURY OR DEATH.
BEFORE OPERATING, VERIFY:
- ENGINE TURNS FREELY FULL LEFT & RIGHT
- NO BINDING OR OBSTRUCTIONS
- PROPERLY INSTALLED STEERING SYSTEM
- NO LEAKS (FOR HYDRAULIC SYSTEMS)

36) 0998831 DECAL, BW TUNA FIRE RED
36) 0998815 DECAL, BW TUNA CORBIN DK BLU
36) 0998823 DECAL, BW TUNA DK GRN
37) 1030683 DECAL, BW DK GRY HIBOSSCAL

45) 0997692 DECAL, BW 15' FIRE RED HIBOSSCAL  - ORDER 2
45) 0997668 DECAL BW 15' CORBIN DK BLUE  - ORDER 2
45) 0997684 DECAL, BW DK GREEN  - ORDER 2
46) 1030683 DECAL, BW DAUNT DK GRY HIBO  - ORDER 2

1030683, 0997692, 0997668, 997684,

47) 0998559 DECAL BW HARPOON PORT FIRE RED
47) 0998450 DECAL, BW HARP PORT CORB DK BLUE
47) 0998542 DECAL, BW HARPOON PORT DK GRN

48) 0998609 DECAL, BW HARP STBD FIRE RED
48) 0998476 DECAL, BW HARP STBD CORB DK BLU
48) 0998591 DECAL, BW HARP STBD DK GRN

49) 0997999 DECAL, BW LOGO 18" FIRE RED  - ORDER 2
49) 0998047 DECAL, BW LOGO CORB DK BLU  - ORDER 2
49) 0998084 DECAL, BW LOGO 18" DK GREEN  - ORDER 2

1998 BOSTON WHALER 20' OUTRAGE HULL ASSY

PG. 13-3

PG. 13-4

71) 1016898 LABEL, BW VENT HOSE NO DRILL
72) 1016443 LABEL, BW FUEL TANK- NO DRILL
73) 1016534 LABEL, BW WARNING FUEL GUAGE
74) 1016484 LABEL, BW NO SMOKING FUEL VENT
75) 0995704 PLT, WARNING FUEL HAZARD
81) 1017136 LABEL, BW SAFETY HI-PERF BOAT
82) 1016963 LABEL, BW WARNING WIRE
84) 0995803 PLT, NMMA

PG. 13-1

PG. 13-2

97) 0998732 DECAL, BW OR DK GRY HIB - "OUTRAGE" only

98) 0997858 DECAL, BW 20' FIRE RED HIB - ORDER 2 - "20" - 0998732, 0997858,
98) 1030691 DECAL, BW 20' CORBIN DK BLU - ORDER 2 - "20" - 0998732, 1030691,
98) 0997841 DECAL, BW 20' DK GRN GRN HIB - ORDER 2 - "20" - 0998732, 0997841,

0997858, 1030691, 0997841,

99) 0998104 DECAL, BW LOGO 28" FIRE RED - ORDER 2
99) 0998088 DECAL, BW LOGO 28" CORBIN DK BLU - ORDER 2
99) 0998096 DECAL, BW, LOGO 28" DK GRN - ORDER 2

0998104, 0998088, 0998096,

100) 1038009 34' TAPE, SOLID 1" DK GRN W/STRP - Stripes - I think they mean to say FIRE RED (error detected)
100) 1037985 34' TAPE, SOLID 1" CORBIN DK BLU W/STRP - Stripes
100) 1037993 34' TAPE, SOLID 1" DK GRN W/STRP - Stripes

101) 0998559 DECAL, HARP PORT FIRE RED - Harpoon Tip
101) 0998450 DECAL, HARP PORT CORBIN BLU - Harpoon Tip
101) 0998542 DECAL, HARP PORT DK GRN - Harpoon Tip

102) 0998609 DECAL, HARP STBD FIRE RED - Harpoon Tip
102) 0998476 DECAL, HARP STBD CORBIN BLU - Harpoon Tip
102) 09988591 DECAL, HARP STBO DK GRN - Harpoon Tip
