MERC 1500 2 Stroke Carb - 150 (6 CYL.) XS L - ARCHIVE CAT 63293

> Mercury Marine [Updated: Aug. 7, 2019] > Outboard > 2 Stroke Carb > 150 (6 CYL.) > ARCHIVE CAT 63293

MERC 1500
SERIAL NUMBER
1500 . . . . . . . . . . .  USA 3502806 THRU 4865677
1500 . . . . . . . . . . .  CAN 7010533 THRU 7112772
1500 . . . . . . . . . . . . . . . 8005615 THRU 8052649

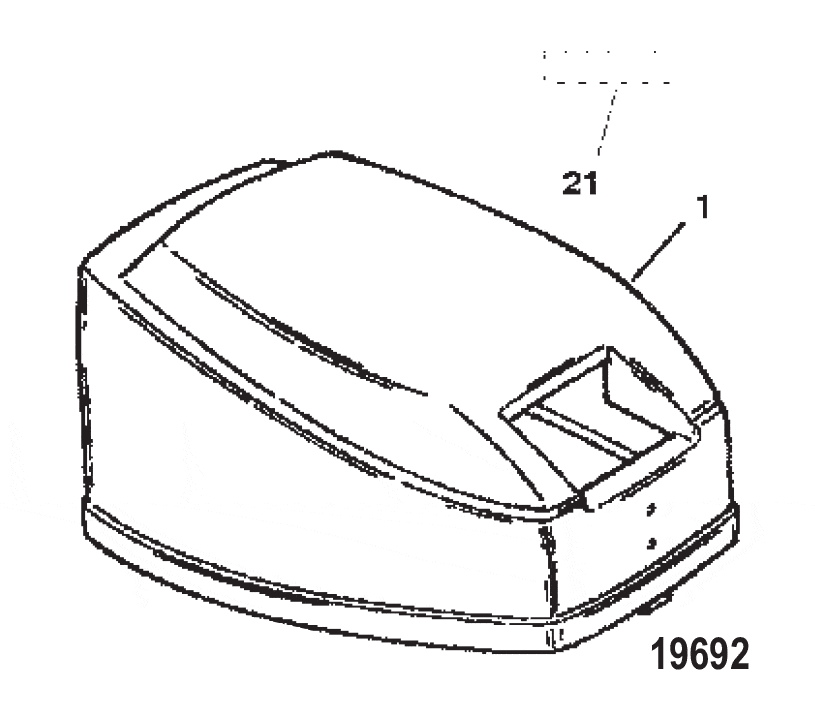

TOP COWL AND SUPPORT BRACKETS

1
3806 COWL, TOP UNITED STATES 4403386 AND BELOW - AUSTRALIA 8034895 AND BELOW CANADA 7067847 AND BELOW
5999 COWL, TOP UNITED STATES 4403387 AND UP

COWLING AND FRONT COVER

1
2663A18 COWL, FRONT COVER ASSEMBLY UNITED STATES 4121434 AND BELOW AUSTRALIA 8028039 AND BELOW CANADA 7048782 AND BELOW
5631A4   COWL FRONT COVER ASSEMBLY UNITED STATES 4121435 AND UP AUSTRALIA 8028040 AND UP CANADA 7048783 AND UP

11 4660A4   WRAP AROUND COWL ASSEMBLY - NON LOUVERED
15 4660A17 WRAP AROUND COWL ASSEMBLY - LOUVERED

3806, 5999, 2663A18, 5631A4, 4660A4, 4660A17
3806 5999 2663A18 5631A4 4660A4 4660A17



MERCURY DECALS

64309A73 DECAL SET UNITED STATES 3752619 AND BELOW - AUSTRALIA 8013419 AND BELOW CANADA 7024372 AND BELOW
66318A74 DECAL SET UNITED STATES 3752620 THRU 4121434 - AUSTRALIA 8013420 THRU 8028039 CANADA 7024373 THRU 7048782
70140A75 DECAL SET UNITED STATES 4121435 THRU 4319879 - AUSTRALIA 8028040 THRU 8034895 CANADA 7048783 THRU 7067284
74301A76 DECAL SET (MERC 1500 XS)      UNITED STATES 4319880 THRU - 4602011 CANADA 7067248 THRU 7093097
73891A76 DECAL SET (MERC 1500 LONG) UNITED STATES 4319880 - THRU 4602011 CANADA 7067248 THRU 7093097
74301A77 DECAL SET (MERC 1500 XS)      UNITED STATES 4602012 AND UP - CANADA 7093038 AND UP
74301A77 DECAL SET (MERC 1500 LONG) UNITED STATES 4602012 AND - UP CANADA 7093038 AND UP

Serial Number: 3913296 - Model: 1500EL Model Version:

Sterndrive Drives 228 1978-1982 [4898730 THRU 6225576] - Cat.# 90-79170

 > Mercury Marine [Updated: Aug. 13, 2019] > Sterndrive > Drives > 228 > 1978-1982  [4898730 THRU 6225576] - Cat.# 90-79170



GIMBAL HOUSING ASSEMBLY DIAGRAM 39572

70861A1 GIMBAL HOUSING ASSEMBLY (IN-LINE ENGINES)

70862A1 GIMBAL HOUSING ASSEMBLY (V-8 ENGINES)



MERCRUISER DECALS

 87018   DECAL   GIMBAL HOUSING





Where Used Mercury Assemblies

GIMBAL HOUSING ASSEMBLY
MERCRUISER888 1971-1977 <MERCRUISER 888 STERN-DRIVE (1.50) RATIO GIMBAL HOUSING ASSEMBLY

<MERCRUISER 225-S/233 (1.32 RATIO) STERN-DRIVE GIMBAL HOUSING ASSEMBLY
MERCRUISER225-S 1974
MERCRUISER233 1975-1977

GIMBAL HOUSING AND BELL HOUSING
<MERCRUISER 255/280 TRS GIMBAL HOUSING AND BELL HOUSING
MERCRUISER255-TRS 1973-1974
MERCRUISER280-TRS 1975-1976

GIMBAL HOUSING ASSEMBLY
<MERCRUISER 898 (1.50 RATIO) 1228 (1.50 RATIO) 1250 (1.32 RATIO) GIMBAL HOUSING ASSEMBLY
MERCRUISER250 1977
MERCRUISER898/228 1977

GIMBAL HOUSING ASSEMBLY AND EXHAUST ELBOW
<MERCRUISER 120/140/165 STERN DRIVE GIMBAL HOUSING ASSEMBLY AND EXHAUST ELBOW
MERCRUISER120/140 1970-1977
MERCRUISER165 1970-1977

GIMBAL HOUSING ASSEMBLY
<MERCRUISER 888 STERN-DRIVE (1.50) RATIO GIMBAL HOUSING ASSEMBLY
MERCRUISER888 1971-1977

GIMBAL HOUSING AND BELL HOUSING
<MERCRUISER II TR STERN-DRIVE (2.00 RATIO) GIMBAL HOUSING AND BELL HOUSING
MERCRUISERII-TR 1973-1976

GIMBAL HOUSING ASSEMBLY
<MERCRUISER 225-S/233 (1.32 RATIO) STERN-DRIVE GIMBAL HOUSING ASSEMBLY
MERCRUISER225-S 1974
MERCRUISER233 1975-1977

GIMBAL HOUSING
<MERCRUISER TR (200 RATIO) TRS (1.50 RATIO) STERN-DRIVE GIMBAL HOUSING
MERCRUISER TR/TRS 1977-1993

GIMBAL HOUSING ASSEMBLY
MERCRUISER120/140 1978-1982
MERCRUISER165 1978-1981
MERCRUISER228 1978-1982
MERCRUISER260 1978-1982
MERCRUISER470 1978-1982
MERCRUISER485 1980-1982
MERCRUISER898 1978-1982

200 PROXS (DFI) 3.0L - Cat.# 90-8M0063701

> Mercury Marine [Updated: Nov. 17, 2025] > Outboard > 2 Stroke DFI (OptiMax) > 200 HP 6 CYL (3.0L)   > [1B912786 THRU 2B535571] - Cat.# 90-8M0063701
> Mercury Marine [Updated: Dec. 10, 2019] > Outboard > 2 Stroke DFI (OptiMax) > 200 PRO XS (DFI) 3.0L > [1B912786 THRU 2B535571] - Cat.# 90-8M0063701









TOP COWL DIAGRAM  1330

881288T62 TOP COWL ASSEMBLY (Black)
+ 8M0063417 TOP COWL

881288T65 TOP COWL ASSEMBLY (Silver)

881288T66 TOP COWL ASSEMBLY (Black) (200 PRO XS)  [1B935118] & Below
+ 8M0063392 ORD 100-8M0075372

8M0070604 TOP COWL ASSEMBLY (Black) (200 PRO XS)  [1B935119] & Up
+ 8M0083585 TOP COWL

8M0075369 TOP COWL ASSEMBLY Mercury,
8M0075371 TOP COWL ASSEMBLY Mariner,
8M0075372 TOP COWL ASSEMBLY Mercury, ProXS

881288T62, 8M0063417, 881288T65, 881288T66, 8M0063392, 8M0070604, 8M0083585, 8M0075369, 8M0075371, 8M0075372
881288T62 8M0063417 881288T65 881288T66 8M0063392 8M0070604 8M0083585 8M0075369 8M0075371 8M0075372



MERCURY DECALS

855412A07 DECAL SET Mercury 200 -  Optimax
+ 8M0061185 DECAL, 200

 897136A07 DECAL SET ProXS - HP decal not included - 200 PRO XS [1B935118] & Below
892564005 DECAL Horsepower 200 - 200 PRO XS [1B935118] & Below

8M0073125 DECAL SET ProXS - HP Decal not included - 200 PRO XS [1B935119] & Up
+ 8M0083586 DECAL SET - (BLACK 80 JET) (2005) -------confusing description
+ + 8M0114996 DECAL-SERVICE KIT

8M0065746 DECAL Horsepower 200 - 200 PRO XS [1B935119] & Up

8M0043700 M-ICON Red, 39mm [1B935119] & Up
8M0043699 DECAL M-Icon, 66mm Red



MARINER DECALS

855413A03 DECAL SET 200 - Mariner

Read more: 200 PROXS (DFI) 3.0L - Cat.# 90-8M0063701

225 PRO XS (3.0L) DFI - Cat.# 90-896328005

> Mercury Marine [Updated: Aug. 4, 2026] > Outboard > 2 Stroke DFI (OptiMax) > 225 HP Pro XS 6 CYL (3.0L) > [1B104549 THRU 1B426560] - USA - Cat.# 90-896328005
> Mercury Marine [Updated: Dec. 2, 2019] > Outboard > 2 Stroke DFI (OptiMax) > 225 PRO XS (3.0L DFI) > [1B104549 THRU 1B426560] - USA - Cat.# 90-896328005





TOP COWL DIAGRAM  1646

881288T32 TOP COWL ASSEMBLY
+ 8M0123028 COWL-TOP



881288T32, 8M0123028
881288T32 8M0123028



MERCURY DECALS

897136A05 DECAL SET - 225 OPTI PROXS

+ 8M0065133 DECAL SET 225 PRO - OPTI PROXS Previous Gen - NLA
++ 8M0114995 DECAL-SERVICE KIT - NLA



Read more: 225 PRO XS (3.0L) DFI - Cat.# 90-896328005

More Articles …

  1. MERCURY 90 75/90 HP (3 CYLINDER) - Cat.# 90-81589890
  2. 50/55/60 HP JET 45 - Cat.# 90-81735291
  3. 1965 Merc 500 (4 cyl) - 90-36180
  4. Mark & K Series (pre 1960) - MARK 30 - ARCHIVE CAT 90-25739

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
