2001 EVINRUDE 200/225/250

2001 EVINRUDE  200  - E200FPXSIF FFI, elec start, TNT, 25 in shaft 2001

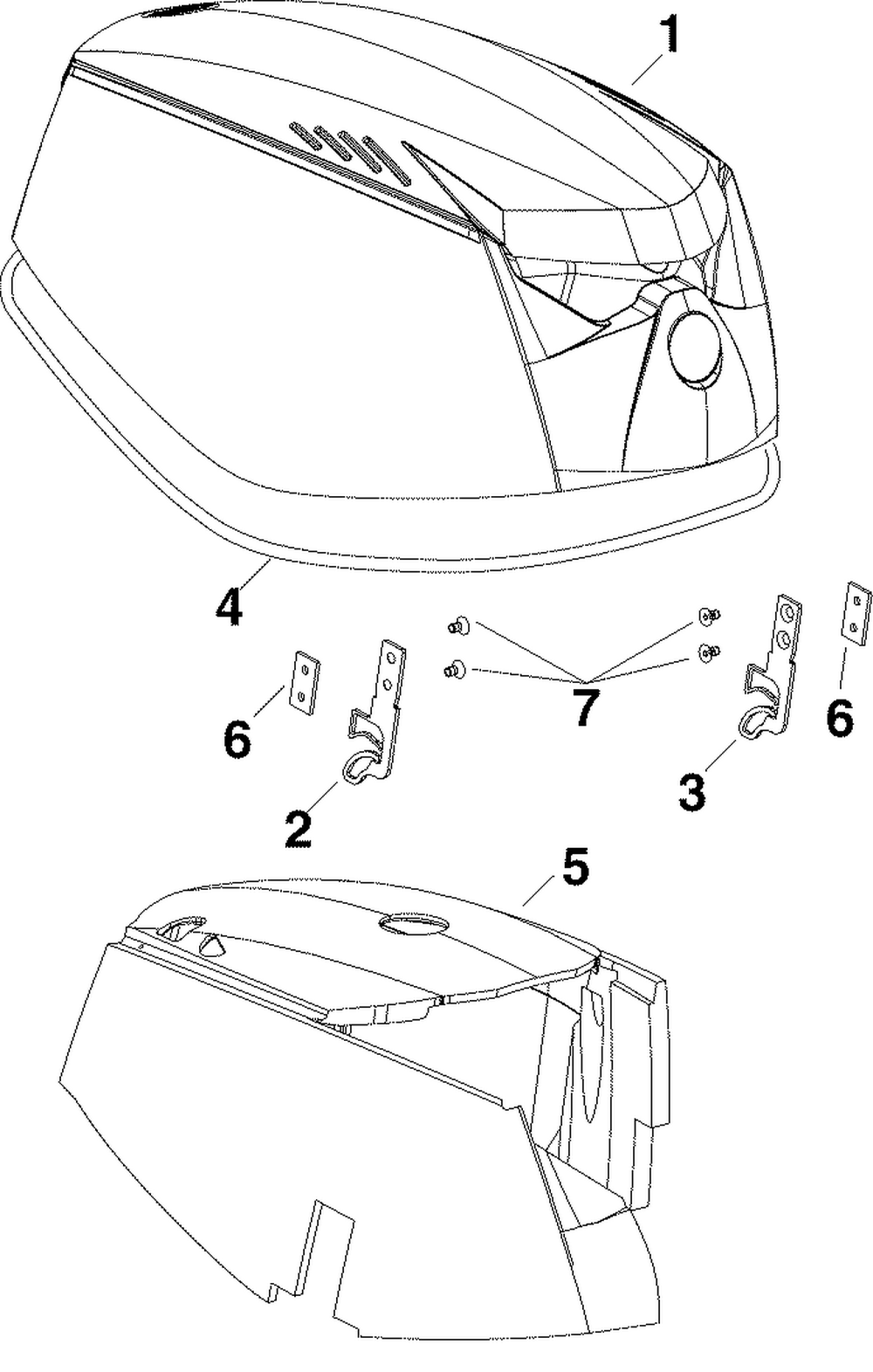

ENGINE COVER Diagram epc1373


http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\5001692\epc1373.tif&ilSC=15&ilIV=0&ilBR=0&ilIF=P&ilRE=8

0285467 ENGINE COVER ASSY.. (Blue (Except 225FH).)
0285465 ENGINE COVER ASSY.. (White.)
0285435 ENGINE COVER ASSY.. (225FH.) - "RUDE RAM"

0285467, 0285465, 0285435
0285467, 0285465, 0285435

EVINRUDE DECALS

10) 0214899 *DECAL, Front (blue). (Blue (Except 225FH).)
11) 0214897 *DECAL, Wrap (blue). (Blue (Except 225FH).)
12) 0214902 *DECAL, Rear, 250. (Blue (Except 225FH).)

10) 0214915 *DECAL, Front (white). (White.)
11) 0214913 *DECAL, Wrap (white). (White.)
12) 0214918 *DECAL, Rear, 250. (White.)

10) 0215167 *DECAL, Front (blue). (225FH.) - "RUDE RAM"
11) 0215165 *DECAL, Wrap (blue). (225FH.) - "RUDE RAM"
12) 0215168 *DECAL, Rear, FH  - "RUDE RAM"
12) 0215188 *DECAL, Rear, 225FH  - "RUDE RAM"


12) 0214900 *DECAL, Rear, 200FPL, FL - (BLUE MODELS)
12) 0214916 *DECAL, Rear, 200FSL, FPX, FX, FCX, FC

12) 0214901 *DECAL, Rear, 225FPL, FL, FGL, FG - (BLUE MODELS)
12) 0214917 *DECAL, Rear, 225FPX, FX, FPZ, FCX, FC, FCZ


PAINT

0771227 Primer. (PPG Code - DP40401. One Coat Finish For Midsection And Gearcase)
0771234 Black - 1. (PPG Code - 9696. One Coat Finish For Midsection And Gearcase)()
0771230 Blue. (PPG Code - 18319. One Coat Finish For Midsection And Gearcase)(PPG Code - 18320. Base Coat Plus Clearcoat For Upper And Lower Engine Covers)
0771226 White. (PPG Code - 90538. One Coat Finish For Midsection And Gearcase)
0771245 Silver (Gearcase). (PPG Code - 34487. One Coat Finish For Midsection And Gearcase)
0772414 Clearcoat



1991 Evinrude 115 hp - E115TLEIE (88/90/100/115, TE 115/TE90, 90/115 Jet)

1991 Evinrude 115 hp - E115TLEIE

88/90/100/115, TE 115/TE90, 90/115 Jet

Diagram 434248-04

http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\434248\04.tif&ilSC=55&ilIV=0&ilBR=0&ilIF=P&ilRE=8

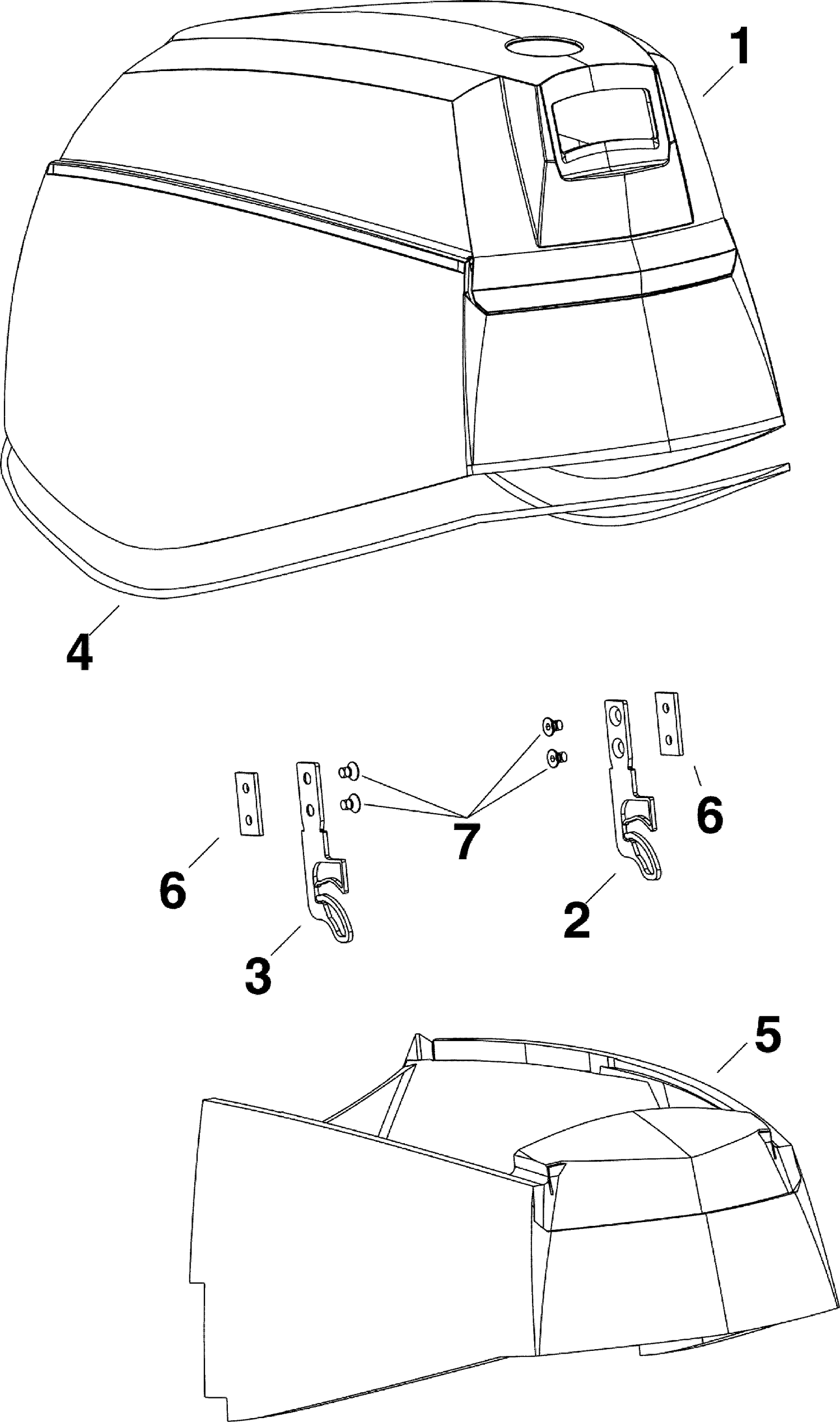

ENGINE COVER - EVINRUDE

1 0283708 ENGINE COVER ASSY., 88 models
1 0283619 ENGINE COVER ASSY., 90 models
1 0282305 ENGINE COVER ASSY., 90 Jet, (65)
1 0284062 ENGINE COVER ASSY. TE90 Models Only
1 0283685 ENGINE COVER ASSY., 100 models
1 0283945 ENGINE COVER ASSY., 115 models
1 0282299 ENGINE COVER ASSY., 115 Jet, (80)
1 0284063 ENGINE COVER ASSY.. TE 115 Models Only

0283708, 0283619, 0282305, 0284062, 0283685, 0283945, 0282299, 0284063
0283708 0283619 0282305 0284062 0283685 0283945 0282299 0284063

ENGINE COVER - JOHNSON
0433887, 0434558, 0433890, 0433889, 0434574, 0434559, 0433892, 0433891, 0434573, 0433888
0433887 0434558 0433890 0433889 0434574 0434559 0433892 0433891 0434573 0433888



EVINRUDE DECALS

27 0283782 DECAL SET, 88 models
27 0283783 DECAL SET, 90/115 models
27 0284273 DECAL SET, 90/115. TE 115 Models Only TE90 Models Only
27 0284274 DECAL SET, 90/115 Jet
27 0283784 DECAL SET, 100

PLATES AND APPLIQUES MADE AS DECALS

21 0211371 PLATE, Front & rear, 88 models (2 decals)
21 0211241 PLATE, Front, 90/115 models, except Jet
21 0211703 PLATE, Front, 90/115 Jet
21 0211580 PLATE, Front. TE90 Models Only
21 0211581 PLATE, Front. TE 115 Models Only


24 0210311 APPLIQUE, V-4 100
25 0210305 APPLIQUE, Ev., 100

2001 Evinrude 70 hp - E70PL4SIA 4-Stroke

2001 Evinrude - EN 70 hp
E70PL4SIA 4-Stroke, Elec. Start, TNT, Blue, 20 IN.



5032518 ENGINE COVER Assy

1 5032518 ENGINE COVER Assy



EVINRUDE DECALS

4 5032522 DECAL, Front
5 5032523 DECAL, Rear
6 5032524 DECAL, Cover, Stbd
7 5032526 DECAL, Cover, Port

13 5032527 LABEL, Fuel limitation


PAINT

  • 771227 0771227 Primer. (PPG Code - DP40401. One Coat Finish For Midsection And Gearcase)
  • 771234 0771234 Black - 1. (PPG Code - 9696. One Coat Finish For Midsection And Gearcase)
  • 771230 0771230 Blue. (PPG Code - 18319. One Coat Finish For Midsection And Gearcase)
    (PPG Code - 18320. Base Coat Plus Clearcoat For Upper And Lower Engine Covers)
  • 772414 0772414 Clearcoat

1989 Johnson 110 HP - TJ110TLCEM

ENGINE COVER - JOHNSON

Diagram 432895-05

ENGINE COVER - JOHNSON


1
0398809 ENGINE COVER ASSY., 88
0433123 ENGINE COVER ASSY., 90. TJ90 Models Only
0432573 ENGINE COVER ASSY., 90. Metallic Gray
0432464 ENGINE COVER ASSY., 90. White
0433124 ENGINE COVER ASSY., 110. TJ110 Models Only
0432574 ENGINE COVER ASSY., 110. Metallic Gray
0432463 ENGINE COVER ASSY., 110. White
0433023 ENGINE COVER ASSY., 100STL

0398809, 0433123, 0432573, 0432464, 0433124, 0432574, 0432463, 0433023
0398809 0433123 0432573 0432464 0433124 0432574 0432463 0433023

EVINRUDE ENGINE COVER ENGINE COVER ASSY:
0283708 (88 models)
0283619 (90 models)
0283766 (TE90 Models Only)
0283685 (100STL)
0283620 (110 models)
0283767 (TE110 Models Only)

0283708, 0283619, 0283766, 0283685, 0283620, 0283767
0283708 0283619 0283766 0283685 0283620 0283767



Johnson Outboard Decals


25 0433146 DECAL SET, 88 models
25 0433147 DECAL SET, 90 models
25 0433148 DECAL SET, 110 models
25 0433207 DECAL SET, 90, 110.
     Use 0434045 on phase III styling on Johnson 90 hp Tracker models.
     Use 0434046 on 1989 Johnson 110 hp tracker models with phase 1 styling.
25 0433149 DECAL SET, 100STL models


18 0334224 APPLIQUE, Rear, 88 models
18 0334565 PLATE, Rear, 90 models
18 0334564 PLATE, Rear, 110 models


21 0334563 PLATE, Applique front, 88/90/110
21 0335059 PLATE, Applique, front. TJ90 Models Only
21 0335068 PLATE, Applique, front. TJ110 Models Only
21 0334224 PLATE, Applique, front & rear, 88

Exhaust Housing Stripe

36 0210769 DECAL, Exh. hsg., Ev., 88 models
36 0211388 DECAL, Exh. hsg., Ev., 90/110
36 0332731 DECAL, Exh. hsg., Jo., 90/110

1989 Johnson 110 HP models:
J110MLCEM 1989
J110TLAEM 1989
J110TLCEM 1989
J110TXCEM 1989
TJ110TLCEM 1989
TJ110TXCEM 1989

This Johnson 0433148 DECAL SET, 110 models fits the following models and components:
88 HP: VJ88MSLCER, J88MSLCER
90 HP: J90TLAEM, J90TLCEM, TJ90TLCEM 1989
100 hp: J100STLCEM
110 hp: J110MLCEM, J110TLAEM, J110TLCEM, J110TXCEM, TJ110TLCEM, TJ110TXCEM



More Articles …

  1. 2009-2013 Evinrude 150/175 200 - (60° V6, 2.6 L)/135 E-TEC H.0.
  2. EVINRUDE 2005 40/50/60 hp E-TEC - Bombardier
  3. 1989 Johnson GT 300 V8 - J300PLCEM
  4. 1968 Johnson - 6 hp CD-25

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION
