EVINRUDE 1997 50 - E50ESLEUR

ENGINE COVER - EVINRUDE - ELECTRIC START ONLY

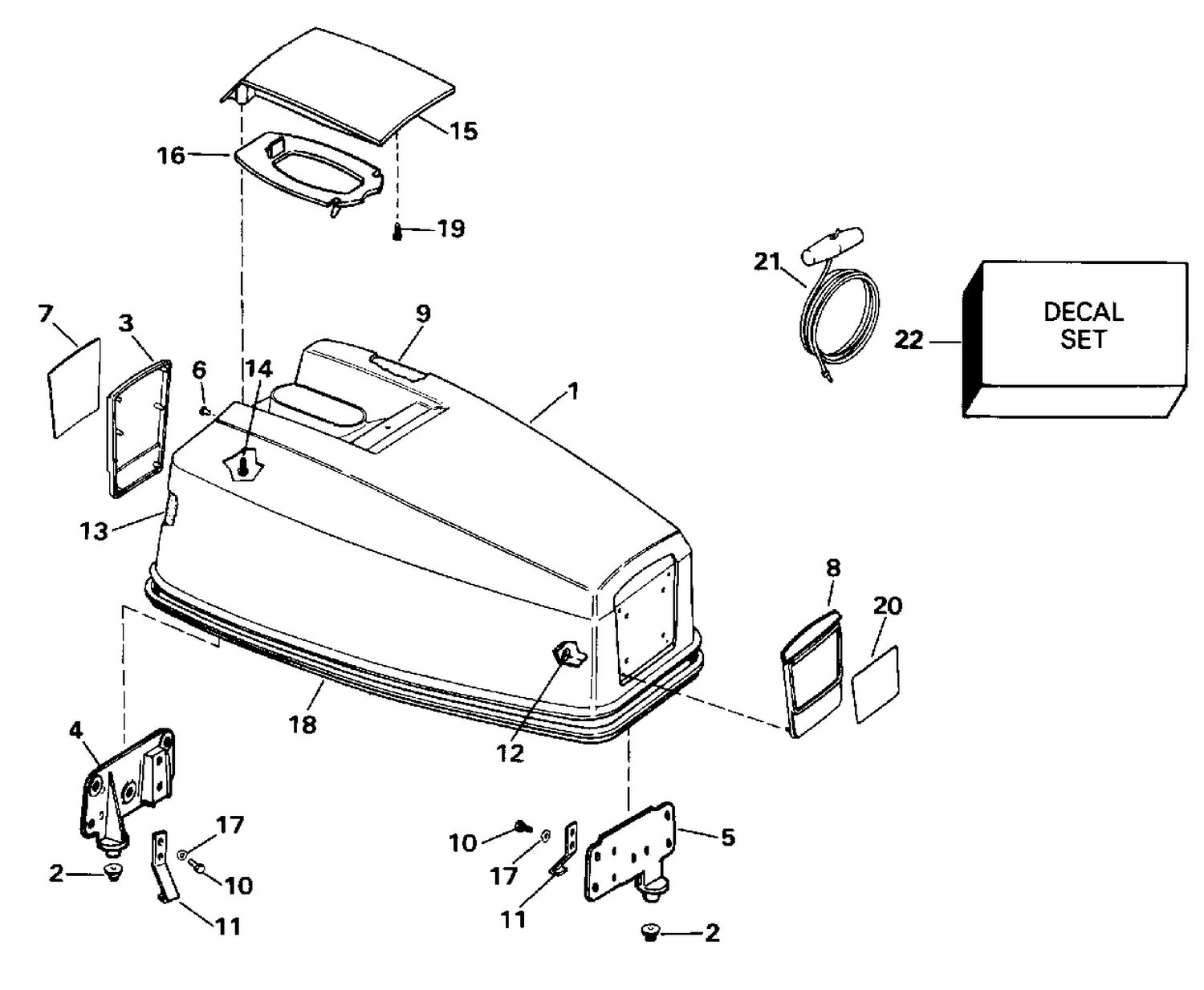

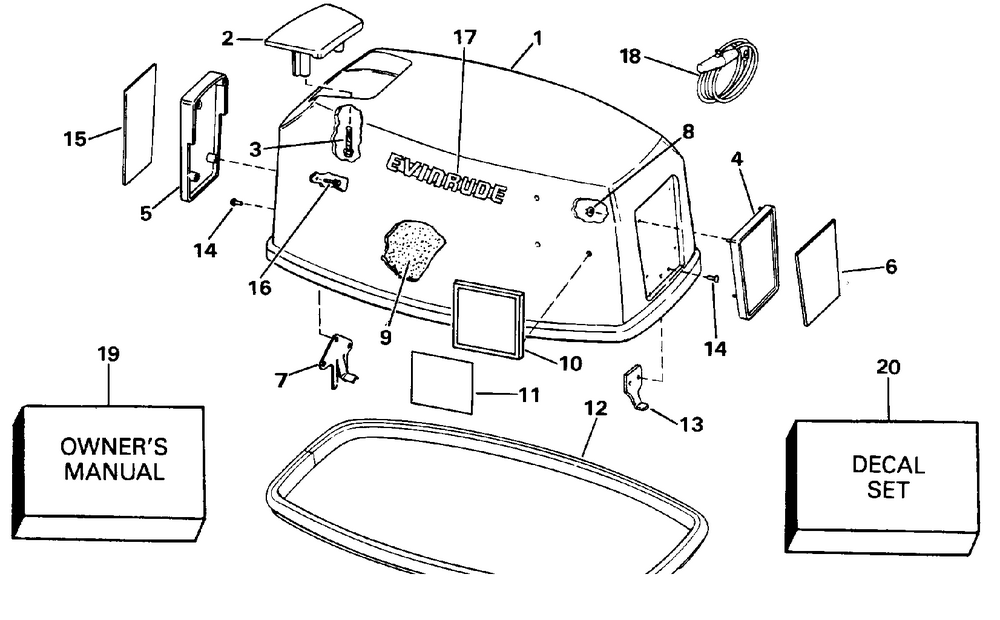

Diagram PCA1079G 696
https://cdn.datamanager.arinet.com/image/EJP/0761c2ea-773c-413c-9507-f0ad7556f699/Max
1
0284721 ENGINE COVER ASSY. - 50ES, 50TS
0284722 ENGINE COVER ASSY. - 50TL Only
0284724 ENGINE COVER ASSY. - 50JE Only
0284921 ENGINE COVER ASSY. - 40 Models
0284970 ENGINE COVER ASSY. - X50ESL Only

0284721, 0284722, 0284724, 0284921, 0284970



EVINRUDE DECALS

23 0284830 DECAL SET - 40 Models 50TL Only 50JE Only
3 0212497 LENS, Ev. Port & Stbd. 40 Models, 50TL Only, 50JE Only

20 0212769 PLATE, Applique - 40 Models
7 0212270 PLATE, Rear - 40 Models

0284830, 0212497, 0212769, 0212270

20 0212895 PLATE, Front This part replaces 0212771. 50TL Only
7 0212772 PLATE, Rear - 50TL Only

0284830, 0212497, 0212895, 0212771, 0212772

20 0212767 PLATE, Front - 50JE Only
7 0212768 PLATE, Rear - 50JE Only

0284830, 0212497, 0212767, 0212768



23 0284835 DECAL SET - 50ES, 50TS
20 0212895 PLATE, Front - 50ES, 50TS
7 0212896 PLATE, Rear - 50ES, 50TS

0284835, 0212895, 0212896


23 0284923 DECAL SET - X50ESL Only - (See Also E48ESLEDC )
20 0212914 PLATE, Front - X50ESL Only
7 0212915 PLATE, Rear - X50ESL Only

0284923, 0212914, 0212915

This Evinrude 0284923 DECAL SET. X50ESL Only fits the following models:

1996 48HP E48ESLEDC,
1997 35HP E50JEUC (JET)
1997 40HP BE40EEUC, BE40ELEUC, BE40TLEUC, BJ40EEUC, E40ELEUC, E40REUC, E40RLEUC, E40TEEUC, E40TELEUC, E40TLEUC, E40TTLEUC, HE40REUC, HE40RLEUC,
1997 50HP BE50RLEUC, BE50TLEUC, BE50TSLEUS, E50ESLEUR, E50TLEUC, E50TSLEUS,
1998 40HP BE40EECR, BE40ELECR, BE40TLECR, E40ELECR, E40RECR, E40RLECR, E40TEECR, E40TELECR, E40TLECR, E40TTLECR,
1998 50HP BE50ESECC, BE50RLECR, BE50TLECR, BE50TSLECC, E50ESLECC, E50TLECR, E50TSLECC,


ENGINE COVER - EVINRUDE - ROPE START ONLY

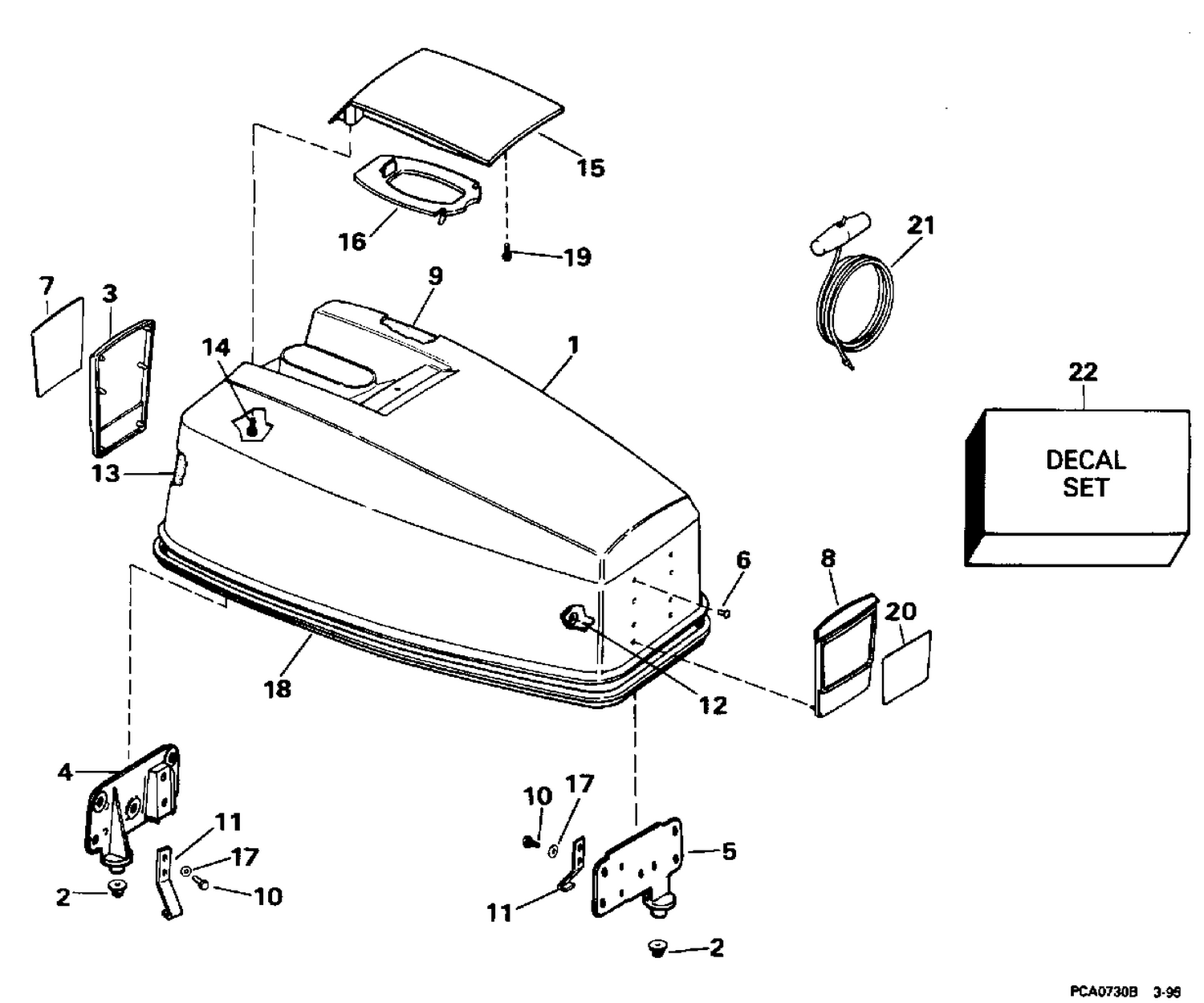

Diagram PCA0733B 1-96
https://cdn.datamanager.arinet.com/image/EJP/3e15d7ac-334b-44eb-80ea-85a16342e89b/Max

0284797 ENGINE COVER ASSY. - 40RL Only
0284922 ENGINE COVER ASSY. - 50RL Only

16 0212478 APPLIQUE, Ev., port & stbd

17 0284834 DECAL SET - 40RL Only
17 0284924 DECAL SET - 50RL Only

Read more: EVINRUDE 1997 50 - E50ESLEUR

1997 EVINRUDE/JOHNSON 115 ENGINE COVER

JOHNSON 1997 115 XJ115HLEUA

ENGINE COVER - JOHNSON


ENGINE COVER - JOHNSON Diagram PCA1083C 3-95

0438775 ENGINE COVER ASSY., 90
0438776 ENGINE COVER ASSY., 115

0438782 ENGINE COVER ASSY., 90 -  XJ Prefix Models Only
0438783 ENGINE COVER ASSY., 115 - XJ Prefix Models Only

13 0331856 APPLIQUE, Front

0438775, 0438776, 0438782, 0438783, - 0284939, 0284941, 0284940, 0284942,
0438775 0438776 0438782 0438783 - 0284939 0284941 0284940 0284942

13 0331856 APPLIQUE, Front


18 0438779 DECAL SET, 90

18 0438780 DECAL SET, 115

18 0437766 DECAL SET XJ Prefix Models Only
17 0343683 PLATE, Front & rear, 90 XJ Prefix Models Only
17 0343684 PLATE, Front & rear, 115 XJ Prefix Models Only

0437766, 0331856,0343683 90 XJ Prefix Models Only
0437766 0331856 0343683
0437766, 0331856, 0343684 115 XJ Prefix Models Only
0437766 0331856 0343684

MIDSECTION

102 0342192 DECAL, Exhaust housing



ENGINE COVER - EVINRUDE


0284939 ENGINE COVER ASSY., 90
0284941 ENGINE COVER ASSY., 90
0284940 ENGINE COVER ASSY., 115
0284942 ENGINE COVER ASSY., 115

0284939, 0284941, 0284940, 0284942,
0284939 0284941 0284940 0284942


13 0331856 APPLIQUE, Front
18 0343683 PLATE, Front & rear, 90
18 0343684 PLATE, Front & rear, 115

20 0284943 DECAL SET, 90
20 0284944 DECAL SET, 115
20 0284845 DECAL SET



This Johnson 0437766 DECAL SET. White Engine Cover fits the following models:

1995 Johnson 88HP J88TSLEOC, XJ88TSLEOC,
1996 Johnson 88HP J88TSLEDR, XJ88TSLEDR,

1997 Johnson 90HP J90TSLEUA, XJ90TSLEUA,
1998 Johnson 90HP J90TSLECM, XJ90TSLECM,

1996 Johnson 112HP J112TSLEDR, J112TSXEDR, XJ112TSLEDR, XJ112TSXEDR,
1995 Johnson 112HP J112TSLEOC, J112TSXEOC, XJ112TSLEOC, XJ112TSXEOC,

1997 Johnson 115HP J115TSLEUA, J115TSXEUA, XJ115HLEUA, XJ115HXEUA,
1998 Johnson 115HP J115TSLECM, J115TSXECM, XJ115HLECM, XJ115HXECM,

2007 Evinrude 150 HP "BLUE" - HL models

1 0285632 ENGINE COVER Assy, "BLUE" - HL models.

285630 — ENGINE COVER ASSY, "BLUE" PL MODELS.
0285630 - UMC AY 6V6 GE BLU

285632 — ENGINE COVER AY, "BLUE" DHL MODELS ONLY
0285632 - UMC AY,150-HO BLU - Upper Motor Cover Assembly, 150-HO Blu

285631 — ENGINE COVER ASSY, "WHITE"
0285631 - L/P 1152.90

285681 — ENGINE COVER ASSY, "WHITE" HSL MODELS ONLY
0285681 - UMC AY 150HO WHT

EVINRUDE 150hp-200hp Engine Cover 0285632
285630, 0285630, 285632, 0285632, 285631, 0285631, 285681, 0285681,
285630 0285630 285632 0285632 285631 0285631 285681 0285681

2007 150 HP: E150DHLSUC, E150DHLSUF
2008 150 HP: E150DBXSCF, E150DBXSCR, E150DCXSCF, E150DCXSCR, E150DHLSCF, E150DHLSCR, E150DPLSCR, E150DPXSCF, E150DPXSCR, E150DSLSCR, E150HSLSCF, E150HSLSCS
2008 175 HP: E175DCXSCF, E175DCXSCR, E175DPLSCR, E175DPXSCF, E175DPXSCR, E175DSLSCR
2008 200 HP: - (60° V6, 2.6 L): E200DCXSCA, E200DCXSCF, E200DPLSCA, E200DPXSCA, E200DPXSCF, E200DSLSCA

EVINRUDE DECALS USA FLAG

1 0215735 EVINRUDE FLAG - Port. STARS-BL VINTGE
2 0215736 EVINRUDE FLAG - Stbd.
3 0215737 RED STRIPE - Port
4 0215738 RED STRIPE - Stbd
5 0215666 EVINRUDE - Front
5 0215536 EVINRUDE - Rear
6 0215741 E-TEC - Port & Stbd. 2 Submit
7 0215748 150 H.O. - Front & Rear 2 Submit

0215735, 0215736, 0215737, 0215738, 0215666, 0215536, 0215741, 0215748

8 0352505 BRP Logo - Front & Rear.  2 Submit
9 0215558 EU 2006 - Lower
NS 0215774 3-Star.

2007 E150DHLSUC, E150DHLSUF
2008 E150DHLSCF, E150DHLSCR, E150HSLSCF, E150HSLSCS

Evinrude/Johnson - 1982 - 4.5/7.50 HP


https://cdn.datamanager.arinet.com/image/EJP/017ee35c-9091-4f49-a7bd-d038e47d22b5/Max

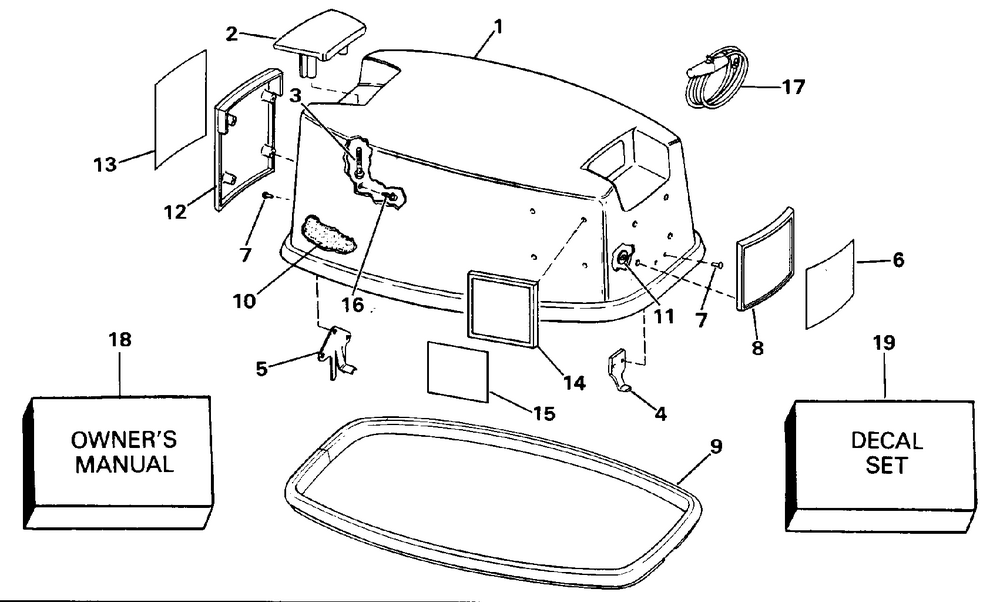

MOTOR COVER, JOHNSON MODELS 7.5 Diagram 017ee35c-9091-4f49-a7bd-d038e47d22b5




0281723 MOTOR COVER ASSY.,Evinrude (4.5)
0281727 MOTOR COVER ASSY.,Evinrude (7.5)
0281741 MOTOR COVEER ASSY.,Evinrude (SRL model only)(7.5)

0391587 MOTOR COVER ASSY., Johnson (4.5)
0391334 MOTOR COVER ASSY., Johnson (7.5)
0392187 MOTOR COVER ASSY., Johnson (SRL model only)(7.5)



0281723, 0281727, 0281741, 0391587, 0391334, 0392187
0281723 0281727 0281741 0391587 0391334 0392187


EVINRUDE DECALS

0281855 DECAL SET, Evinrude (4.5)
0281856 DECAL SET, Evinrude (4.5)
0281875 DECAL SET, Evinrude (SRL model only)(7.5) J8RLCNR


JOHNSON DECALS

0392359 DECAL SET, Johnson (4.5)
0392360 DECAL SET, Johnson (4.5)
0392364 DECAL SET, Johnson (7.5)
0392365 DECAL SET, Johnson (SRL only) (7.5)


PAINT

ES NO PAINT SPRAY 1 QT. CAN
209 PRIMER 172757 376015
391 WHITE 172748 385300
1643 BLUE 173547 281262
1678 IVORY 173744 392036

Read more: Evinrude/Johnson - 1982 - 4.5/7.50 HP
