> Mercury Marine [Updated: Nov. 30, 2021] > Outboard > 2 Stroke Carb > 50, 500 (4 CYL.) > ARCHIVE CAT 56972 > MERC 500

MERC 500
SERIAL NUMBER
500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CAN 2742142 THRU 7051982
500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USA 2858814 THRU 4140999
500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2863739 THRU 8029514
500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BEL 9001581 THRU 9082513

TOP COWL ASSEMBLY

2117-3916 TOP COWL (MANUAL)
2117-3903 TOP COWL (ELECTRIC)

COWLING AND FRONT COVER

2104-2654A21 COWL FRONT COVER ASSEMBLY
                       UNITED STATES 2858814 THRU 3235062
                       AUSTRALIA 2863739 THRU 3015353
                       CANADA 2742142 THRU 3015453

2104-2654A24 COWL FRONT COVER ASSEMBLY
                       UNITED STATES 3008819 THRU 3235062
                       AUSTRALIA 3015354 THRU 3244337
                       CANADA 3015454 THRU 3243512

2104-2654A28 COWL FRONT COVER ASSEMBLY
                       UNITED STATES 3235063 AND UP
                       AUSTRALIA 3244338 AND UP
                       BELGIUM 9001581 AND UP
                       CANADA 3243513 AND UP

10 2118-3247A3 WRAP AROUND COWL ASSEMBLY

3916, 3903, 2654A21, 2654A24, 2654A28, 3247A3
3916 3903 2654A21 2654A24 2654A28 3247A3

37-56521A1 DECAL SET  - (1970)
                       UNITED STATES 2858814 THRU 3235062
                       AUSTRALIA 2863739 THRU 3015353
                       CANADA 2742142 THRU 3015453

37-56521A2 DECAL SET  - (1971)
                       UNITED STATES 3008819 THRU 3235062
                       AUSTRALIA 3015354 THRU 3244337
                       CANADA 3015454 THRU 3243512

37-61023A72 DECAL SET  - (1972)
                       UNITED STATES 3235063 THRU 3478002
                       AUSTRALIA 3244338 THRU 3352806
                       BELGIUM 9001581 THRU 9006163
                       CANADA 3243513 THRU 3352754

37-61023A73 DECAL SET  - (1973)
                       UNITED STATES 3478003 THRU 3816307
                       AUSTRALIA 8004785 THRU 8015989
                       BELGIUM 9006164 THRU 9047653
                       CANADA 7007358 THRU 7030747

37-65765A74 DECAL SET  - (1974)
                       UNITED STATES 3816308 AND UP
                       AUSTRALIA 8015900 AND UP
                       BELGIUM 9047654 AND UP
                       CANADA 7030748 AND UP

> Mercury Marine [Updated: Nov. 12, 2021] > Outboard > 2 Stroke Carb > 140 (6 CYL.) > ARCHIVE CAT 83876 > 140 HORSEPOWER
140 . . . . . . SERIAL NUMBER USA 5088444 THRU 5443029
140 . . . . . . SERIAL NUMBER 8055605 THRU 8062459

> Mercury Marine [Updated: Nov. 12, 2021] > Outboard > 2 Stroke Carb > 140 (6 CYL.) > ARCHIVE CAT 84518 > 140 HORSEPOWER
140 . . . . . . SERIAL NUMBER USA 5443030 AND UP

TOP COWL DIAGRAM

TOP COWL AND SUPPORT BRACKETS Diagram 84979-4
6392 TOP COWL (WITHOUT DECALS)

COWLING AND FRONT COVER Diagram 84979-6
1)  6497A2 FRONT COVER ASS’Y (W/O DECALS)
11) 6498A3 WRAP AROUND COWL ASSEMBLY (W/O DECALS)

6392, 6497A2, 6498A3
6392 6497A2 6498A3

MARINER DECALS

37- 77989A78 DECAL SET UNITED STATES 5364704 AND BELOW
37- 87134A79 DECAL SET UNITED STATES 5264705 AND UP

Serial Number: 05443491 - Model: 7140629 - Model Version: ELPT
1979 MARINER 140 ELPT

> Mercury Marine [Updated: Oct. 6, 2021] > Sterndrive > Drives > M8 Drive > [0M964870 & Up] - Cat.# 90-8M0056798

Transom Plate Inner and Outer Cowl Diagram 62161

9 8M0050504 COWL ASSEMBLY Transom

10 8M0048295 DECAL M Series
10 8M0121133 DECAL Mercury
10 8M8020346 DECAL NXT

Upper Housing Assembly Diagram 57400

4 8M8025198 UPPER HOUSING ASSEMBLY

11 8M0048296 DECAL M8 Drive ORDER 2
11 8M0121129 DECAL M-Icon Large Race [0M975591] & Up ORDER 2

8M0121133 8M0048296 8M0121129
8M0121133, 8M0048296, 8M0121129,

> Mercury Marine [Updated: Oct. 1, 2021] > Sterndrive > Drives > SSM VI > [ALL & Up] - USA - Cat.# 90-853693

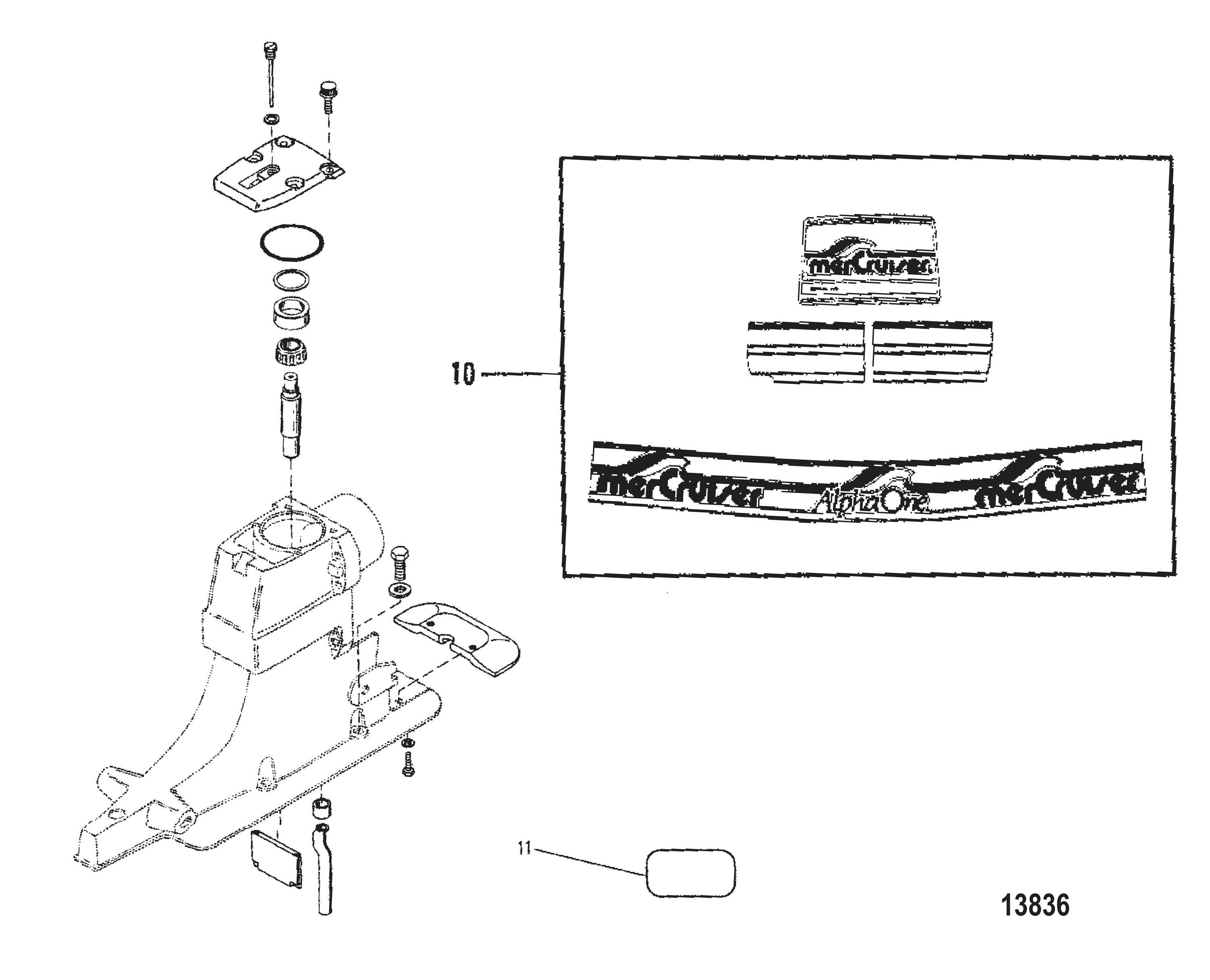

Gimbal Housing Assy Close Couple, (Wet and Dry Sump) Diagram 5598

1 0000 846817A1 PLATE ASSEMBLY Outer

8 847333 EMBLEM MerCruiser - Early Models
8 0037 840359 DECAL Mercury Racing [0M965835] & Below
8 0037 8M0048257 DECAL Mercury Racing [0M965836] & Up

Gimbal Housing Assy Driveline, (Wet and Dry Sump) Diagram 5596

1 846604A1 PLATE ASSEMBLY Outer

8 847333 EMBLEM MerCruiser Early Models
8 0037 840359 DECAL Mercury Racing [0M965835] & Below
8 0037 8M0048257 DECAL Mercury Racing [0M965836] & Up

Inner Transom Plate Dry Sump Six Diagram 5595

1 840358A1 PLATE ASSEMBLY Inner Transom

2 0037 840359 DECAL Mercury Racing [0M965835] & Below
2 0037 8M0048257 DECAL Mercury Racing [0M965836] & Up

Inner Transom Plate Wet-Sump SSM VI and VII (Pre-1998) Diagram 5594

12 0000 849182A1 PLATE ASSEMBLY Inner Transom - Design II

13 0037 840359 DECAL Mercury Racing [0M965835] & Below
13 0037 8M0048257 DECAL Mercury Racing [8M965836] & Up
17 0037 840165 DECAL Oil Filling Instructions
18 0037 849347 DECAL Drive Oil Level

U Joint Housing Dry Sump Six/NXT6 SSM Diagram 40557

1 3524 848236A23 HOUSING ASSEMBLY Driveshaft

7 0037 840359 DECAL Mercury Racing [0M965835] & Below - Order 2
7 8M0048257 DECAL Mercury Racing [0M965836] & Up - Order 2

U Joint Housing Wet Sump SSM VI (Early Style Pre-1998) Diagram 5585

1 3522 846303A1 HOUSING ASSEMBLY Driveshaft

6 0037 846655 DECAL (Warning)
8 847333 EMBLEM MerCruiser

U Joint Housing Wet Sump SSM VI (Late Style Pre-1998) Diagram 5586

1 3524 848236A13 HOUSING ASSEMBLY Driveshaft
6 847333 EMBLEM MerCruiser - Order 2

U Joint Housing Wet Sump SSM VII (Pre-1998) Diagram 5587

1 3524 847212A12 HOUSING ASSEMBLY Driveshaft
6 847333 EMBLEM MerCruiser - Order 2

Paint Color Chart (Dry Sump)

• Dandy Candy Red Metallic -   PPG DEL FLEET # FDGH77111 -    Primer DP90LF - Catalyst DP401LF
• Red Non-Metallic -                PPG DEL FLEET # FDGH707710 -  Primer DP90LF - Catalyst DP401LF
• Joyze Poypole Metallic -         PPG DEL FLEET # FDGH502416 -  Primer DP90LF - Catalyst DP401LF
• Hulkin Green Pearl -              PPG DEL FLEET # FDGH918116 -  Primer DP48LF - Catalyst DP401LF
• Fire Orange -                        PPG DEL FLEET # FDGH915041 -  Primer DP48LF - Catalyst DP401LF
• Nanner Yellow -                     PPG DEL FLEET # FDGH915040 -  Primer DP48LF - Catalyst DP401LF
• Slate Gray Metallic -               PPG DEL FLEET # FDGH303310 -  Primer DP40LF - Catalyst DP401LF
• Raven Black Non-Metallic -      PPG DEL FLEET # FDGH9000 -     Primer DP90LF - Catalyst DP401LF
• Super Silver Metallic -             PPG DEL FLEET # FDGH301810 - Primer DP40LF - Catalyst DP401LF
• Mercury Racing Blue Metallic - PPG DEL FLEET # FDGH19281 -    Primer DP90LF - Catalyst DP401LF
• Bling-Bling Black Metallic -      PPG DEL FLEET # FBC918828 -    Primer DP90LF - Catalyst DP401LF
• Soft White -                           PPG DEL FLEET # FDGH92115 -   Primer DP48LF - Catalyst DP401LF

Read more: Sterndrive - Drives - SSM SIX/NXT1 SSM/SSM SEVEN/DRY SUMP SIX [ALL & Up] - USA - Cat.# 90-853693
