> Mercury Marine [Updated: May. 25, 2021] > Outboard > 4 Stroke > 300 HP 4.6L V8 > [2B529482 & Up] - USA - Cat.# 90-8M0142572

TOP COWL DIAGRAM 68739

8M0142172 TOP COWL ASSEMBLY Black
+ 8M0182323 COWL TOP BLACK
8M0142174 TOP COWL ASSEMBLY Cold Fusion
8M0142175 TOP COWL ASSEMBLY Warm Fusion
8M0142176 TOP COWL ASSEMBLY Pearl Fusion
8M0142177 TOP COWL ASSEMBLY Decaled without Horsepower SeaPro

8M0142172, 8M0182323, 8M0142174, 8M0142175, 8M0142176, 8M0142177
8M0142172 8M0182323 8M0142174 8M0142175 8M0142176 8M0142177

 > Mercury Marine [Updated: Jun. 21, 2025] > Outboard > 4 Stroke EFI > 250 HP 4.6L V8 > [2B529482 & Up] - USA - Cat.# 90-8M0142572 > Decals

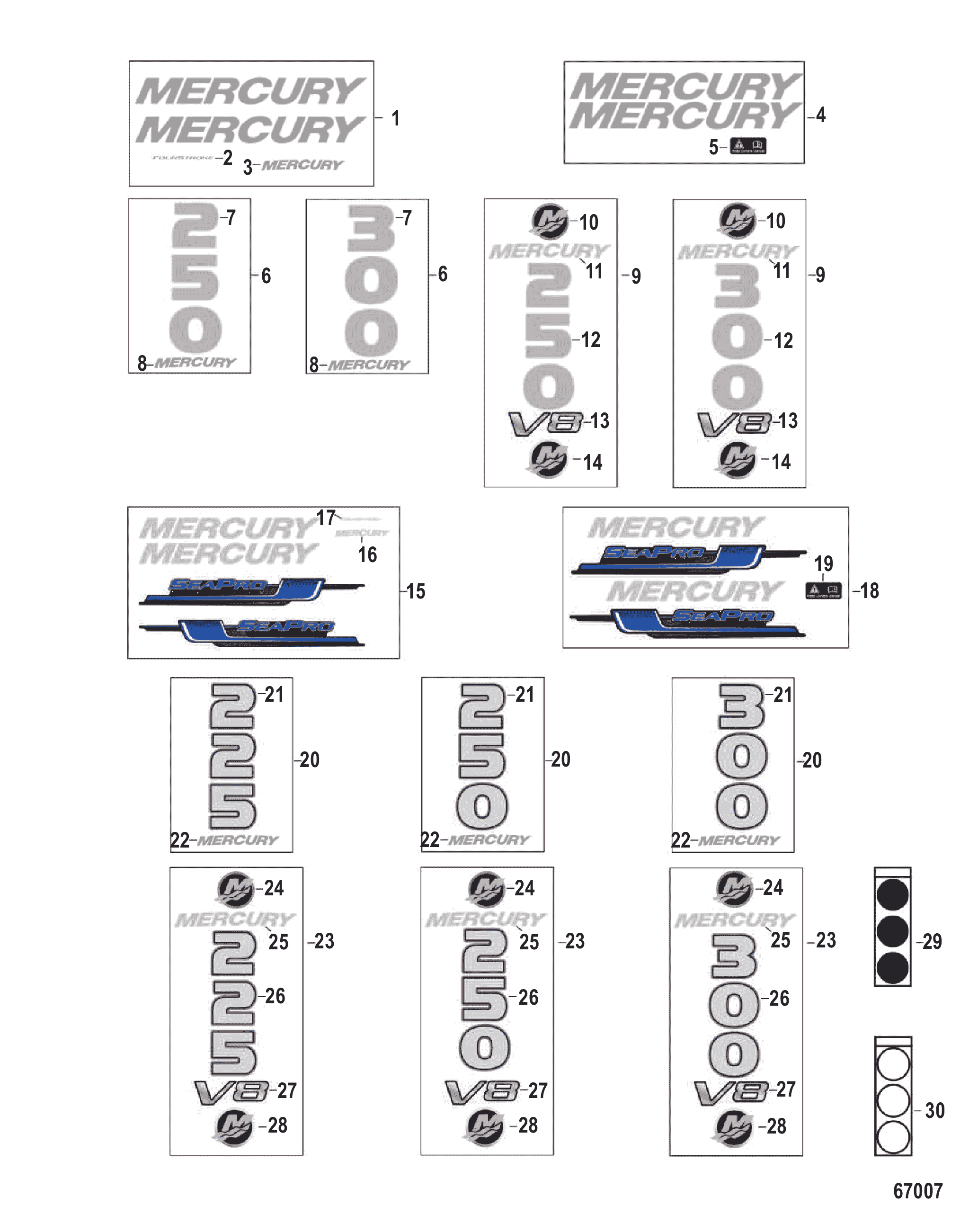

DECALS Diagram 67007

1. 8M0142184 – DECAL SET Mercury
2. 8M0214839 – DECAL Fourstroke
3. 8M0153042 – DECAL Mercury, Silver

4. 8M0214843 – DECAL SET Mercury
5. 8M0142577 – DECAL Read Manual, Clear
5. 8M0142371 – DECAL Read Manual, Black

6. 8M0142192 – DECAL 250 HP
7. 8M0217483 – DECAL 250
6. 8M0142193 – DECAL 300 HP
7. 8M0217484 – DECAL 300
8. 8M0153042 – DECAL Mercury, Silver

10. 8M0043705 – DECAL M-Icon, 60 MM Black Front (Mercury and SeaPro)
11. 8M0153042 – DECAL Mercury, Silver
9. 8M0214852 – DECAL 250 HP Required for Top Cowl Replacement
12. 8M0217483 – DECAL 250

9. 8M0214853 – DECAL 300 HP Required for Top Cowl Replacement
12. 8M0217484 – DECAL 300
13. 8M0214842 – DECAL V8
14. 8M0043703 – DECAL M-Icon, 66 MM, Black Rear (Mercury and SeaPro)

15. 8M0142185 – DECAL SET Sea Pro
16. 8M0153042 – DECAL Mercury, Silver
17. 8M0214839 – DECAL Fourstroke

SEA PRO DECALS

18. 8M0214847 – DECAL SET SeaPro
19. 8M0142371 – DECAL Read Manual, Black

20. 8M0142195 – DECAL 225 HP SeaPro
21. 8M0217485 – DECAL 225 SeaPro

20. 8M0142196 – DECAL 250 HP SeaPro
21. 8M0217486 – DECAL 250 SeaPro

20. 8M0142197 – DECAL 300 HP SeaPro
21. 8M0217487 – DECAL 300 SeaPro
22. 8M0153042 – DECAL Mercury, Silver

24. 8M0043705 – DECAL M-Icon, 60 MM Black Front (Mercury and SeaPro)
25. 8M0153042 – DECAL Mercury, Silver
23. 8M0214855 – DECAL 225 HP SeaPro Required for Top Cowl Replacement
26. 8M0217485 – DECAL 225 SeaPro

23. 8M0214856 – DECAL 250 HP SeaPro Required for Top Cowl Replacement
26. 8M0217486 – DECAL 250 SeaPro

23. 8M0214857 – DECAL 300 HP SeaPro Required for Top Cowl Replacement
26. 8M0217487 – DECAL 300 SeaPro

27. 8M0214842 – DECAL V8
28. 8M0043703 – DECAL M-Icon, 66 MM, Black Rear (Mercury and SeaPro)

29. 8M0187221 – DECAL 3D Circles, Black
30. 8M0187223 – DECAL 3D Circles, White

> Mercury Marine [Updated: May. 25, 2021] > Outboard > 4 Stroke > 300 HP 4.6L V8 > [2B529482 & Up] - USA - Cat.# 90-8M0142572

DECALS Diagram 67007

1 8M0142184 DECAL SET Mercury
2 8M0142192 DECAL 250 HP
3 8M0142193 DECAL 300 HP
4 8M0153042 DECAL Mercury, Silver
5 8M0043705 DECAL M-Icon, 60 MM Black Front (Mercury and SeaPro)
6 8M0043703 DECAL M-Icon, 66 MM, Black Rear (Mercury and SeaPro)
7 8M0142185 DECAL SET Sea Pro
8 8M0142195 DECAL 225 HP SeaPro
9 8M0142196 DECAL 250 HP SeaPro
10 8M0142197 DECAL 300 HP SeaPro
11 8M0153042 DECAL Mercury, Silver

Serial Number: 3B011744 - Model: 13000014A - Model Version: XL 4
MERCURY 300XL DTS 5.44" 1.75 300EFI XL 4

Model Number
13000014A
Serial Number
3B011744
300XL
HP 300 KW 221
LB 538 KG 244
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign componentsCE 0098

Serial Number: 3B430867 Model: 12500013A
MERCURY 250XL DTS 5.44" 1.75 250EFI XL 4

250 HP 4.6L V8 - [2B529482 & Up] - USA - Cat. # 90-8M0142572
300 HP 4.6L V8 - [2B529482 & Up] - USA - Cat. # 90-8M0142572
225 HP 4.6L V8 SeaPro - [2B529482 & Up] - USA - Cat. # 90-8M0142572
250 HP 4.6L V8 SeaPro - [2B529482 & Up] - USA - Cat. # 90-8M0142572
300 HP 4.6L V8 SeaPro - [2B529482 & Up] - USA - Cat. # 90-8M0142572
