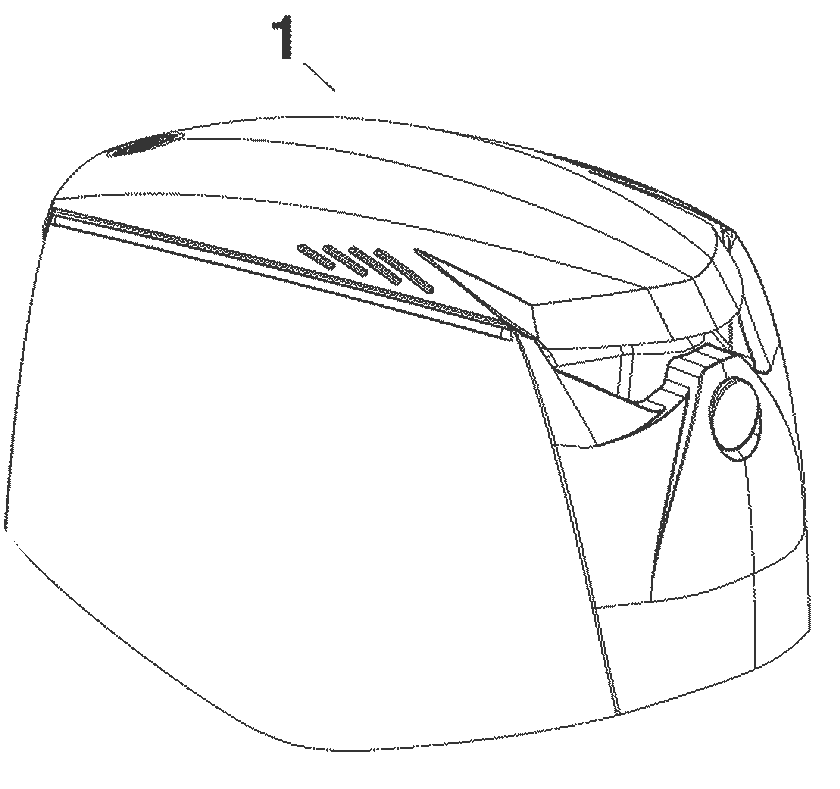

01-2_ENGINE COVER

• 1) 0285813 - ENGINE COVER ASSEMBLY, Blue | Includes all decals, except "HP" Decal
• 1) 0285814 - ENGINE COVER ASSEMBLY, White | Includes all decals, except "HP" Decal

0285813, 0285814

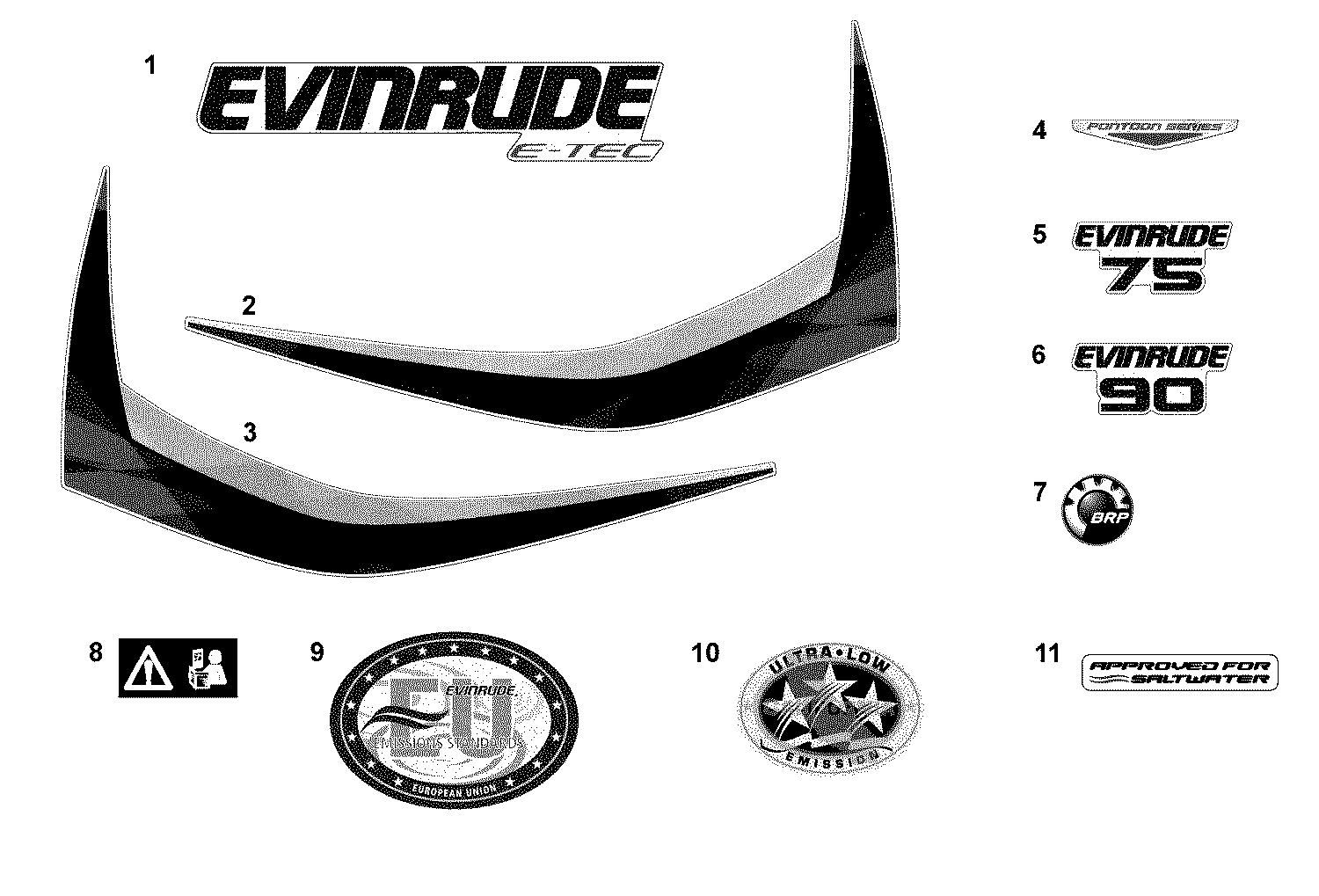

01-1_DECALS

• 1) 0216438 - EVINRUDE E-TEC - Port & Starboard | Blue Models
• 1) 0216443 - EVINRUDE E-TEC - Port & Starboard | White Models
• 2) 0216403 - DECAL, Stripe - Port | Blue Models
• 2) 0216408 - DECAL, Stripe - Port | White Models
• 3) 0216404 - DECAL, Stripe - Starboard | Blue Models
• 3) 0216409 - DECAL, Stripe - Starboard | White Models
• 4) 0216515 - DECAL, "Pontoon Series" | E90SNL, E90SL only
• 5) 0216473 - EVINRUDE 75 HP - Blue (front & rear)
• 5) 0216407 - EVINRUDE 75 HP - White (front & rear)
• 6) 0216406 - EVINRUDE 90 HP - Blue (front & rear)
• 6) 0216410 - EVINRUDE 90 HP - White (front & rear)
• 7) 0352506 - BRP LOGO | Included with "ENGINE COVER ASSEMBLY"
• 8) 0355633 - DECAL, Owner Attention
• 9) 0216969 - EU, RCD II Compliant – Lower (Replaces 0215558)
• 9) 0215558 - EU, RCD II Compliant – Lower
• 10) 0215774 - 3 Star | See Administrative Bulletin 2004-02(A) for order requirements
• 11) 0215896 - APPROVED FOR SALTWATER
• — 0357275 - DECAL, Max fill level | Pontoon Series only, see "OIL TANK & PUMP"

0216438, 0216443, 0216403, 0216408, 0216404, 0216409, 0216515, 0216473, 0216407, 0216406, 0216410, 0352506, 0355633, 0216969, 0215558, 0215774, 0215896, 0357275

00_PAINT

• 0777172 - Apprêt | Midsection & Gearcase
• PRIMER (Gray) | Use for white engines
• PRIMER (Black) | Use for blue engines
• 0777179 - Black | Engine cylinder/crankcase
• 0351066 - Black (Military) | Exhaust Housing & Gearcase
• BLACK (Military) | Plastic Engine Covers
• 0777171 - Blanc | Base coat
• 0772414 - Use with base coat on upper & lower engine covers
• 772414 - Use with base coat on upper & lower engine covers
• 0351907 - BLEU (Evinrude E-TEC) | Base coat
• SILVER METALLIC (Full Moon) | Base coat for top cap, H.O. models
• 0777177 - Graphite | Base coat
• 0351061 - Green | Base coat

E90DPLABA
