Force > 120 H.P. (1998-1999) - ARCHIVE CAT 855376R2

 > Mercury Marine [Updated: Feb. 18, 2023] > Outboard > Force > 120 H.P. (1998-1999) > ARCHIVE CAT 855376R2

FORCE 120 H.P.
(1998-1999)
SERIAL NUMBER
120 H.P. (1998) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0E288000 THRU 0E344999
120 H.P. (1999) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0E345000 THRU 0E369299

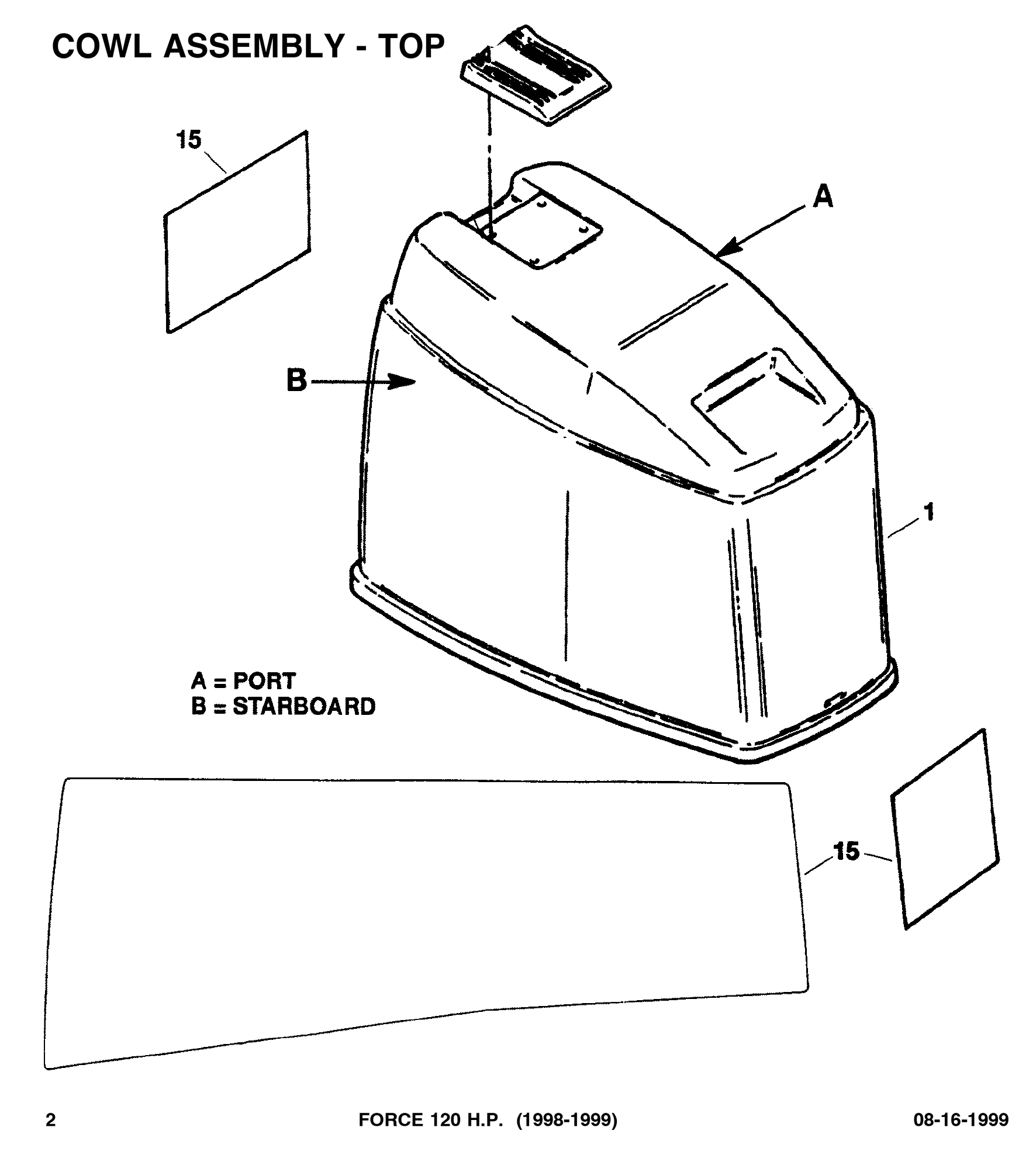

COWL ASSEMBLY - TOP Diagram 855376r2-4
1) 100- 819747A9 COWL ASSEMBLY-TOP (PAINTED) (WITHOUT DECALS)


15) 37- 855399A98 DECAL SET (FORCE) (FRONT-REAR-PORT-STARBOARD STYLE)
NS) 37- 852954A97 DECAL SET (TRACKER) (FRONT AND WRAPAROUND STYLE) (SERIAL # 0E288000 THRU 0E357646)
37- 803911A99 DECAL SET (TRACKER) (FRONT-REAR-PORT-STARBOARD STYLE) (SERIAL # 0E357647 THRU 0E369299)

26) 37- 818029--1 DECAL-FUEL MIX

IGNITION COMPONENTS
35) 37- 819526 DECAL-THROTTLE CABLE ADJUSTMENT
5) 37- 825149A1 DECAL KIT-SHIFT TO NEUTRAL


STARTER ASSEMBLY
NS) 37- 825064 DECAL-CAUTION-START IN GEAR
37- 827282--2 DECAL-WARNING-HI VOLTAGE

CYLINDER BLOCK ASSEMBLY
40) 37- 855577-20 DECAL-EPA LABEL INFO (APPLIED TOP OF BLOCK NEAR EXHAUST COVER) (SEE NOTE #2) (SERIAL # 0E288000 THRU 0E344999)
37- 856985-17 DECAL-EPA LABEL INFO (APPLIED TOP OF BLOCK NEAR EXHAUST COVER) (SEE NOTE #2) (SERIAL # 0E345000 THRU 0E369299)



1977 MERCURY 45, 4.5 HP (1 CYL.) 2 Stroke Carb - ARCHIVE CAT 69972 - MERC 4.5

 > Mercury Marine [Updated: Feb. 17, 2023] > Outboard > 2 Stroke Carb > 4.5 (1 CYL.) > ARCHIVE CAT 69972 > MERC 4.5

MERC 4.5
SERIAL NUMBER

45, 4.5 (1 CYL.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USA 4107220 THRU 5595531 (1977)
45, 4.5 (1 CYL.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CAN 7045758 THRU 7147237
45, 4.5 (1 CYL.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8026540 THRU 8068064
45, 4.5 (1 CYL.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BEL 9072179 THRU 9258280

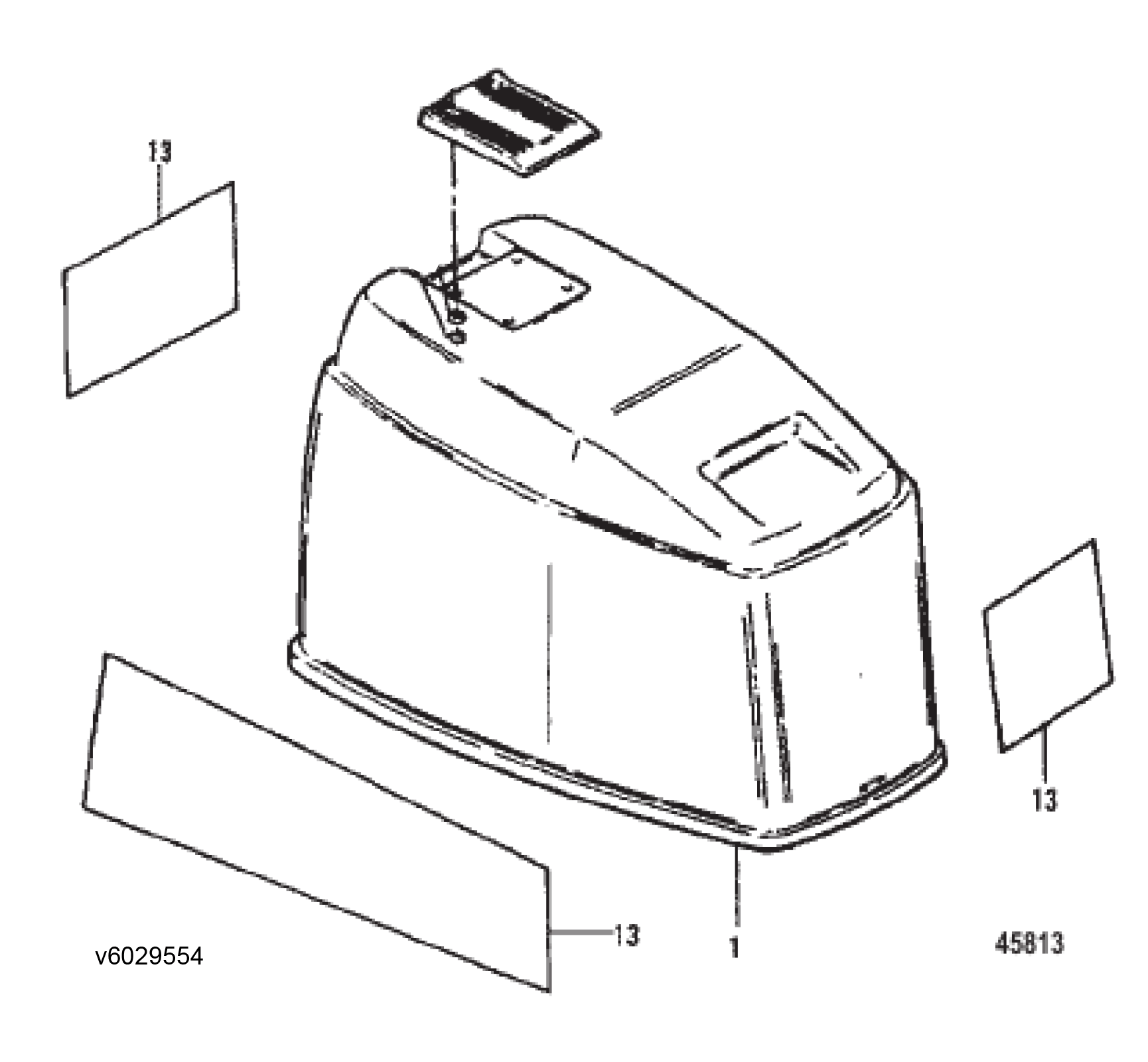

TOP COWL DIAGRAM  arch-69972-4


1
191- 5231A4 TOP COWL ASSEMBLY
UNITED STATES 4597261 AND BELOW
AUSTRALIA 8044349 AND BELOW
BELGIUM 9139799 AND BELOW
CANADA 7091997 AND BELOW

191- 6189A2 TOP COWL ASSEMBLY
UNITED STATES 4597262 AND UP
AUSTRALIA 8044350 AND UP
BELGIUM 9139800 AND UP
CANADA 7091998 AND UP



191-5231A4 , 191-6189A2,5231A4 , 6189A2,



MERCURY DECALS

- 37- 70645A75 DECAL SET - SERIAL GROUP #3
- 37- 73919A76 DECAL SET - SERIAL GROUP #7
- 37- 76900A77 DECAL SET - SERIAL GROUP #12 (1977)
- 37- 78615A78 DECAL SET - SERIAL GROUP #16
- 37- 86414A79 DECAL SET - SERIAL GROUP #15

OTHER DECALS
4 66394A1 HANDLE ASSEMBLY, THROTTLE SHAFT (throttle decal)


Serial Number: 4759641
1977 MERCURY 45, 4.5 HP (1 CYL.) 2 Stroke Carb
(MERCURY MARINE)
MERCURY MARINE
DIVISION OF BRUNSWICK CORP.
FOND DU LAC, WIS. 54935 U.S.A.
- OPERATION -
TROLL
1. USE RECOMMENDED GASOLINE AND OILS.
2-OPEN TANK VENT.
3. CONNECT FUEL LINE AND PRIME WITH BULB.
4. PLACE SHIFT LEVER IN NEUTRAL.
5. PLACE THROTTLE IN START POSITION.
SERIAL NO. [ 4759641 ]
6. PULL STARTER ROPE, IF MOTOR IS COLD USE CHOKE.
7. PRESS STOP BUTTON OR CHOKE TO STOP.
8. SHIFT GEARS ONLY WITH MOTOR RUNNING.
9. DISCONNECT FUEL LINE WHEN NOT IN USE

175/200/225 HP 3.4L V6 SeaPro - [2B529482 & Up] USA Cat. # 90-8M0142637 - V3 (2023)

> Mercury Marine [Updated: May. 4, 2024] > Outboard > 4 Stroke > 225 HP 3.4L V6 > [2B529482 & Up] - USA - Cat.# 90-8M0142637
> Mercury Marine [Updated: Oct. 16, 2023] > Outboard > 4 Stroke > 200 HP 3.4L V6 > [2B529482 & Up] - USA - Cat.# 90-8M0142637
ERRORS DETECTED ON PARTS BOOK SYSTEM FROM MERCURY - CHECK UPDATES - see Diagrams numerals

Top Cowl Diagram 68527

8M0142178 TOP COWL ASSEMBLY Black, Decaled without Horsepower
+ 8M0182315 COWL TOP BLACK
8M0142180 TOP COWL ASSEMBLY Cold Fusion, Decaled without Horsepower
+ 8M0182316 COWL TOP CLD FSN
8M0142181 TOP COWL ASSEMBLY Warm Fusion, Decaled without Horsepower
+ 8M0182317 COWL TOP WM FSN
8M0142182 TOP COWL ASSEMBLY Pearl Fusion, Decaled without Horsepower
8M0142183 TOP COWL ASSEMBLY Sea Pro Decaled without Horsepower
+ 8M0182319 COWL TOP SEA PRO

FIT OTHERS:
1)  8M0142179 TOP COWL ASSEMBLY Pro XS, Decaled without Horsepower
+ 8M0182322 COWL TOP PROXS

8M0142178, 8M0142180, 8M0142181, 8M0142182, 8M0142183, 8M0142179, 8M0182322,
8M0142178 8M0142180 8M0142181 8M0142182 8M0142183 8M0142179 8M0182322

16 8M0148533 DECAL Latch Position



Decals Diagram 67006 V3

1 8M0142184 DECAL SET Mercury
2 8M0214839 DECAL Fourstroke
3 8M0153042 DECAL Mercury, Silver

4 8M0214843 DECAL SET Mercury
5 8M0142577 DECAL Read Manual, Clear
5 8M0142371 DECAL Read Manual, Black

6 8M0142189 DECAL 175 HP - Group
   + 8M0214844 DECAL SET 175 HP
6 8M0142190 DECAL 200 HP - Group
   + 8M0214845 DECAL SET Rear, 200 HP
6 8M0142191 DECAL 225 HP - Group
   + 8M0214846 DECAL 225 HP

7 8M0217478 DECAL 175 (Emblems)
7 8M0217479 DECAL 200 (Emblems)
7 8M0217479 DECAL 200 they mean to say- 8M0217480 DECAL 225 (Emblems)
8 8M0153042 DECAL Mercury, Silver

9 8M0214844 DECAL 175 HP Required for Top Cowl Replacement - Group
9 8M0214845 DECAL 200 HP Required for Top Cowl Replacement - Group
9 8M0214846 DECAL 225 HP Required for Top Cowl Replacement - Group
10 8M0159716 DECAL M Icon, 53 MM - Black Front (Mercury and SeaPro) (Emblems) - by mistake mark as 9-10 is a 10
11 8M0153042 DECAL Mercury, Silver - Per diagram and mix mistake they show 8-10-11 is an 8 or 11
12 8M0217478 DECAL 175 (Emblems)
12 8M0217479 DECAL 200 (Emblems)
12 8M0217480 DECAL 225 (Emblems)
13 8M0214841 DECAL V6 (Emblems)
14 8M0043705 DECAL M-Icon, 60 MM Black - Rear (Mercury and SeaPro) (Emblems)

15 8M0142185 DECAL SET Sea Pro
16 8M0153042 DECAL Mercury, Silver
17 8M0214839 DECAL Fourstroke

18 8M0214847 DECAL SET SeaPro
19 8M0142371 DECAL Read Manual, Black

20 8M0142194 DECAL 200 HP - Sea Pro (HP is a Decal)
21 8M0217481 DECAL 200 SeaPro (HP is a Decal)
22 8M0153042 DECAL Mercury, Silver

23 8M0214848 DECAL 200 HP - Sea Pro Required for Top Cowl Replacement
24 8M0159716 DECAL M Icon, 53 MM Black - Front (Mercury and SeaPro)
25 8M0153042 DECAL Mercury, Silver
26 8M0217481 DECAL 200 SeaPro (HP is a Decal) Group
27 8M0214841 DECAL V6
28 8M0043705 DECAL M-Icon, 60 MM Black - Rear (Mercury and SeaPro)

29 8M0187221 DECAL 3D Circles, Black
30 8M0187223 DECAL 3D Circles, White



Accent Panel V6 outboards

8M0142211 ACCENT COWL ASSEMBLY Redline Red
8M0142212 ACCENT COWL ASSEMBLY Pacific Blue
8M0142213 ACCENT COWL ASSEMBLY Mercury Silver
8M0142214 ACCENT COWL ASSEMBLY Graphite Grey
8M0142215 ACCENT COWL ASSEMBLY Pro Black
8M0142216 ACCENT COWL ASSEMBLY Ready to Paint



LOWER COWL

1) 8M0142217 LOWER COWL ASSEMBLY Black, Port and Starboard
1) 8M0142220 LOWER COWL ASSEMBLY Cold Fusion, Port and Starboard
1) 8M0142221 LOWER COWL ASSEMBLY Warm Fusion, Port and Starboard
1) 8M0142222 LOWER COWL ASSEMBLY Pearl Fusion, Port and Starboard
1) 8M0142217 LOWER COWL ASSEMBLY Black, Port and Starboard
1) 8M0142220 LOWER COWL ASSEMBLY Cold Fusion, Port and Starboard
1) 8M0142221 LOWER COWL ASSEMBLY Warm Fusion, Port and Starboard
1) 8M0142222 LOWER COWL ASSEMBLY Pearl Fusion, Port and Starboard

23) 8M0142228 LOWER FRONT COWL ASSEMBLY Black
23) 8M0142230 LOWER FRONT COWL ASSEMBLY Cold Fusion
23) 8M0142231 LOWER FRONT COWL ASSEMBLY Warm Fusion
23) 8M0142232 LOWER FRONT COWL ASSEMBLY Pearl Fusion

39) 8M0142223 LOWER REAR COWL ASSEMBLY Black
39) 8M0142225 LOWER REAR COWL ASSEMBLY Cold Fusion, White
39) 8M0142226 LOWER REAR COWL ASSEMBLY Warm Fusion
39) 8M0142227 LOWER REAR COWL ASSEMBLY Pearl Fusion

41) 8M0142577 DECAL Read Manual, Clear
41) 8M0142371 DECAL Read Manual, Black


175/200/225 HP 3.4L V6 SeaPro - [2B529482 & Up] USA Cat. # 90-8M0142637

175 HP 3.4L V6 - [2B529482 & Up] - USA - Cat. # 90-8M0142637
200 HP 3.4L V6 - [2B529482 & Up] - USA - Cat. # 90-8M0142637
225 HP 3.4L V6 - [2B529482 & Up] - USA - Cat. # 90-8M0142637
200 HP 3.4L V6 SeaPro - [2B529482 & Up] - USA - Cat. # 90-8M0142637

Serial Number: 3B045536 - Model: 12000001A - Model Version: L 4
2021 MERCURY 200L 4.8" 1.85 200EFI L 4

 > Mercury Marine [Updated: May. 4, 2024] > Outboard > 4 Stroke > 225 HP 3.4L V6 > [2B529482 & Up] - USA - Cat.# 90-8M0142637

Serial Number: 3B135348 - Model: 12250013A - Model Version: XL 4
MERCURY 225XL DTS 4.8" 1.85 225EFI XL 4
